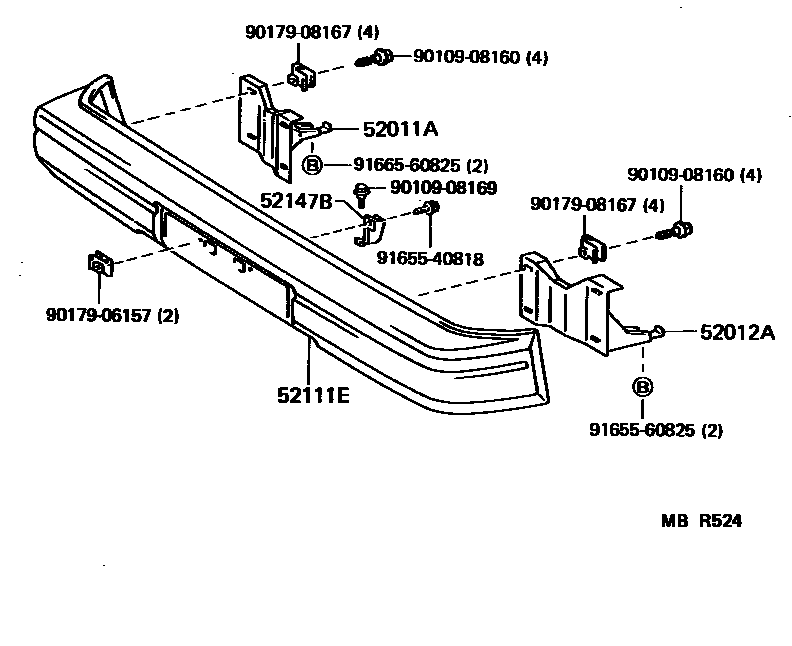

FRONT BUMPER & BUMPER STAY

0001 1 0002 1MALAYSIA SPEC

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-95701iCM36,KM3#,YM3#198808-199108

main52011-95703iCM36,KM3#,YM31..MRF199604-199804

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-95701iCM36,KM3#,YM3#198808-199108

main52012-95703iCM36,KM36,YM31..MRF..5F..GEN199108-199604

52111EBAR, FRONT BUMPER

main52111-95715iCM36..5H;CM36,KM36..SRF;KM30,37,YM30,35;CM36,KM36..MRF..ARL199108-199604

main52111-95719iCM36,KM3#,YM31..MRF199604-199804

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-95702iCM36,KM3#,YM3#198808-199108

9010908160

main90109-08160

9010908169

main90109-08169

9017906157

main90179-06157

9017908167

main90179-08167

9165540818

main91655-40818

9165560825

main91655-60825

9166560825

main91665-60825

11 parts on this diagram · 2 diagrams in section
