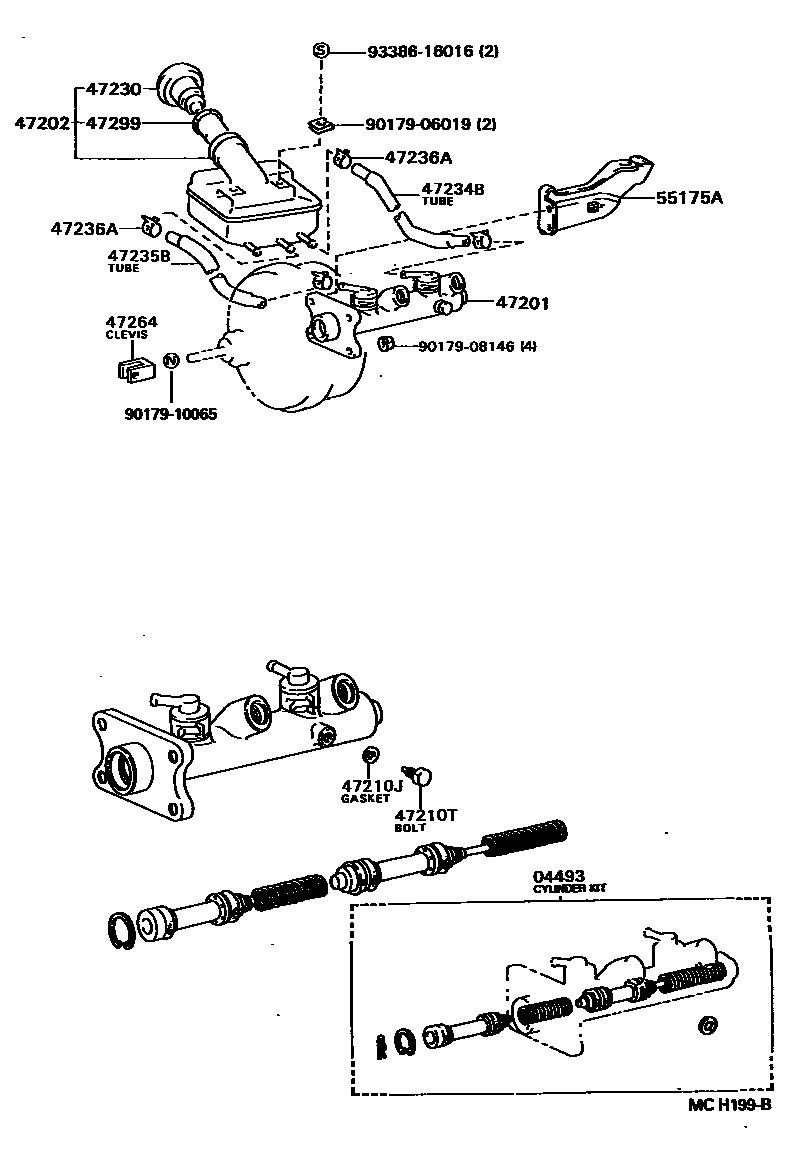

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-27080iCM36,KM3#,YM3#198808-199201

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-27220iCM36,KM36,YM3#..RHD198808-199201

main47201-27230iCM36,KM3#..LHD198808-199804

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-27130iCM36..RHD..GEN;KM36,YM31,35..5F..GEN198808-199804

main47220-27140iKM36..RHD..(4F,4H)..GEN198808-199201

main47220-28100iCM36,YM30,35..5F..ARL198808-199201

main47220-28110iKM36,YM30,35..(4FC,4H)..ARL198808-199201

W(BRAKE WARNING)

main47220-28120iCM36..LHD198808-199201

W(BRAKE WARNING)

main47220-28130iKM36,37..LHD198808-199201

W(BRAKE WARNING)

main47220-28140iCM36..LHD198808-199201

main47220-28150iKM36,37..LHD198808-199201

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCM36,KM3#,YM3#199201-199804

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iCM36,KM3#,YM3#198808-199201

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iCM36,KM3#,YM3#199201-199804

47234BTUBE, RESERVOIR, NO.1

main47234-27120iCM36,KM36,YM3#..RHD198808-199201

main47234-27130iCM36,KM3#..LHD198808-199804

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-27080iCM36,KM36,YM3#199201-199804

main47235-27090iCM36,KM3#..LHD198808-199804

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16002×4iCM36,KM3#,YM3#198808-199201

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iCM36,KM3#,YM3#198808-199311

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iCM36,KM3#,YM3#198808-199201

55175ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-95710iCM36,KM36,YM3#..RHD198808-199804

sub55175-27010

main55175-95711iCM36,KM3#..LHD198808-199804

9017906019

main90179-06019

9017908146

main90179-08146

9017910065

main90179-10065

9338616016

main93386-16016

16 parts on this diagram · 1 diagram in section
