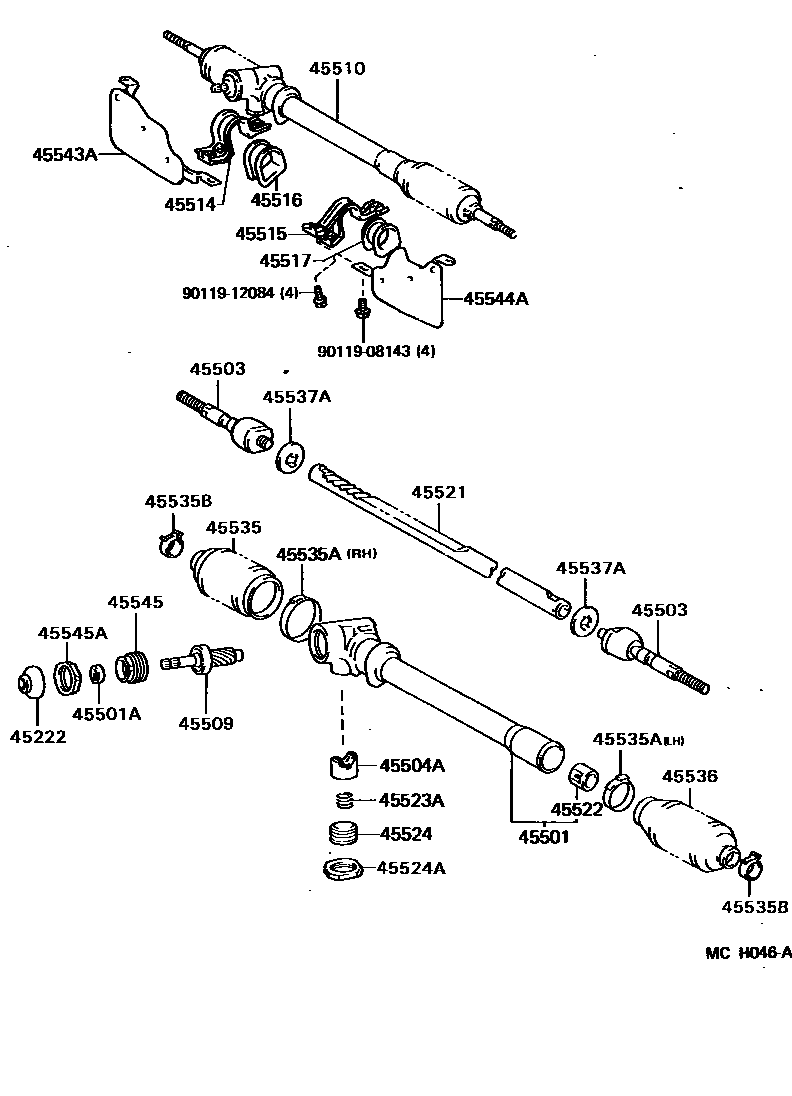

FRONT STEERING GEAR & LINK

0001 1MANUAL STEERING 0002 1MANUAL STEERING 0003 1POWER STEERING 0004 1POWER STEERING 0006 1POWER STEERING 0007 1

45222COVER, STEERING GEAR DUST

main45222-27020iCM36,KM36,YM3#199604-199804

main45222-32010iKM30199604-199804

45501HOUSING SUB-ASSY, STEERING RACK

main45501-27010iCM36,KM36,YM3#..RHD198808-199501

main45501-27011iCM36,KM36,YM3#199501-199804

main45501-27020iCM36,KM3#..LHD198808-199501

main45501-27021iKM30199501-199604

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15002iCM36,KM3#,YM3#198808-199201

45503END SUB-ASSY, STEERING RACK

main45503-29215×2iCM36,KM3#,YM3#198808-199207

main45503-29225×2iYM30198908-199201

W(POWER STEERING)

main45503-29395×2iKM30199604-199804

45504AGUIDE SUB-ASSY, RACK

main45504-27010iCM36,KM3#,YM3#198808-199501

main45504-35020iCM36,KM3#,YM3#199501-199604

45509PINION SUB-ASSY, STEERING

main45509-27010iCM36,KM36,YM3#..RHD198808-199207

main45509-27020iCM36,KM3#..LHD198808-199604

45510GEAR ASSY, STEERING

main45510-27030iCM36,KM36,YM3#199201-199804

main45510-27040iCM36,KM3#..LHD198808-199604

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-28020iCM36,KM3#,YM3#198808-199604

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-28020iCM36,KM3#,YM3#198808-199604

main45515-28030iYM30198908-199008

W(POWER STEERING)

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-27010iCM36,KM3#,YM3#198808-199604

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-27010iCM36,KM3#,YM3#198808-199604

main45517-27020iKM30199604-199804

45521RACK, STEERING

main45521-27010iCM36,KM36,YM3#..RHD198808-199207

main45521-27020iCM36,KM3#..LHD198808-199604

45522BUSH, STEERING RACK

main45522-27010iCM36,KM3#,YM3#199207-199604

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-28010iYM30198908-199604

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-23075iCM36,KM3#,YM3#199201-199604

45524CAP, STEERING RACK GUIDE SPRING

main45524-16030iCM36,KM3#,YM3#198808-199501

main45524-33010iCM36,KM3#,YM3#199501-199604

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main45524-16010iYM30198908-199201

W(POWER STEERING)

main90179-36002iCM36,KM3#,YM3#199201-199604

45535BOOT, STEERING RACK, NO.1

main45535-27020iCM36,KM36,YM3#199604-199804

main45535-28020iKM30199604-199804

45535ACLAMP(FOR STEERING RACK BOOT)

main90460-42001iCM36,KM3#,YM3#199201-199604

BOOT NO.1 SIDE

main90460-56001iCM36,KM36,YM3#199604-199804

BOOT NO.2 SIDE

main90460-64002×2iYM30198908-199201

W(POWER STEERING)

45535BCLIP(FOR STEERING RACK BOOT)

main90467-15017×2iCM36,KM3#,YM3#199201-199604

main90467-19012×2iKM30199604-199804

sub90467-19019

45536BOOT, STEERING RACK, NO.2

main45535-28020iKM30199604-199804

main45536-27020iCM36,KM3#,YM3#199201-199604

45537AWASHER, CLAW(FOR STEERING RACK END LOCK)

main90214-14005×2iCM36,KM36,YM3#199604-199804

45543APROTECTOR, STEERING RACK BOOT, RH

main45057-95700iCM36,KM36,YM3#..RHD198808-199804

main45057-95701iCM36,KM3#..LHD198808-199804

45544APROTECTOR, STEERING RACK BOOT, LH

main45058-95700iCM36,KM36,YM3#..RHD198808-199804

main45058-95701iCM36,KM3#..LHD198808-199804

45545SCREW, PINION BEARING ADJUSTING

main45545-26010iCM36,KM3#,YM3#199501-199604

main45545-27010iCM36,KM3#,YM3#198808-199501

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-38001iCM36,KM36,YM3#199604-199804

9011908143

main90119-08143

9011912084

main90119-12084

28 parts on this diagram · 6 diagrams in section
