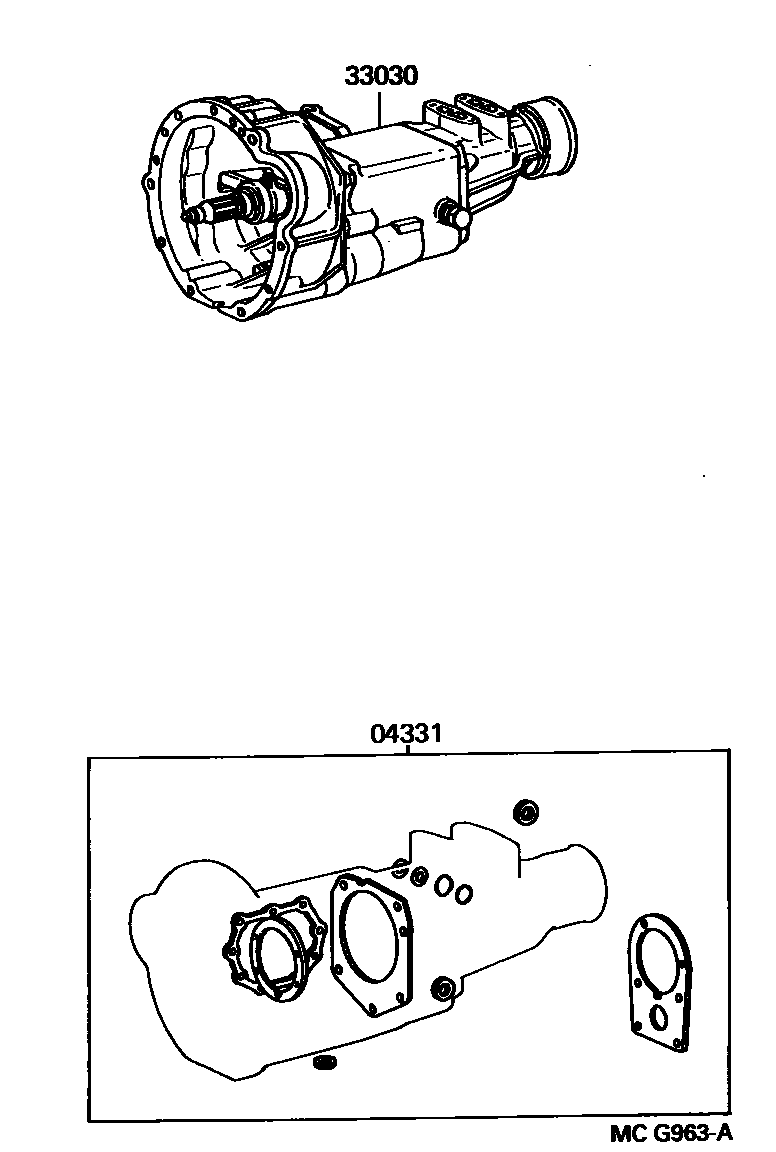

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1L40,L43 0002 1G52,G53

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-35091iCM36,KM36,37..4F,4H198808-199201

main04331-35170iCM36,KM30,36,YM3#..5F,5H198808-199804

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-27540iCM36..5F198808-199008

main33030-27600iCM36..5H198808-199005

main33030-27760iKM36,37..4H..GEN198808-199201

main33030-27770iCM36..4F198808-199201

main33030-27780iKM36..ARL198808-199201

main33030-27790iKM36..4F198808-198910

main33110-27907iCM36..5F199008-199804

main33110-27910iCM36..5H199005-199201

main33110-27912iKM36..SRF..5F198808-199804

main33110-27914iYM30,35..5F198808-199804

main33110-27915iYM31199110-199209

main33110-27921iKM36..MRF..GEN199005-199009

main33110-27921iKM36..SRF..05S198910-199009

MALAYSIA CKD SPEC

main33110-27922iKM30,36..MRF..GEN199009-199209

MALAYSIA CKD SPEC

main33110-27922iKM30199001-199009

2 parts on this diagram · 2 diagrams in section
