CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iCM36,KM30,36..02S,05S199006-199209

main04313-17010iCM36,KM3#199410-199804

main04313-22020iCM36198808-199006

main04313-26020iYM35199510-199804

MALAYSIA SPEC

main04313-30120iYM3#..5F198808-199410

main04313-30130iYM35199510-199804

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14040iCM36..4F198808-199201

main31470-28040iCM36..5F,5H198808-199804

main31470-30230iYM3#..5F198808-199804

main31470-35071iKM3#199401-199410

main31470-35100iKM3#199410-199804

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825×2iKM36..5F;CM36,KM30,YM3#..MTM198808-199209

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iCM36..4F198808-199201

main31473-22010iCM36,KM30,36,YM3#..5F,5H198808-199209

main31473-35050iKM3#,YM3#199410-199804

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKM36..5F;CM36,KM30,YM3#..MTM198808-199209

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKM36..5F;CM36,KM30,YM3#..MTM198808-199209

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKM36..5F;CM36,KM30,YM3#..MTM198808-199209

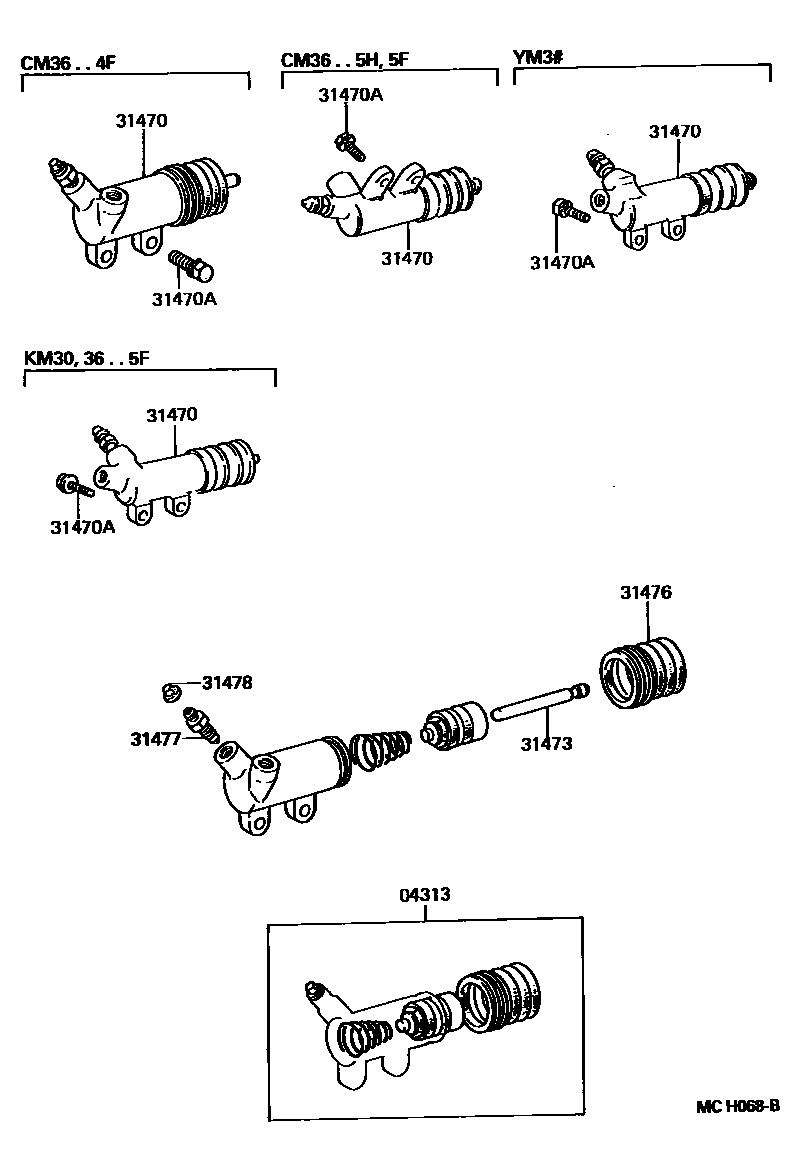

7 parts on this diagram · 1 diagram in section
