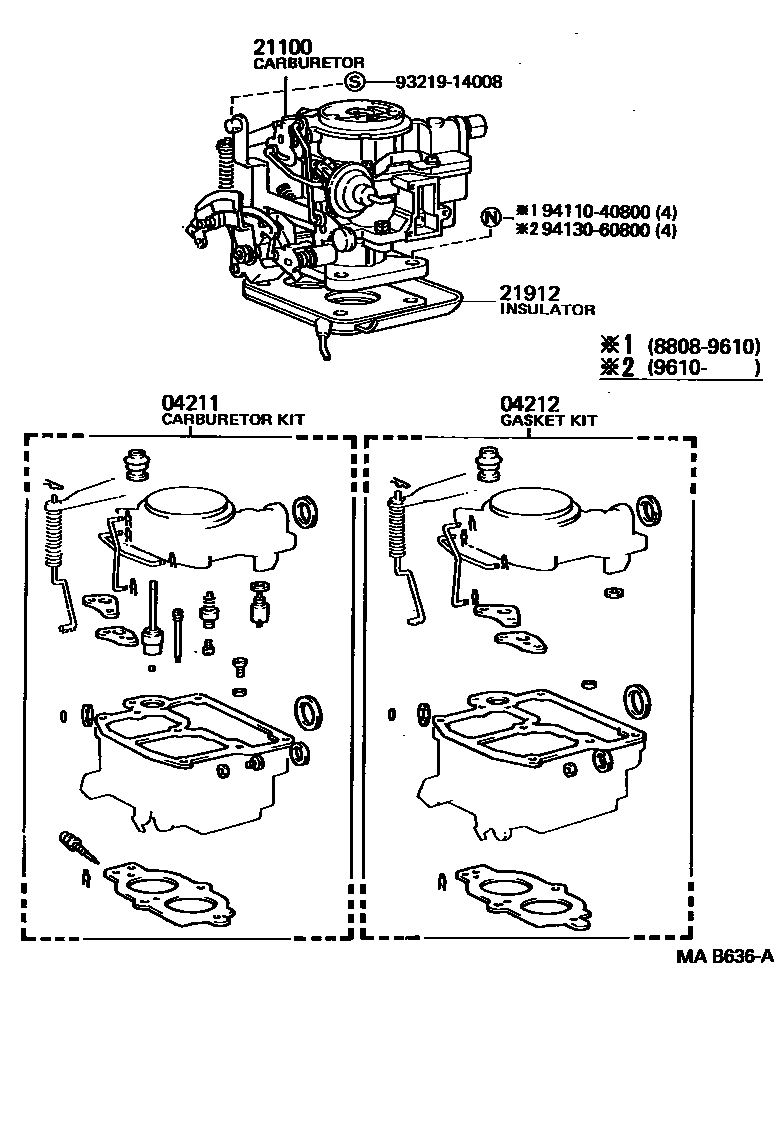

CARBURETOR ASSEMBLY

0001 1 0002 1

04211CARBURETOR KIT

main04211-13360i5K..KM36..RHD..4H198808-199001

SINGAPORE SPEC

main04211-13361i5K..KM3#..MRF; 5K..KM36..SRF199201-199804

MALAYSIA SPEC

main04211-13390i5K..KM3#198808-199001

main04211-13391i5K..KM36..SRF199201-199804

main04211-13460i5KC..KM36198808-198810

main04211-13461i5KC..KM36198810-198912

main04211-13462i5KC..KM36198912-199201

main04211-72420i2Y..YM31; 2Y..YM35199212-199804

MALAYSIA SPEC

main04211-73080i2Y..YM35198905-199003

main04211-73081i2Y..YM31,35199003-199208

main04211-73082i2Y..YM3#199208-199209

main04211-73270i2YC..YM3#198808-199003

21100CARBURETOR ASSY

main21100-13600i5K..KM36..SRF199201-199804

main21100-13610i5K..KM36..RHD..4H198808-199201

SINGAPORE SPEC

main21100-13690i5KC..KM36198808-199201

main21100-13720i5K..KM30199001-199804

main21100-72420i2Y..YM31; 2Y..YM35199212-199804

MALAYSIA SPEC

main21100-73330i2Y..YM35199209-199804

main21100-73371i2YC..YM30,35198808-199201

21912INSULATOR, CARBURETOR HEAT

main21901-13010i5K..KM36199610-199804

main21901-13020i5K..KM30199610-199804

main21912-13051i5K#..KM3#198808-198912

main21912-13070i5K..KM30199001-199610

main21912-13080i5K#..KM36,37198912-199610

main21912-72010i2Y#..YM3#198808-198912

main21912-72011i2Y#..YM3#198912-199804

9321914008

main93219-14008

9411040800

main94110-40800

9413060800

main94130-60800

6 parts on this diagram · 2 diagrams in section
