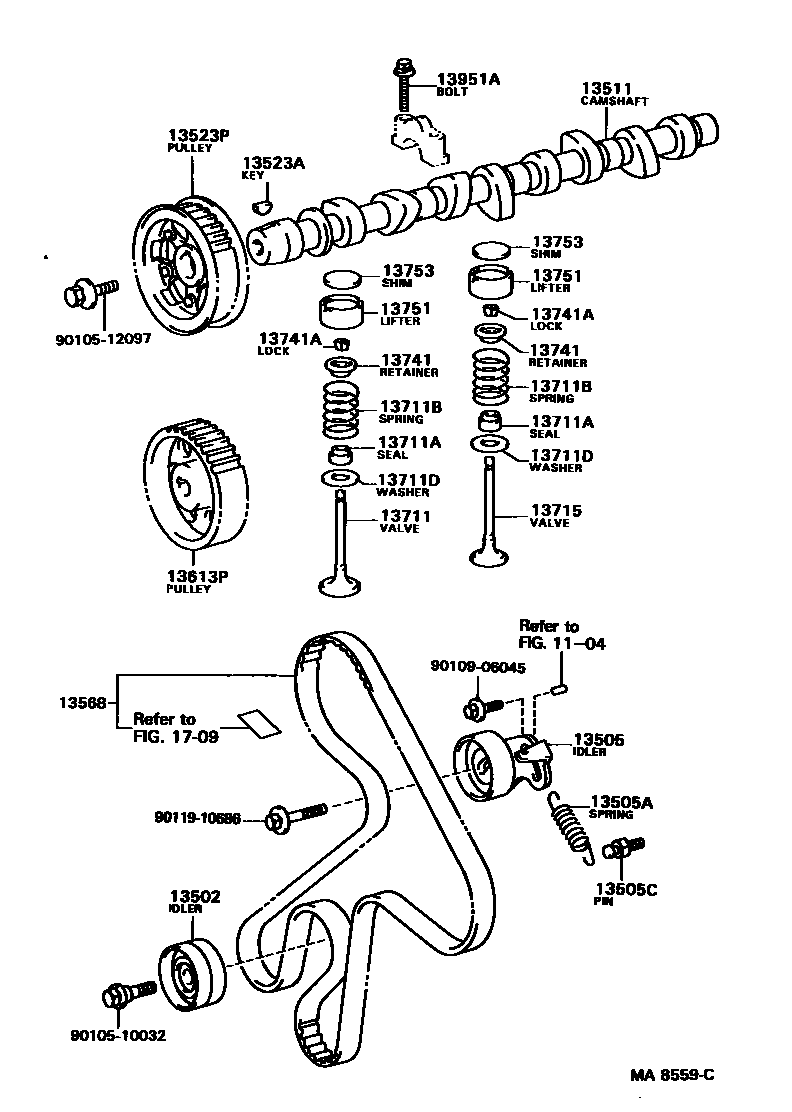

CAMSHAFT & VALVE
1104
13502IDLER SUB-ASSY, TIMING BELT, NO.2
sub13503-64021
13505ASPRING, TENSION(FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13613PPULLEY, INJECTION PUMP DRIVE
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
sub90913-02094
sub90913-02080
sub90913-02098
NOK
sub90913-02094
ARAI
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
SINGAPORE SPEC
13741RETAINER, VALVE SPRING
EXHAUST
INTAKE
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
T=3.35
T=3.40
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
1709
9010510032
main90105-10032
9010512097
main90105-12097
9010906045
main90109-06045
9011910686
main90119-10686
27 parts on this diagram · 3 diagrams in section
