ENGINE OVERHAUL GASKET KIT

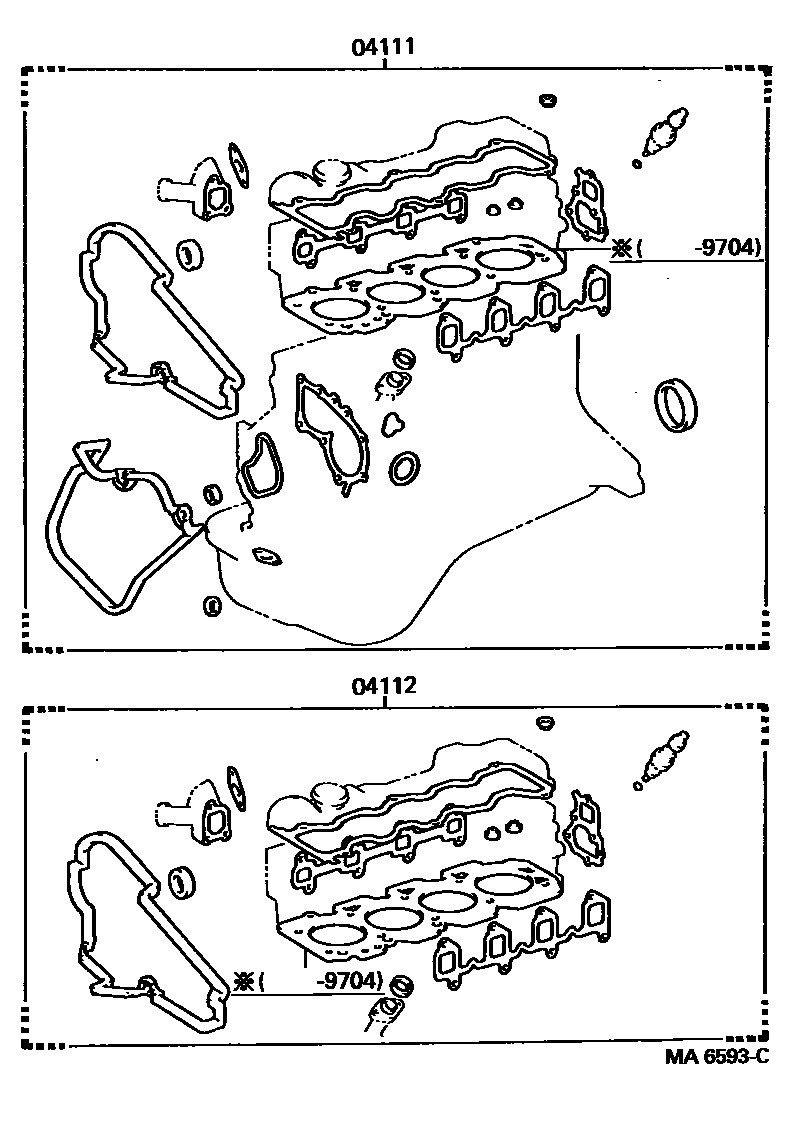

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-13042i198808-198912
sub04111-13043
main04111-13043i198912-199008
sub04111-13044
main04111-13044i199008-199508
sub04111-13045
main04111-13045i199508-199804
sub04111-13046
main04111-64072i198808-198903
sub04111-64073
main04111-64073i198903-198906
sub04111-64075
main04111-64074i198906-198912
sub04111-64076
main04111-64076i198912-199005
sub04111-64161
main04111-64077i199005-199009
sub04111-64162
main04111-64078i199009-199101
sub04111-64163
main04111-64163i199101-199504
sub04111-64166
main04111-64166i199504-199511
sub04111-64168
main04111-64168i199511-199704
sub04111-64341
sub11115-64170
main04111-64341i199704-199804
sub04111-64343
main04111-72013i198808-198912
sub04111-72014
main04111-72014i198912-199106
sub04111-72015
main04111-72015i199106-199308
sub04111-72016
main04111-72016i199308-199511
sub04111-72017
main04111-72040i199511-199804
sub04111-72041
04112GASKET KIT, ENGINE VALVE GRIND
main04112-13020i198808-198912
sub04112-13021
main04112-13021i198912-199008
sub04112-13022
main04112-13022i199008-199508
sub04112-13023
main04112-13023i199508-199804
main04112-64071i198808-198903
sub04112-64073
main04112-64073i198903-198906
sub04112-64101
main04112-64074i198906-199009
sub04112-64102
main04112-64077i199009-199101
sub04112-64105
main04112-64105i199101-199504
sub04112-64108
main04112-64108i199504-199511
sub04112-64109
main04112-64109i199511-199704
sub04112-64252
sub11115-64170
main04112-64252i199704-199804
sub04112-64253
main04112-72013i198808-199001
sub04112-72014
main04112-72014i199001-199106
sub04112-72015
main04112-72015i199106-199308
sub04112-72016
main04112-72016i199308-199511
main04112-72040i199511-199804

2 parts on this diagram · 3 diagrams in section
