HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

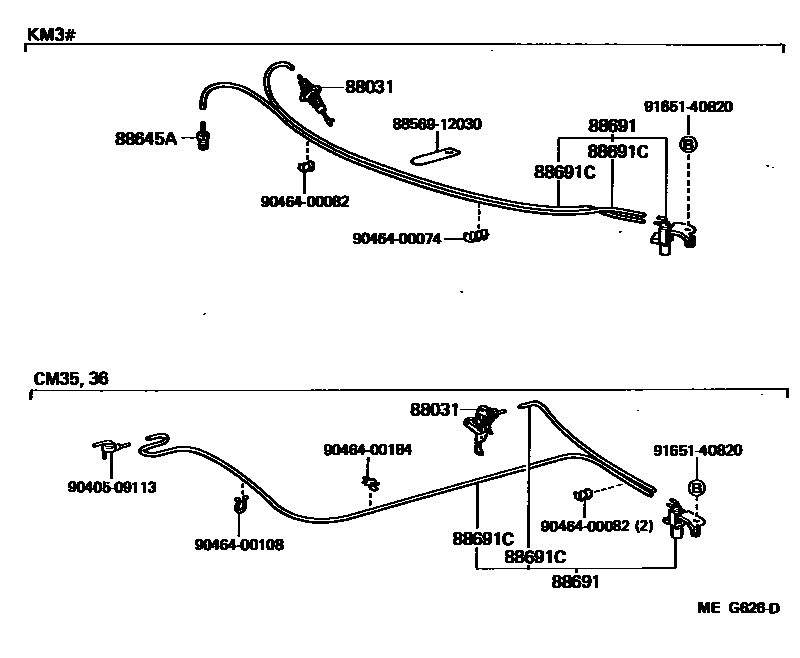

88031ACTUATOR SET, IDLE-UP

main21908-13010iKM3#..4H..GEN198509-198808

main88031-12081iKM36..ARL198509-198808

main88031-28010iYM30..GEN198509-198808

main88031-28020iCM35198509-198808

88645AUNION (FOR IDLE UP DEVICE)

main90404-51010iKM3#198509-198808

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-95730iCM35..LHD198509-198808

main88690-95734iCM3#..RHD..GEN198509-198808

main88690-95735iKM3#..4H..GEN198509-198808

main88690-95737iYM30,4#..ARL198509-198808

*CIU

main88690-95751iYM30..GEN198509-198808

main88690-95755iYM30..ARL198509-198808

COOL BOX

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90099-92003iKM3#..4H..GEN198712-198808

*H,L=510,MARK=#*

main90445-07066iCM35..LHD198509-198708

L=1300(*H,L=1050)

main90445-08197iCM35..LHD198509-198808

L=1050

main90999-92002iCM3#..RHD..GEN; YM30,40..ARL198712-198808

*H,L=240,MARK=#*,*CIU; L=300,MARK=#0,*CIU

main90999-92003iCM35..LHD; KM3#..4H..GEN198712-198808

*H,L=420,MARK=#*; *H,L=480,MARK=#*

main90999-92004iCM3#..RHD..GEN198712-198808

L=950,*CIU

main95411-10030iYM30,4#..ARL198509-198712

L=300,MARK=#0,*CIU

main95411-10060iKM3#..4H..GEN198509-198712

*H,L=510,MARK=#0

main95411-10095iCM35..RHD..GEN198509-198712

*H,L=950,MARK=#0,*CIU

main95411-19930iCM35..RHD..GEN; YM30,4#..ARL198509-198712

*H,L=240,MARK=#*,*CIU; *H,L=300,MARK=#*,*CIU

main95411-19960iCM35..LHD; KM3#..4H..GEN198509-198712

*H,L=420,MARK=#*; *H,L=480,MARK=#*

8856912030CLAMP (FOR COOLER RELAY)

main88569-12030

9040509113

main90405-09113

9046400074

main90464-00074

9046400082

main90464-00082

9046400108

main90464-00108

9046400184

main90464-00184

9165140820

main91651-40820
