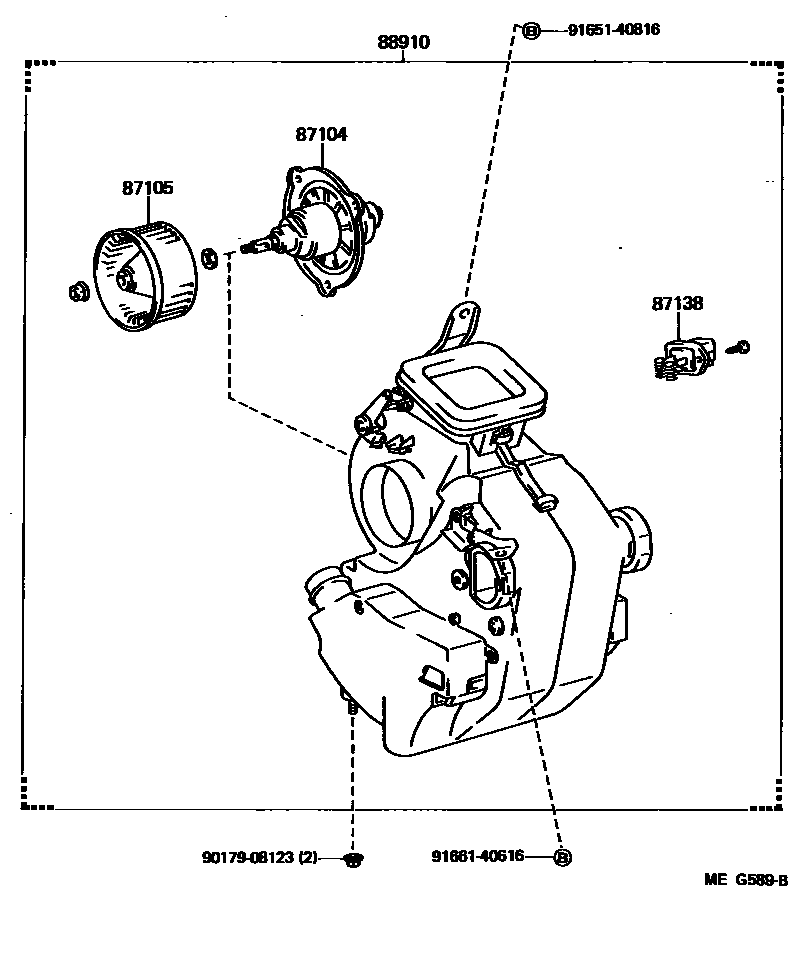

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1BOOST VENTILATOR 0002 1HEATER 0003 1 0004 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-95705iCM3#,KM36,YM3#,4#..RHD; CM35,KM3#..LHD; CM35..LHD; KM3#..LHD198509-198808

W/*BV; W/HEATER; W/HEATER & COOLER

main87104-95708iKM3#..LHD198509-198808

W/HEATER

87105FAN SUB-ASSY, HEATER BLOWER

main87105-12060iCM35,KM3#..LHD198509-198808

main87105-16020iCM3#,KM36,YM3#,4#..RHD198509-198808

87138RESISTOR, HEATER BLOWER

main87138-95409iCM35,KM3#..LHD198509-198808

W/HEATER

main87138-95707iCM3#,KM36,YM3#,4#..RHD; CM35,KM3#..LHD; CM35..LHD; KM3#..LHD198509-198808

W/*BV; W/HEATER & COOLER

88910VENTILATOR ASSY, BOOST

main88910-95704iCM35,KM36,YM30..RHD..GEN198509-198704

main88910-95705iCM35,KM3#..LHD198509-198704

main88910-95706iCM3#,KM36,YM30..RHD..GEN198704-198808

main88910-95707iCM35,KM3#..LHD198704-198808

9017908123

main90179-08123

9165140816

main91651-40816

9166140616

main91661-40616

7 parts on this diagram · 4 diagrams in section
