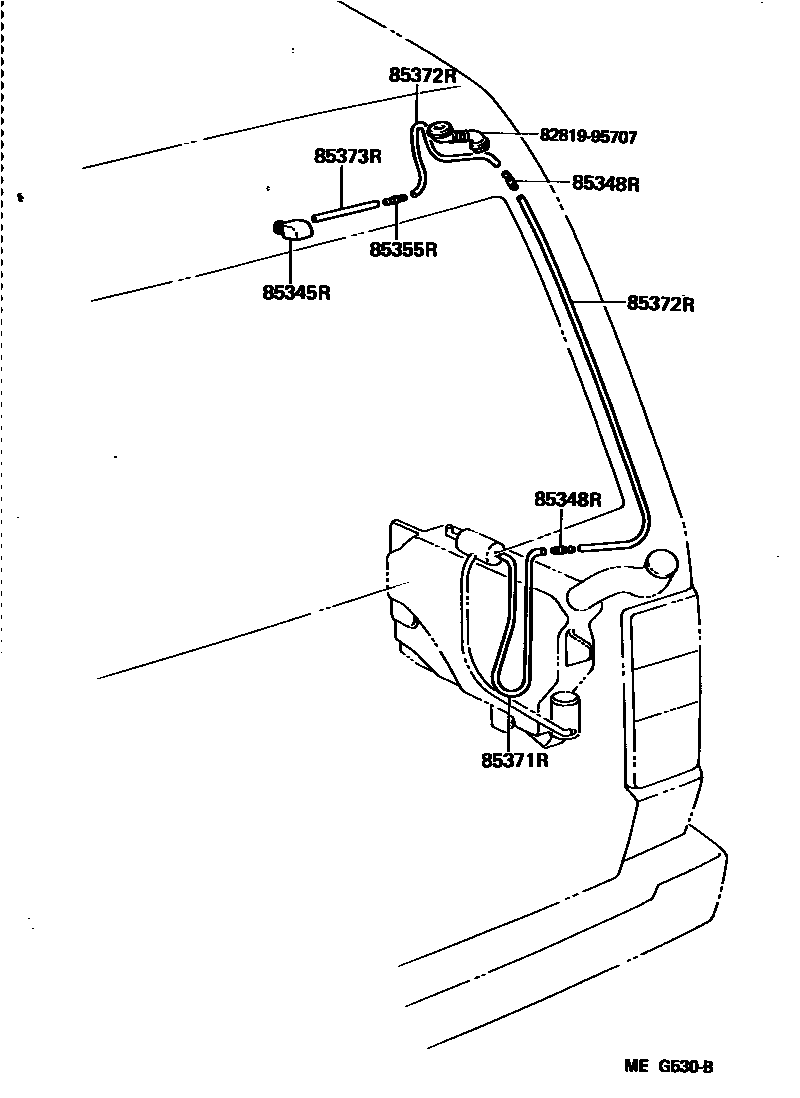

REAR WASHER

85345RNOZZLE, REAR WASHER

main85035-95711iKM36..03S..ARL; YM31198509-198602

main85035-95712iCM35,KM3#,YM30,35,4#..MRF198509-198808

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2iCM3#,KM3#,YM30,35,4#198608-198808

main85355-87201×2iCM35,KM36,YM30,35..ARL; YM31198509-198510

main85355-89122×2iCM35,KM36,YM30,35,4#..ARL; YM31198510-198602

85355RVALVE, REAR WASHER HOSE

main85031-12250iCM35,KM36,YM30,35,4#..ARL; YM30,31..GEN198509-198602

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iCM35,KM36,YM30,35,4#..ARL; YM30,31..GEN198509-198602

L=1000(*H,L=530)

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90445-08226iKM36..03S..ARL; YM31198509-198602

L=200

main90446-06013iCM3#,KM3#,YM31..SRF198602-198808

L=1450(*H,L=700)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iCM3#,KM3#,YM31..SRF198602-198808

L=1450(*H,L=280)

main90446-07001iCM35,KM3#,YM30,35,4#..MRF198509-198808

L=1450(*H,L=230)

8281995707GROMMET, WIRING HARNESS

main82819-95707

7 parts on this diagram · 1 diagram in section
