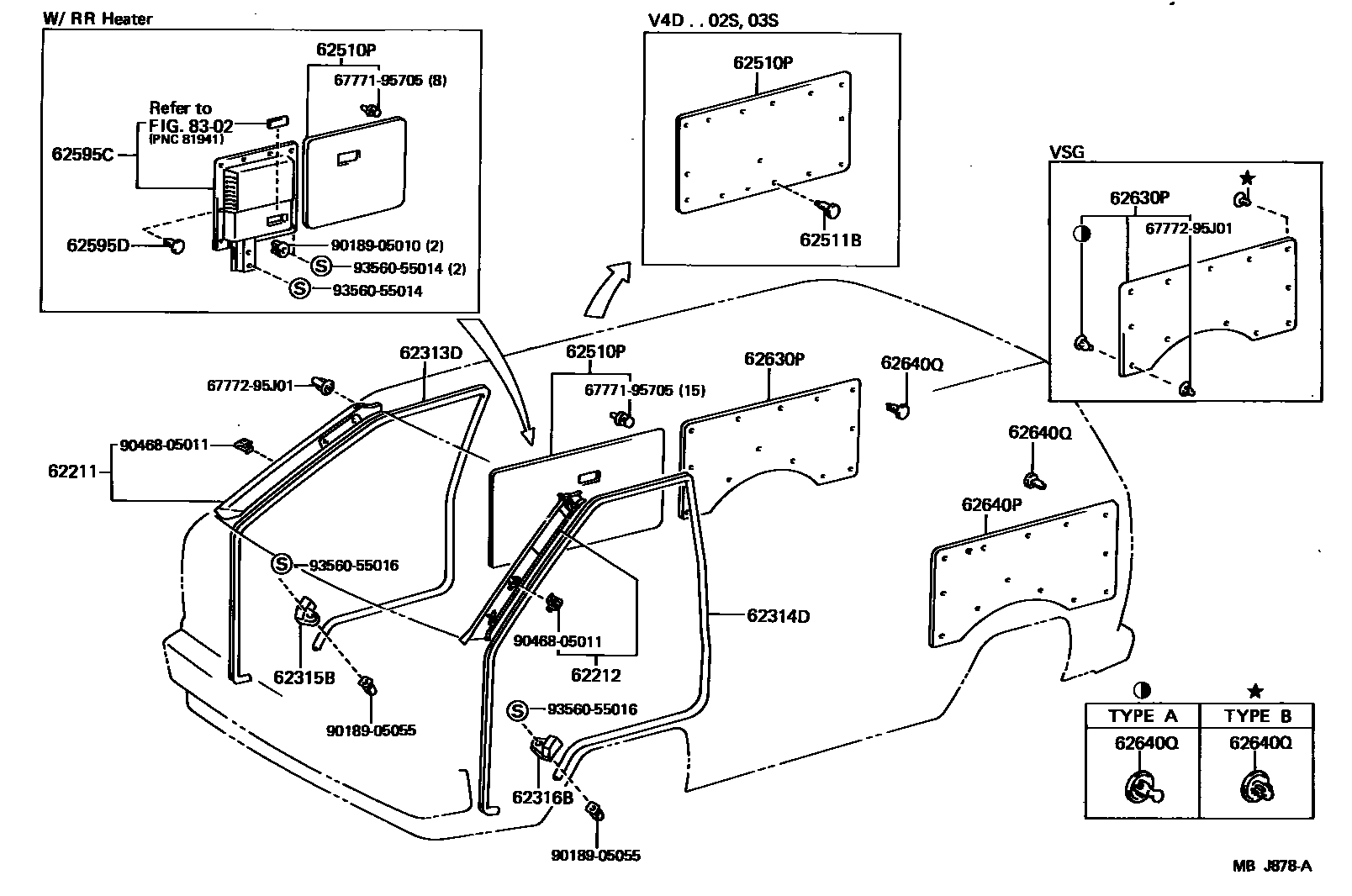

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1

62211GARNISH, FRONT PILLAR, RH

main62211-95706-03iYM30,40198509-198808

GRAY,GRAY

sub62211-27010

main62211-95706-05iCM35,KM3#,YM3#,4#198509-198808

BEIGE,BEIGE

sub62211-27010

62212GARNISH, FRONT PILLAR, LH

main62212-95707-03iYM30,40198509-198808

GRAY,GRAY

sub62212-27010

main62212-95707-05iCM3#,KM3#,YM3#,4#198509-198808

BEIGE,BEIGE

sub62212-27010

62313DTRIM, FRONT DOOR OPENING, RH

main62313-95710-04iYM30,40198509-198808

BLUE,BLUE

main62313-95710-06iCM3#,KM3#,YM3#,4#198509-198808

BROWN,BROWN

62314DTRIM, FRONT DOOR OPENING, LH

main62313-95710-04iYM30,40198509-198808

BLUE,BLUE

main62313-95710-06iCM3#,KM3#,YM3#,4#198509-198808

BROWN,BROWN

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62317-95700-04iYM30,40198509-198808

BLUE,BLUE

sub62317-27010

main62317-95700-06iCM3#,KM3#,YM3#,4#198509-198808

BROWN,BROWN

sub62317-27010

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62318-95700-04iYM30,40198509-198808

BLUE,BLUE

sub62318-27010

main62318-95700-06iCM3#,KM3#,YM3#,4#198509-198808

BROWN,BROWN

sub62318-27010

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-95703-06iKM36..06S..ARL;CM3#,KM36,YM31,41..RHD..05S198509-198808

BROWN,BROWN

main62510-95704-06iKM36,YM41..MRF198509-198808

W/RR HEATER,BROWN,BROWN

main62510-95708-04iYM30,40198509-198808

W/RR HEATER,BLUE,BLUE

main62510-95708-06iYM30,40198509-198808

W/RR HEATER,BROWN,BROWN

main62510-95713-06iKM36..RHD..06S..GEN198509-198808

BROWN,BROWN

main62510-95716-04iYM30,40198509-198808

BLUE,BLUE

main62510-95716-06iYM30,40198509-198808

BROWN,BROWN

main62511-95707iCM35,KM36,YM35..RHD..V4D..VSP198509-198808

main62511-95707iCM35..RHD..05S;KM36..RHD..06S..GEN198602-198808

W/O RR SEAT

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-06020-14iYM30,40198509-198808

BLUE,BLUE

sub90467-06020

main90467-06020-16iYM30,40198509-198808

BROWN,BROWN

sub90467-06020

main90467-10071-06iCM36198711-198808

W/O RR SEAT BROWN,BROWN

sub90467-10071

main90467-10071-06iCM35..LHD..02S198509-198808

BROWN,BROWN

sub90467-10071

main90467-10071-06iCM35,KM36..LHD..VSG198602-198808

W/O RR SEAT,BROWN

sub90467-10071

62595CBOARD, SIDE HEATER COVER, RH

main62595-95700-06iKM36,YM41..MRF198509-198808

BROWN,BROWN

62595DCLIP(FOR SIDE HEATER COVER BOARD)

main90467-10071-06iKM36,YM41..MRF198509-198808

BROWN,BROWN

sub90467-10071

62630PPANEL ASSY, QUARTER TRIM, REAR RH

main62630-95702-06iCM35..RHD..05S;KM36..RHD..06S..GEN198602-198808

W/O RR SEAT,BROWN,BROWN

main62630-95702-06iKM37198509-198808

BROWN,BROWN

main62630-95702-06iCM36198709-198808

BROWN

main62630-95705-04iYM30,40..ARL198509-198808

BLUE,BLUE

main62630-95705-06iYM30,40..ARL198509-198808

BROWN,BROWN

main62630-95708-04iYM30..GEN198509-198808

BLUE,BLUE

main62630-95708-06iYM30..GEN198509-198808

BROWN,BROWN

main62630-95713-06iKM36..DLX198608-198808

BROWN,BROWN

main62630-95715-06iCM3#,KM36,YM31,41..RHD..VSG..STD198509-198808

BROWN,BROWN

main62631-95702iCM35,KM36,YM35..RHD..V4D..VSP198509-198808

main62631-95704iCM35,KM36..LHD..VSG198602-198808

W/O RR SEAT

main62631-95704iCM35,KM36..LHD198509-198808

main62631-95717iCM35,KM36..LHD..VSG198510-198808

62640PPANEL ASSY, QUARTER TRIM, REAR LH

main62632-95702iCM3#,KM36..RHD..VSG..STD..GEN198509-198808

main62632-95704iCM35,KM36,YM35,41..ARL198509-198808

main62632-95704iCM35..RHD..05S;KM36..RHD..06S..GEN198602-198808

W/O RR SEAT

main62632-95705iCM35..LHD..02S198509-198808

main62640-95702-06iKM36..DLX198509-198808

BROWN,BROWN

main62640-95704-04iYM30,40..ARL198509-198808

BLUE,BLUE

main62640-95704-06iYM30,40..ARL198509-198808

BROWN,BROWN

main62640-95705-06iCM35,KM36..LHD..VSG198602-198808

W/O RR SEAT,BROWN,BROWN

main62640-95706-04iYM30..GEN198509-198808

BLUE,BLUE

main62640-95706-06iYM30..GEN198509-198808

BROWN,BROWN

main62640-95714-06iCM35,KM36..LHD..VSG198509-198808

BROWN,BROWN

62640QCLIP (FOR QUARTER TRIM REAR PANEL)

main90467-07054-06iCM3#,KM36,YM31,41..VSG198509-198808

TYPE A,BROWN,SABLE

sub90467-07054

main90467-10071-06iCM35,KM36,YM31,41..VSG198509-198808

TYPE B,BROWN,BROWN

sub90467-10071

main90467-10071-06iCM35,KM36,YM31,41..VSG198509-198808

BROWN,BROWN

sub90467-10071

main90467-10071-06iCM36198711-198808

W/O REAR SEAT BROWN,BROWN

sub90467-10071

8302

6777195705WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-95705

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01

9018905010

main90189-05010

9018905055

main90189-05055

9046805011

main90468-05011

9356055014

main93560-55014

9356055016

main93560-55016

21 parts on this diagram · 4 diagrams in section
