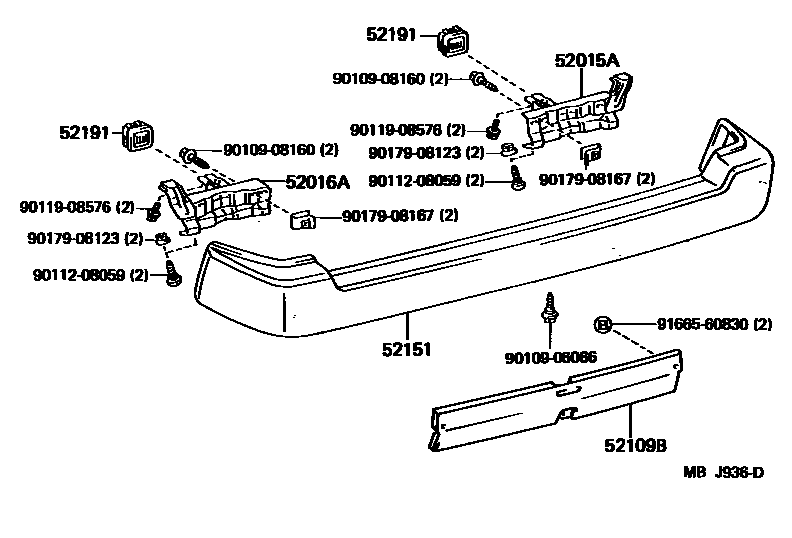

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-95703iCM3#,KM3#,YM3#,4#198509-198808

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-95703iCM3#,KM3#,YM3#,4#198509-198808

52109BWEIGHT SUB-ASSY, REAR BUMPER

main52109-95700iCM3#,KM3#,YM3#,4#198509-198808

52151BUMPER ASSY, REAR

main52151-95708iCM3#,KM3#,YM3#,4#198509-198808

52191PACKING, REAR BUMPER STAY

main52191-95701×2iCM3#,KM3#,YM3#,4#198509-198808

9010906066

main90109-06066

9010908160

main90109-08160

9011208059

main90112-08059

9011908576

main90119-08576

9017908123

main90179-08123

9017908167

main90179-08167

9166560830

main91665-60830

12 parts on this diagram · 1 diagram in section
