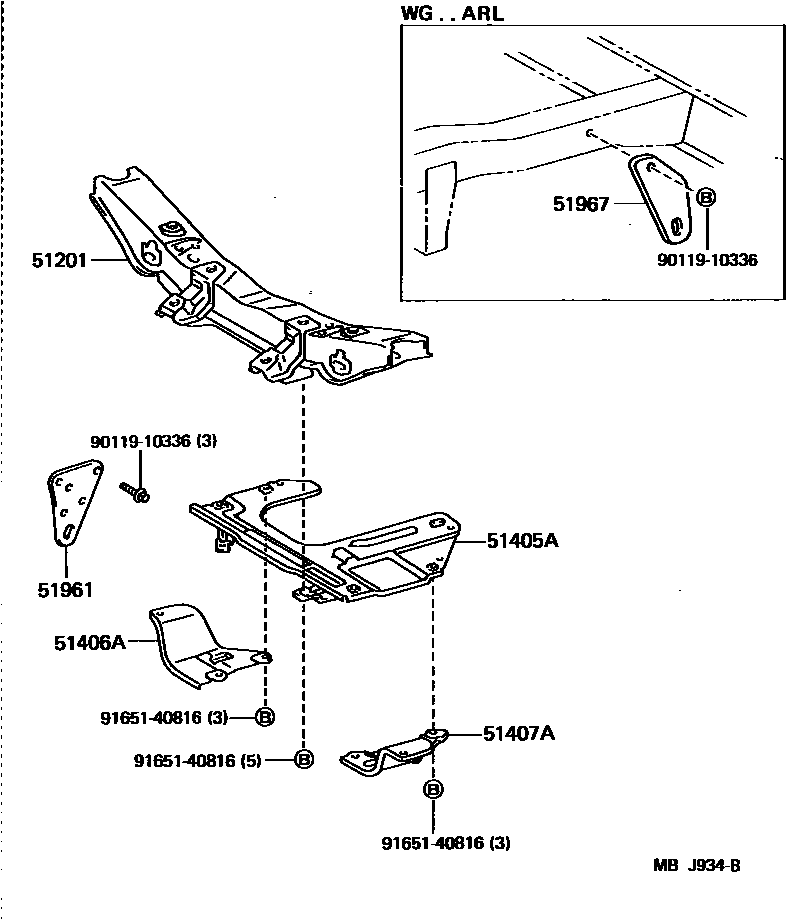

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-95D00iYM4#198601-198808

FR

main51203-95701iCM35,KM3#..LHD198509-198808

main51203-95703iCM3#,KM36,YM3#..RHD198509-198808

main51203-95D00iYM4#198601-198708

RR

main51203-95D01iYM40198708-198808

RR

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-95700iCM35..LHD198509-198808

main51405-95701iCM3#..RHD198509-198808

main51405-95702iKM36..RHD198509-198808

main51405-95703iKM3#..LHD198509-198808

main51405-95704iYM3#198509-198808

main51441-95D00iYM4#198601-198808

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51442-95700iCM3#,KM3#,YM3#198509-198808

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51443-95700iCM3#,KM3#,YM3#198509-198808

51961HOOK, NO.1

main51961-95700iCM3#,KM36,YM3#..RHD; CM35,KM3#..LHD198509-198808

main51961-95701iYM4#198601-198808

RH

main51962-95700iYM4#198601-198808

LH

51967HOOK, TRANSPORT, REAR

main51096-95700iYM30,4#..ARL198509-198808

9011910336

main90119-10336

9165140816

main91651-40816

8 parts on this diagram · 2 diagrams in section
