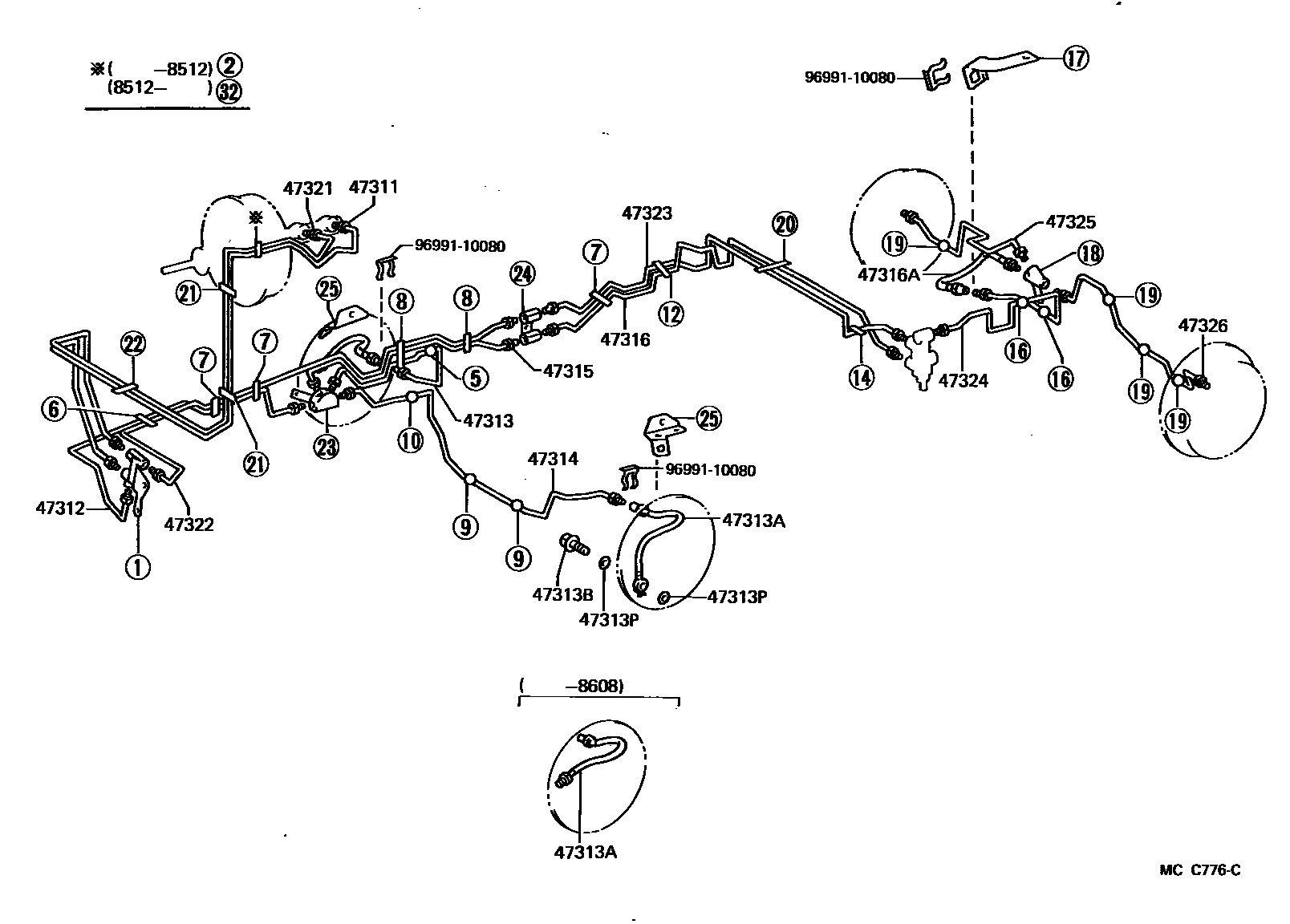

BRAKE TUBE & CLAMP

0001 1 0002 1 0004 1 0005 1 0006 1

47311TUBE, FRONT BRAKE, NO.1

main47311-27180iCM3#,KM36,YM3#,4#..RHD198509-198808

main47311-27210iCM35,KM36..LHD198509-198512

main47311-27211iCM35,KM3#..LHD198512-198808

47312TUBE, FRONT BRAKE, NO.2

main47312-27100iCM3#,KM3#,YM3#198509-198808

main47312-27120iYM4#198601-198808

47313TUBE, FRONT BRAKE, NO.3

main47313-27060iCM35,KM36,YM3#198509-198608

main47313-27061iCM3#,KM3#,YM30,35198608-198808

main47313-27070iYM4#198601-198808

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02505×2iCM3#,KM3#,YM30,35198608-198808

main96940-32805×2iCM35,KM36,YM3#198509-198608

main96940-33055×2iYM4#198601-198808

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iCM3#,KM3#,YM30,35198608-198808

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iCM3#,KM3#,YM30,35198608-198808

47314TUBE, FRONT BRAKE, NO.4

main47314-27050iCM35,KM36,YM3#198509-198608

main47314-27051iCM3#,KM3#,YM30,35198608-198808

main47314-27071iYM4#198601-198808

47315TUBE, FRONT BRAKE, NO.5

main47315-27020iCM3#,KM3#,YM3#198509-198808

main47315-27030iYM4#198601-198808

47316TUBE, FRONT BRAKE, NO.6

main47316-27060iCM3#,KM3#,YM3#198509-198808

main47316-27070iYM30,31198509-198808

main47316-27080iYM4#198601-198808

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33555iCM3#,KM3#,YM3#,4#198509-198808

47321TUBE, REAR BRAKE, NO.1

main47321-27130iCM3#,KM36,YM3#,4#..RHD198509-198808

main47321-27140iCM35,KM36..LHD198509-198512

main47321-27141iCM35,KM3#..LHD198512-198808

47322TUBE, REAR BRAKE, NO.2

main47322-27140iCM3#,KM3#,YM3#198509-198808

main47322-27170iYM4#198601-198808

47323TUBE, REAR BRAKE, NO.3

main47323-27210iCM3#,KM3#,YM35198509-198808

main47323-27220iYM30,31198509-198808

main47323-27300iYM4#198601-198808

47324TUBE, REAR BRAKE, NO.4

main47324-27090iCM3#,KM3#,YM3#,4#198509-198808

47325TUBE, REAR BRAKE, NO.5

main47325-27070iCM3#,KM3#,YM35198509-198808

main47325-27080iYM30,31198509-198808

main47325-27090iYM4#198601-198808

47326TUBE, REAR BRAKE, NO.6

main47326-27060iCM3#,KM3#,YM35198509-198808

main47326-27070iYM30,31198509-198808

main47326-27080iYM4#198601-198808

9699110080

main96991-10080

17 parts on this diagram · 5 diagrams in section
