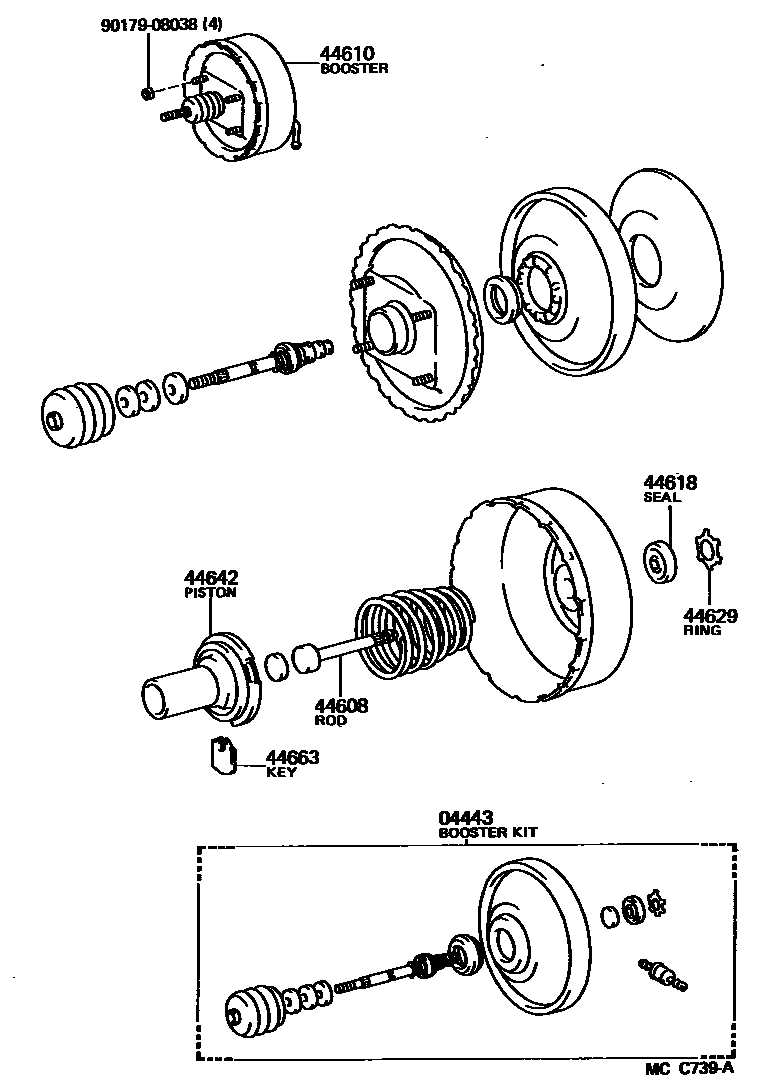

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-27200iKM36,YM3#,4#..RHD198509-198808

main04443-27210iCM3#..RHD198509-198808

main04443-27260iKM3#..LHD198509-198808

main04443-27270iCM35..LHD198509-198808

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iCM3#,KM36,YM3#,4#..RHD198509-198808

main44608-32020iCM35,KM3#..LHD198509-198808

44610BOOSTER ASSY, BRAKE

main44610-27240iCM3#,KM36,YM3#,4#..RHD198509-198808

main44610-27250iCM35,KM3#..LHD198509-198808

44618SEAL, BOOSTER BODY

main44621-28120iCM3#,KM36,YM3#,4#..RHD198509-198808

44629RING, CIRCULAR INTERNAL

main44628-28120iCM3#,KM36,YM3#,4#..RHD198509-198808

44642PISTON, BRAKE BOOSTER

main44642-12520iCM3#,KM36,YM3#,4#..RHD198509-198808

44663KEY, VALVE STOPPER

main44635-28120iCM3#,KM36,YM3#,4#..RHD198509-198808

9017908038

main90179-08038

8 parts on this diagram · 4 diagrams in section
