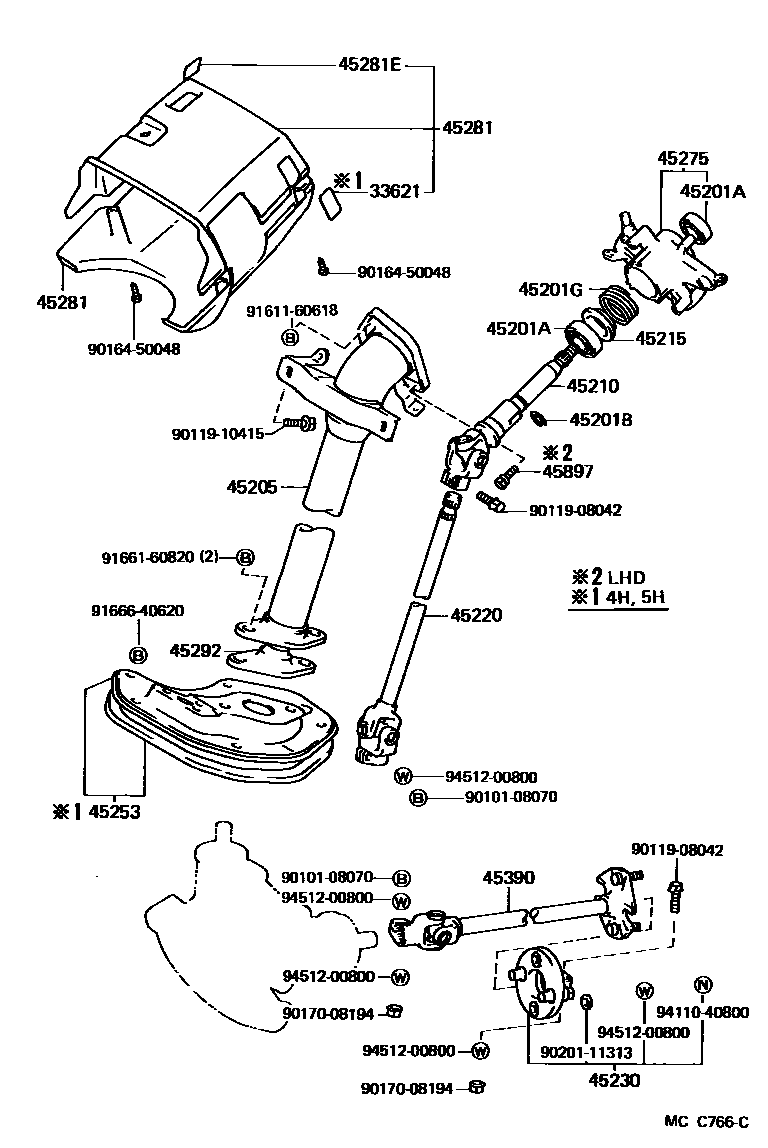

STEERING COLUMN & SHAFT

0001 1 0002 1 0004 1 0006 1 0007 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36010iKM3#..LHD198509-198808

main33621-36030iCM35..5H198702-198808

main33621-36040iKM36..RHD..4H198509-198808

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iCM3#,KM3#,YM3#,4#198509-198808

UPR

main90363-28001iCM3#,KM3#,YM3#,4#198509-198808

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCM3#,KM3#,YM3#,4#198509-198808

T=1.20

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iCM3#,KM3#,YM3#,4#198509-198808

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-27090iCM3#,KM36,YM3#,4#..RHD198509-198808

main45205-27100iYM30,40..ARL198509-198808

W/TILT STEERING

main45205-27110iCM35,KM3#..LHD198509-198808

45210SHAFT ASSY, STEERING MAIN

main45210-22050iCM3#,KM3#,YM3#,4#198509-198808

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iCM3#,KM3#,YM3#,4#198509-198808

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-27070iCM3#,KM36,YM3#,4#..RHD198509-198808

main45220-27080iCM35,KM3#..LHD198509-198808

45230COUPLING ASSY, FLEXIBLE

main45230-27020iCM3#,KM3#,YM3#198509-198808

main45230-28010iYM4#198601-198808

45253COVER, STEERING COLUMN HOLE

main45253-27080iKM36..RHD..4H198509-198808

main45253-27090iCM35,KM3#..LHD..(4H,5H)198509-198808

45275BRACKET, STEERING COLUMN, UPPER

main45280-27090iKM36..RHD..4H198509-198606

main45280-27091iKM36..RHD..4H198606-198808

main45280-27092iKM36..RHD..4H198709-198808

main45280-27100iCM35,KM36,YM3#,4#..RHD..(02S,05S,08S)198509-198709

main45280-27101iCM3#,KM36,YM30,35,40..RHD..(02S,05S,08S); CM35..LHD..4F198709-198808

main45280-27110iYM30,40..ARL198509-198808

W/TILT STEERING

main45280-27111iCM35,YM30,35..ARL198709-198808

W/TILT STEERING

main45280-27120iCM35,KM3#..LHD..(4H,5H)198509-198709

main45280-27121iKM3#..LHD198709-198808

main45280-27130iCM35..LHD..4F198509-198709

main45280-27131iCM35..5H198709-198808

45281HOUSING, STEERING COLUMN

main45286-27160-06iKM36..RHD..4H198509-198808

UPR,BROWN,BROWN

main45286-27170-04iYM30,40198509-198808

UPR,BLUE,BLUE

main45286-27170-06iCM3#,KM36,YM3#,4#..RHD..(02S,05S,08S)198509-198808

UPR,BROWN,BROWN

main45286-27180-04iCM35,YM35,41..ARL198608-198808

UPR,W/TILT STEERING,BLUE,BROWN

main45286-27180-06iYM30,40..ARL198509-198808

UPR,W/TILT STEERING,BROWN,BLUE

main45286-27190-06iKM3#..LHD198509-198808

UPR,BROWN,BROWN

main45286-27200-06iCM35..5H198702-198808

UPR,BROWN,BROWN

main45286-27210-06iCM35..LHD..4F198509-198808

UPR,BROWN,BROWN

main45287-27070-06iKM36..RHD..4H198509-198808

LWR,BROWN,BROWN

main45287-27080-04iYM30,40198509-198808

LWR,BLUE,BLUE

main45287-27080-06iCM3#,KM36,YM3#,4#..RHD..(02S,05S,08S)198509-198808

LWR,BROWN,BROWN

main45287-27090-04iYM30,40..ARL198509-198808

LWR,W/TILT STEERING,BLUE,BLUE

main45287-27090-06iCM35,YM35,41..ARL198608-198808

LWR,W/TILT STEERING,BROWN,BROWN

main45287-27100-06iCM35,KM3#..LHD..(4H,5H)198509-198808

LWR,BROWN,BROWN

main45287-27110-06iCM35..LHD..4F198509-198808

LWR,BROWN,BROWN

45281EPLATE, SAFETY CAUTION

main45283-22010iCM3#,KM36,YM3#,4#..RHD198509-198808

45292SEAL, MAIN SHAFT LOWER DUST

main45292-27010iCM3#,KM3#,YM3#,4#198509-198808

45390SHAFT ASSY, STEERING TORQUE

main45390-27010iCM3#,KM3#,YM3#198509-198808

main45390-27030iYM4#198601-198808

45897BOLT, STEERING LOCK SET

main45897-14010iCM35,KM3#..LHD198509-198808

9010108070

main90101-08070

9011908042

main90119-08042

9011910415

main90119-10415

9016450048

main90164-50048

9017008194

main90170-08194

9020111313

main90201-11313

9161160618

main91611-60618

9166160820

main91661-60820

9166640620

main91666-40620

9411040800

main94110-40800

9451200800

main94512-00800

27 parts on this diagram · 5 diagrams in section
