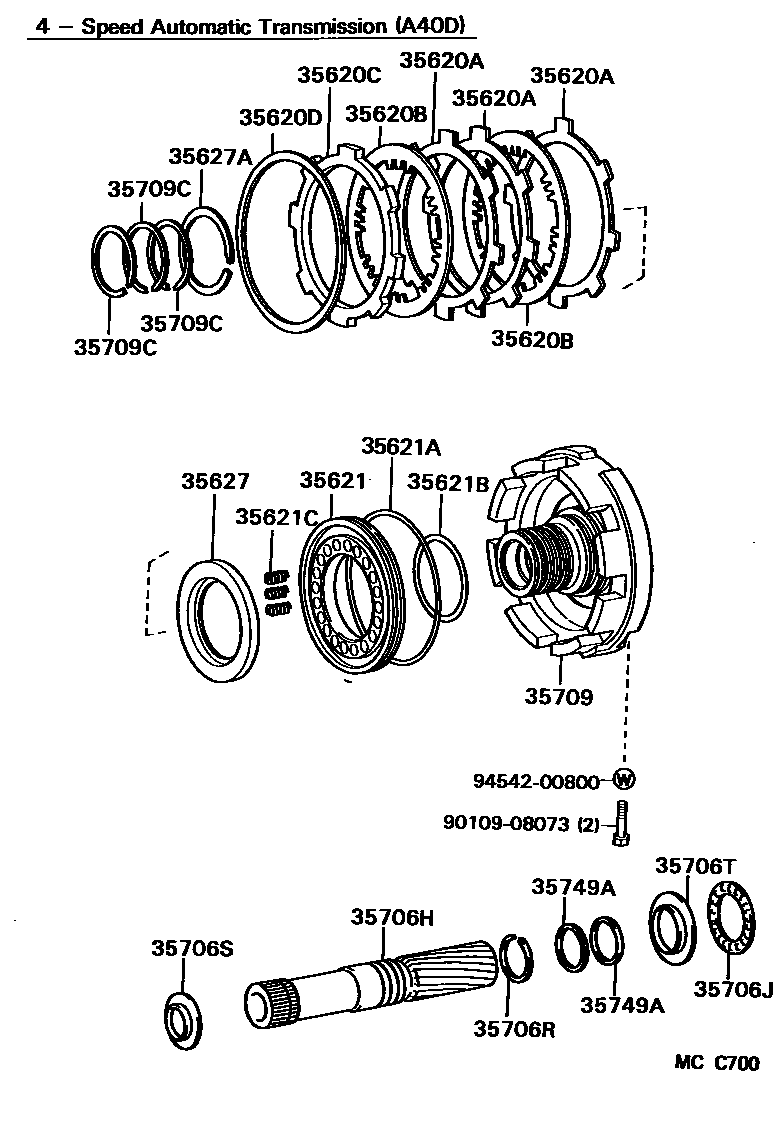

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35620APLATE, CLUTCH (FOR BRAKE)

main35634-22060×3iYM30,35..4FC198509-198808

T=1.8

main35648-30010×3iYM30,35..4FC198509-198808

T=2.0

35620BDISC, CLUTCH (FOR BRAKE)

main35677-30030×2iYM30,35..4FC198509-198808

35620CFLANGE, CLUTCH (FOR BRAKE)

main35675-22010iYM30,35..4FC198509-198808

35620DRING (FOR BRAKE)

main90521-99139iYM30,35..4FC198509-198808

35621PISTON, BRAKE, NO.1

main35621-30010iYM30,35..4FC198509-198808

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99007iYM30,35..4FC198509-198808

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-57188iYM30,35..4FC198509-198808

35621CSPRING (FOR BRAKE PISTON RETURN)

main90501-10671×16iYM30,35..4FC198509-198808

35627SEAT, BRAKE RETURN SPRING

main35627-22010iYM30,35..4FC198509-198808

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iYM30,35..4FC198509-198808

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30030iYM30,35..4FC198509-198808

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-23012iYM30,35..4FC198509-198808

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iYM30,35..4FC198509-198808

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iYM30,35..4FC198509-198808

35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)

main35789-22010iYM30,35..4FC198509-198808

35709SUPPORT SUB-ASSY, CENTER

main35709-30021iYM30,35..4FC198509-198808

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010×3iYM30,35..4FC198509-198808

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010×2iYM30,35..4FC198509-198808

9010908073

main90109-08073

9454200800

main94542-00800

20 parts on this diagram · 1 diagram in section
