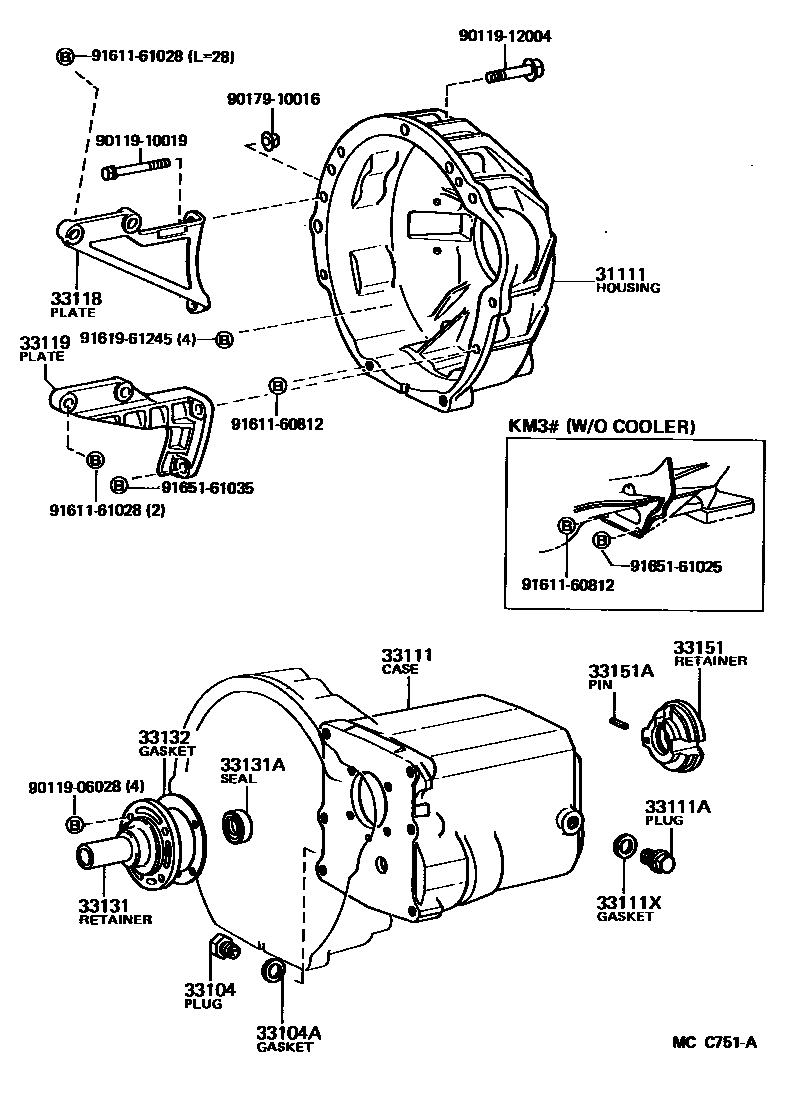

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1

31111HOUSING, CLUTCH

main31111-20200iCM35..4F198509-198808

main31111-27020iKM3#198509-198808

main31111-28020iYM3#,4#..5F198509-198808

main31111-28030iCM3#..5F,5H198509-198808

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18021iCM3#,YM3#..5F,5H198509-198808

main90341-18057iCM35,KM3#..4F,4H198509-198808

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCM3#,KM3#,YM3#,4#..MTM198509-198808

33111CASE, MANUAL TRANSMISSION

main33101-26010iYM4#198601-198602

sub33101-26900

main33101-26900iYM4#198602-198808

sub33101-28020

main33101-28010iCM3#,YM3#..5F,5H198509-198808

sub33101-35060

main33111-35031iCM35,KM3#..4F,4H198509-198808

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iCM3#,KM3#,YM3#,4#..MTM198509-198808

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iCM3#,KM3#,YM3#,4#..MTM198509-198808

33118PLATE, STIFFENER, RH(MTM)

main33118-12080iKM3#198509-198808

main33118-14032iCM35198509-198607

sub33118-14033

main33118-14033iCM3#198607-198808

main33118-28010iYM3#,4#..5F198509-198808

33119PLATE, STIFFENER, LH(MTM)

main33119-12050iKM36198509-198808

main33119-14050iCM3#198509-198808

main33119-28010iYM3#,4#..5F198509-198808

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iCM35,KM3#..4F,4H198509-198808

main33131-26020iCM3#,YM3#,4#..5F,5H198509-198808

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iCM3#,YM3#,4#..5F,5H198509-198808

main90311-32106iCM35,KM3#..4F,4H198509-198808

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iCM3#,YM3#,4#..5F,5H198509-198808

main33132-30030iCM35,KM3#..4F,4H198509-198808

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-26010iCM35,KM3#..4F,4H198509-198808

main33151-28010iCM3#,YM3#,4#..5F,5H198509-198808

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iCM35,KM3#..4F,4H198509-198808

9011906028

main90119-06028

9011910019

main90119-10019

9011912004

main90119-12004

9017910016

main90179-10016

9161160812

main91611-60812

9161161028

main91611-61028

9161961245

main91619-61245

9165161025

main91651-61025

9165161035

main91651-61035

22 parts on this diagram · 4 diagrams in section
