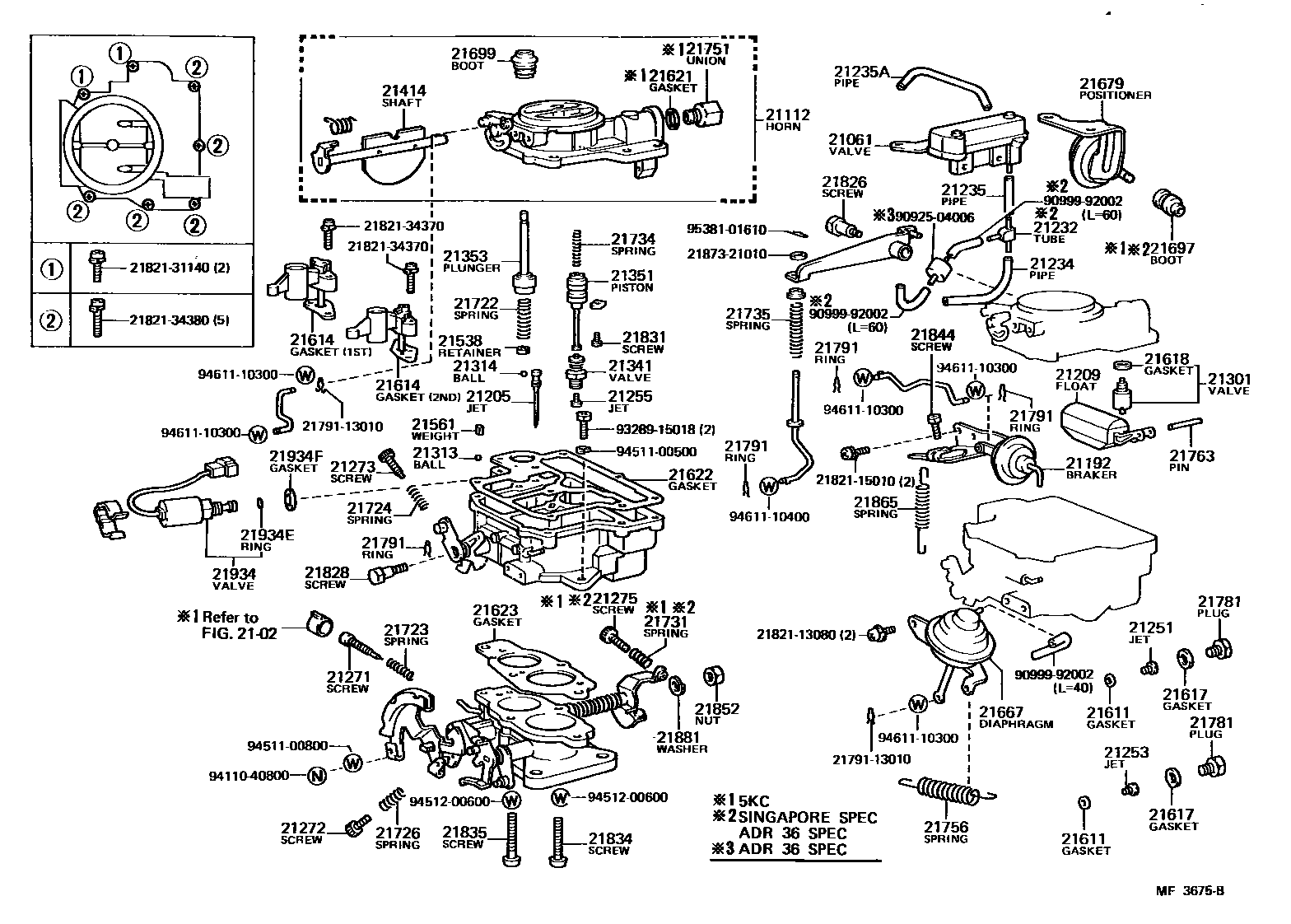

CARBURETOR
2102
21061VALVE SUB-ASSY, THERMOSTATIC
21112HORN, AIR
21192BREAKER
21209FLOAT SUB-ASSY
21232TUBE
ADR 36 SPEC
SINGAPORE SPEC
21234PIPE OR HOSE
21235PIPE OR HOSE, CONNECTING
21235APIPE OR HOSE, CONNECTING
21251JET, 1ST MAIN
ADR 36 SPEC
21255JET, POWER
21271SCREW, IDLE ADJUSTING
SINGAPORE SPEC
21272SCREW, 1ST IDLE ADJUSTING
21275SCREW, ADJUSTING
SINGAPORE SPEC
21301VALVE SUB-ASSY, NEEDLE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)
sub21314-11020
21351PISTON, POWER
21414SHAFT, CHOKE
21538RETAINER, BALL CHECK
21561WEIGHT, PUMP DISCHARGE
21611GASKET, MAIN JET
21614GASKET, VENTURI
sub21614-72200
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21623GASKET, BODY FLANGE
sub21623-13430
21679POSITIONER
SINGAPORE SPEC
ADR 36 SPEC
21697BOOT(FOR SLIDING ROD)
SINGAPORE SPEC
21699BOOT(FOR PUMP PLUNGER)
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21731SPRING, DASH POT OR POSITIONER ADJUSTING
SINGAPORE SPEC
21734SPRING, POWER PISTON
21735SPRING, PUMP ARM
21751UNION, NIPPLE
21756SPRING, BACK(FOR THROTTLE SHAFT)
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
TYPE 2
21826SCREW, PUMP ARM SET
21828SCREW, 1ST IDLE SET
21831SCREW, POWER PISTON STOP
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21835SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
21844SCREW, CHOKE LEVER
21852NUT, THROTTLE LEVER SET
21865SPRING
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
NO.1
NO.2
2179113010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13010
2182113080SCREW, 2ND THROTTLE VALVE SET
main21821-13080
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182134370SCREW, 2ND THROTTLE VALVE SET
main21821-34370
2182134380SCREW, 2ND THROTTLE VALVE SET
main21821-34380
2187321010WASHER, PLUNGER
main21873-21010
9092504006
main90925-04006
9099992002
main90999-92002
9328915018
main93289-15018
9411040800
main94110-40800
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461110300
main94611-10300
9461110400
main94611-10400
9538101610
main95381-01610
78 parts on this diagram · 3 diagrams in section
