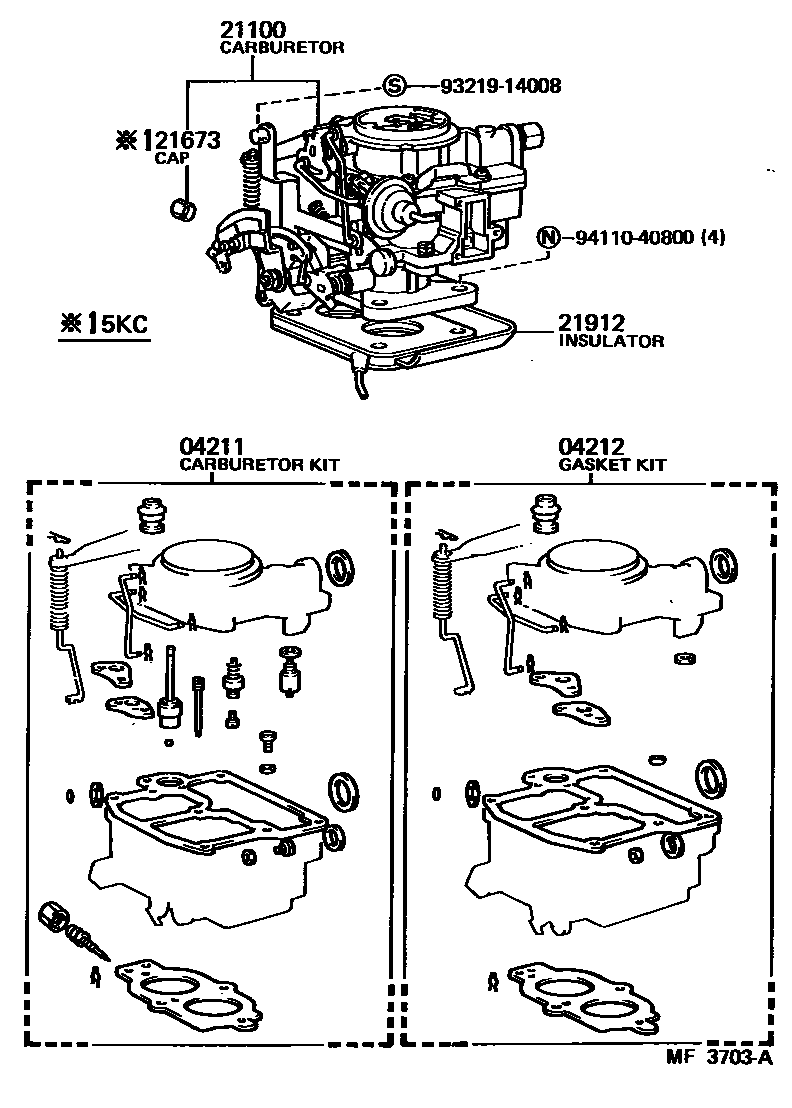

CARBURETOR ASSEMBLY

0001 1 0002 1

04211CARBURETOR KIT

main04211-13360i5K..KM36..RHD..4H198509-198808

SINGAPORE SPEC

main04211-13380i5KC..KM36198509-198808

main04211-13390i5K..KM3#198509-198808

main04211-13400i5KC..KM36198509-198808

ADR 36 SPEC

main04211-72100i2YC,3YC..YM30,4#198509-198808

main04211-72110i2Y..YM30,31198509-198805

main04211-73080i2YC..YM35198509-198808

04212GASKET KIT, CARBURETOR

main04212-13070i5K#..KM3#198509-198808

main04212-72010i2Y..YM30,31198509-198808

main04212-72020i2YC,3YC..YM30,35,4#198509-198808

21100CARBURETOR ASSY

main21100-13590i5KC..KM36198509-198805

main21100-13600i5K..KM3#198509-198808

main21100-13610i5K..KM36..RHD..4H198509-198808

SINGAPORE SPEC

main21100-13620i5KC..KM36198509-198805

ADR 36 SPEC

main21100-13690i5KC..KM36198805-198808

main21100-72170i2YC,3YC..YM30,4#198509-198708

main21100-72190i2Y..YM30,31198509-198708

main21100-73160i2YC..YM35198509-198708

main21100-73161i2YC..YM35198708-198805

main21100-73320i2YC,3YC..YM30,40198708-198709

main21100-73321i2YC,3YC..YM30,40198709-198808

main21100-73330i2Y..YM30198708-198808

21673CAP, IDLE LIMIT

main21673-13280i5KC..KM36198509-198808

21912INSULATOR, CARBURETOR HEAT

main21912-13031i5KC..KM36198509-198805

main21912-13051i5K..KM3#198509-198808

main21912-72010i2Y#,3YC..YM3#,4#198509-198808

9321914008

main93219-14008

9411040800

main94110-40800

7 parts on this diagram · 2 diagrams in section
