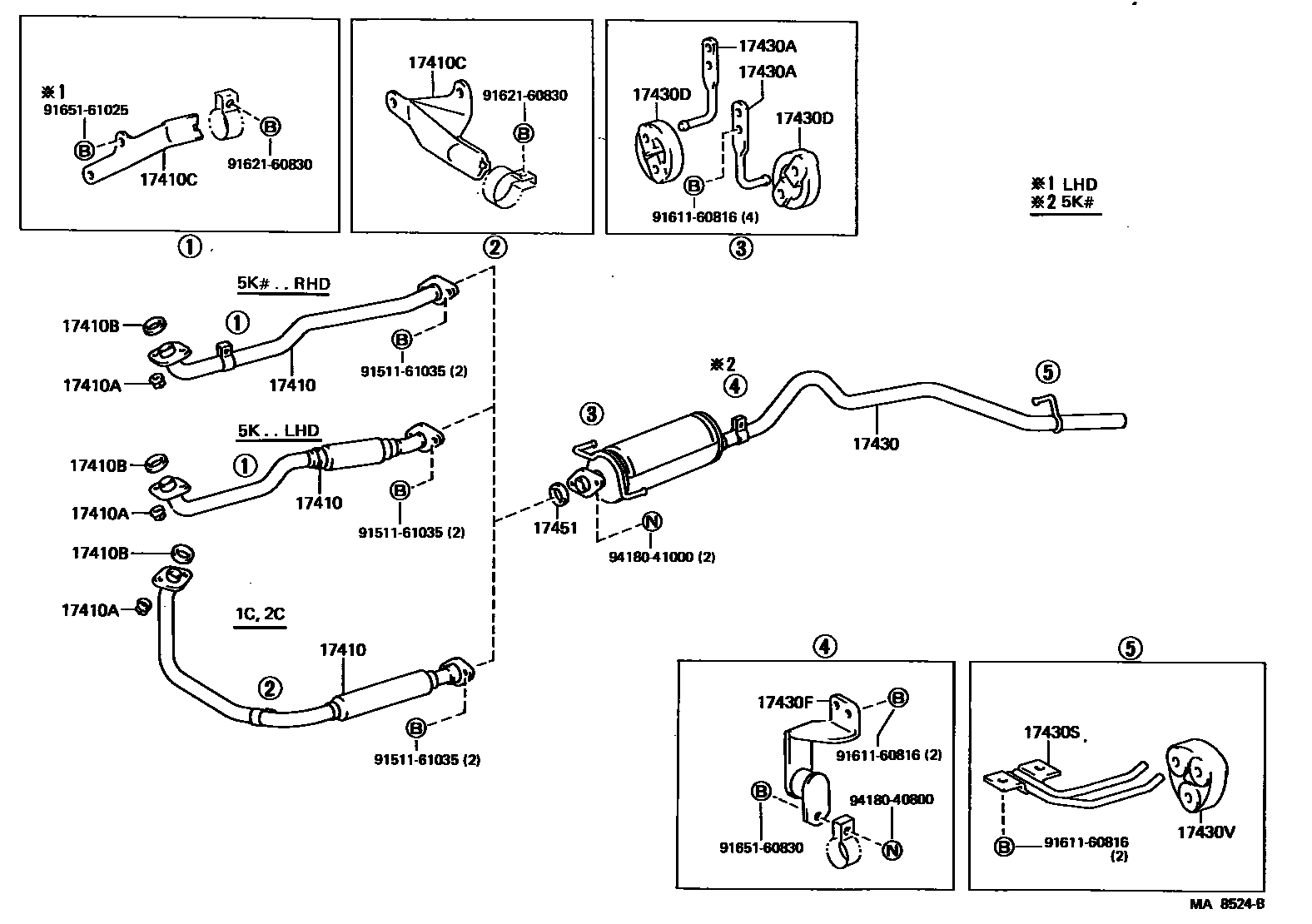

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-13280i5K..KM36..RHD198805-198808

main17410-13290i5K..KM3#..LHD198509-198808

main17410-13360i5KC..KM36198805-198808

main17410-64140i1C,2C..CM3#198509-198808

main17410-72080i2YC..YM35;2Y..YM30,31198509-198805

main17410-72110i2YC..YM30198509-198601

main17410-72111i2YC..YM30198601-198805

main17410-72200i2Y..YM30198805-198808

main17410-73240i3YC..YM4#198601-198808

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i1C,2C,5K#,2Y#,3YC..CM3#,KM3#,YM3#,4#198509-198808

17410BGASKET, EXHAUST PIPE

main90917-06001×2i2Y#,3YC..YM3#,4#198509-198808

main90917-06004i1C,2C,5K#..CM3#,KM3#198509-198808

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-13160i5K#..KM3#198509-198808

main17571-64090i1C,2C..CM3#198509-198808

main17571-72040i2Y#,3YC..YM3#,4#198509-198805

main17571-72100i2Y#,3YC..YM30,35,40198805-198808

17430PIPE ASSY, EXHAUST, TAIL

main17430-13250i5K#..KM3#198509-198710

main17430-13360i5K#..KM3#198710-198805

main17430-13361i5K..KM3#198805-198808

main17430-13390i5KC,2YC..KM36,YM35198805-198808

main17430-64290i1C..CM35198509-198704

main17430-64291i1C..CM35198704-198709

main17430-64292i1C,2C..CM3#198709-198808

main17430-72130i2YC..YM30198509-198601

main17430-72140i2YC..YM35;2Y..YM30,31198509-198710

main17430-72180i2YC..YM30198601-198808

main17430-72220i2YC..YM35198710-198805

main17430-73200i3YC..YM4#198601-198808

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17562-13060×2i2YC..YM35;1C,5K#,2Y..CM35,KM3#,YM30,31198509-198709

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17563-35020×2i2YC..YM35;1C,5K#,2Y..CM35,KM3#,YM30,31198509-198709

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17562-13070i5K#..KM3#198509-198805

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17575-13060i2YC..YM35;1C,5K#,2Y..CM35,KM3#,YM30,31198509-198709

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17565-13030i5K#,2YC..KM3#,YM35198805-198808

main17565-13040×3i2Y#,3YC..YM30,4#198601-198808

main17565-63020×3i2YC..YM30198509-198601

main17565-64060i1C,2C..CM3#198704-198808

17451GASKET, EXHAUST PIPE

main90917-06004i2YC..YM35;1C,2C,5K#,2Y..CM3#,KM3#,YM30,31198509-198805

main90917-06020i2YC,3YC..YM30,35,40; 5KC..KM36198805-198808

RR

main90917-06023i2YC,3YC..YM30,4#198509-198805

FR

9151161035

main91511-61035

9161160816

main91611-60816

9162160830

main91621-60830

9165160830

main91651-60830

9165161025

main91651-61025

9418040800

main94180-40800

9418041000

main94180-41000

18 parts on this diagram · 4 diagrams in section
