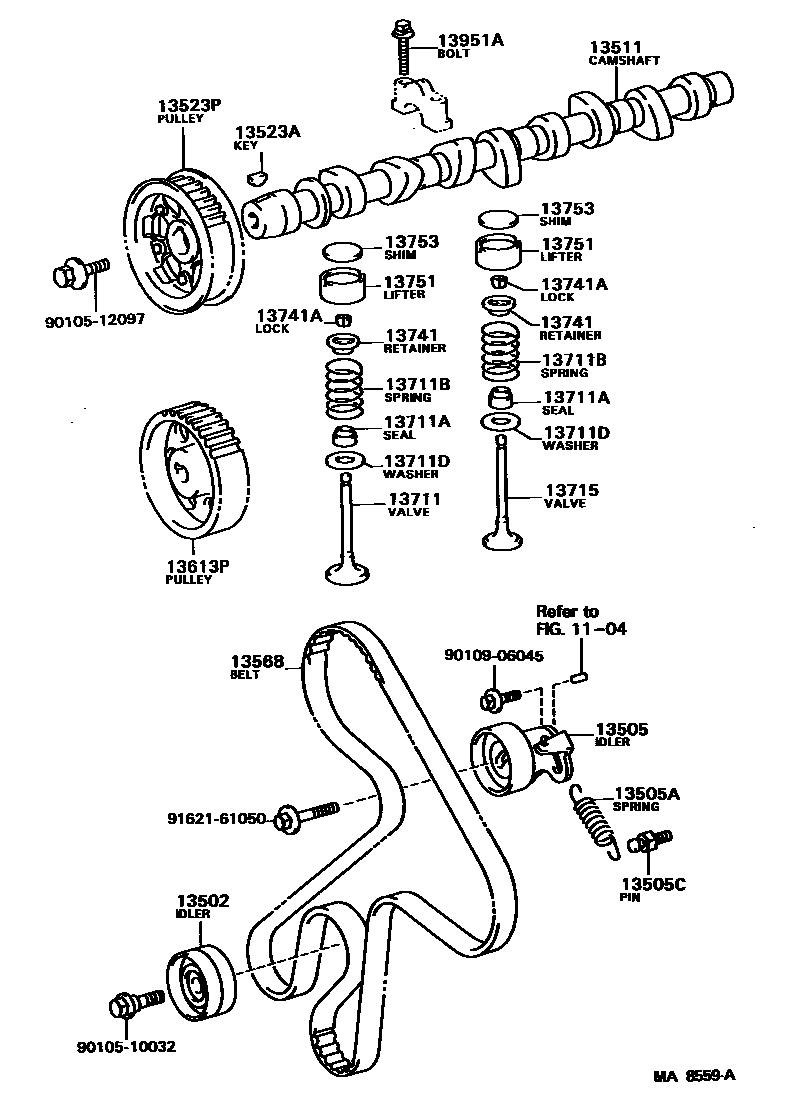

CAMSHAFT & VALVE
1104CYLINDER HEAD
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13505ASPRING, TENSION(FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13511CAMSHAFT
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
13613PPULLEY, INJECTION PUMP DRIVE
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
SINGAPORE SPEC
13741RETAINER, VALVE SPRING
EXHAUST
INTAKE
EXHAUST
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
STD
13753SHIM, VALVE ADJUSTING
T=2.20,T=2.20
T=2.25,T=2.25
T=2.30,T=2.30
T=2.35,T=2.35
T=2.40,T=2.40
T=2.45,T=2.45
T=2.50,T=2.50
T=2.55,T=2.55
T=2.60,T=2.60
T=2.65,T=2.65
T=2.70,T=2.70
T=2.75,T=2.75
T=2.80,T=2.80
T=2.85,T=2.85
T=2.90,T=2.90
T=2.95,T=2.95
T=3.00,T=3.00
T=3.05,T=3.05
T=3.10,T=3.10
T=3.15,T=3.15
T=3.20,T=3.20
T=3.25,T=3.25
T=3.30,T=3.30
T=3.35,T=3.35
T=3.40,T=3.40
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
*8-1.25PX53-15
9010510032
main90105-10032
9010512097
main90105-12097
9010906045
main90109-06045
9162161050
main91621-61050
26 parts on this diagram · 3 diagrams in section
