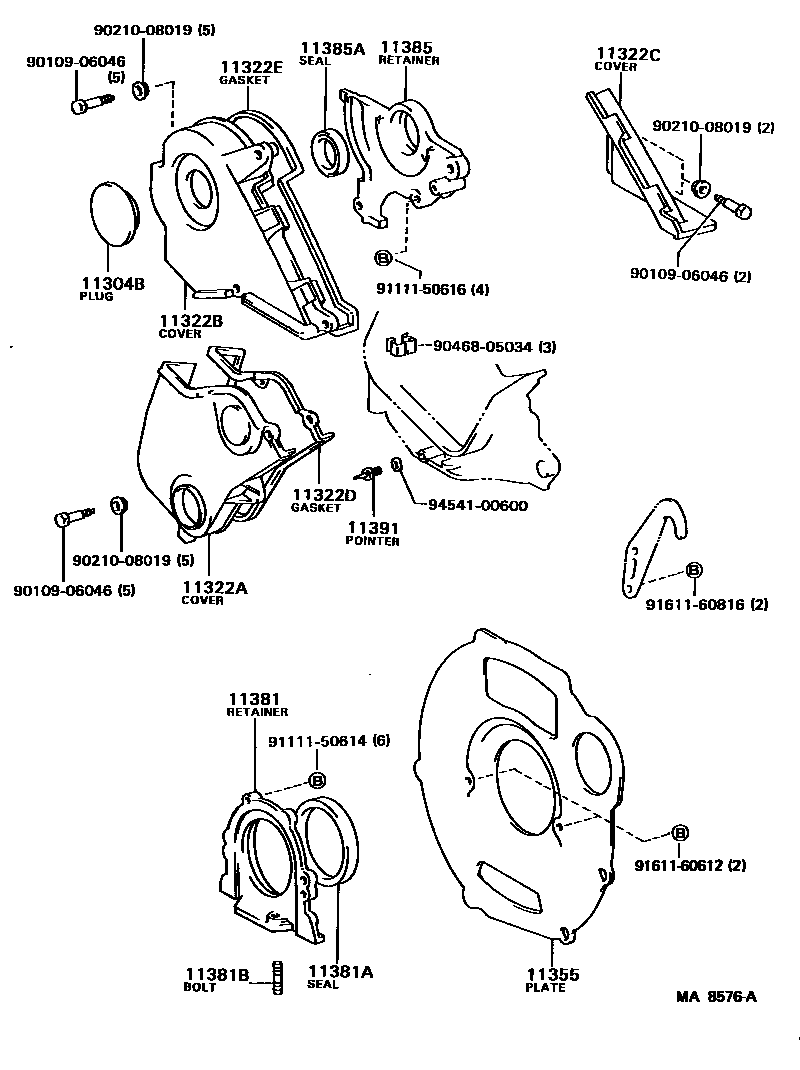

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01357i1C,2C..CM3#198509-198808

OD=64

11322ACOVER, TIMING BELT, NO.1

main11321-64010i1C,2C..CM3#198509-198808

11322BCOVER, TIMING BELT, NO.2

main11322-64010i1C,2C..CM3#198509-198808

11322CCOVER, TIMING BELT, NO.3

main11323-64010i1C..CM35198509-198602

main11323-64011i1C,2C..CM3#198602-198808

11322DGASKET, TIMING BELT COVER, NO.1

main11328-64020i1C,2C..CM3#198509-198808

11322EGASKET, TIMING BELT COVER, NO.2

main11329-64020i1C,2C..CM3#198509-198808

11355PLATE, REAR END

main11355-13012i5K#..KM3#198509-198808

main11355-64011i1C,2C..CM3#198509-198808

main11355-71010i2Y#,3YC..YM3#,4#..5F198509-198808

main11355-71020i2YC..YM30,35..4FC198509-198608

main11355-71021i2YC..YM30,35..4FC198608-198808

11381RETAINER, ENGINE REAR OIL SEAL

main11381-13011i5K#..KM3#198509-198808

main11381-64012i1C,2C..CM3#198509-198808

main11381-71010i2Y#,3YC..YM3#,4#198509-198808

11381ASEAL, ENGINE REAR OIL

main90311-70004i5K#..KM3#198509-198808

HTC 70 92 8.5

main90311-80003i2Y#,3YC..YM3#,4#198509-198808

main90311-90003i1C,2C..CM3#198509-198808

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06033×2i1C,2C..CM3#198509-198808

main90116-06035×2i5K#..KM3#198509-198808

L=23,S=12&9

11385RETAINER, CAMSHAFT OIL SEAL

main11382-64011i1C,2C..CM3#198509-198808

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38025i1C,2C..CM3#198509-198808

11391POINTER, TIMING

main11391-64010i1C,2C..CM3#198509-198808

9010906046

main90109-06046

9021008019

main90210-08019

9046805034

main90468-05034

9111150614

main91111-50614

9111150616

main91111-50616

9161160612

main91611-60612

9161160816

main91611-60816

9454100600

main94541-00600

21 parts on this diagram · 3 diagrams in section
