CYLINDER BLOCK

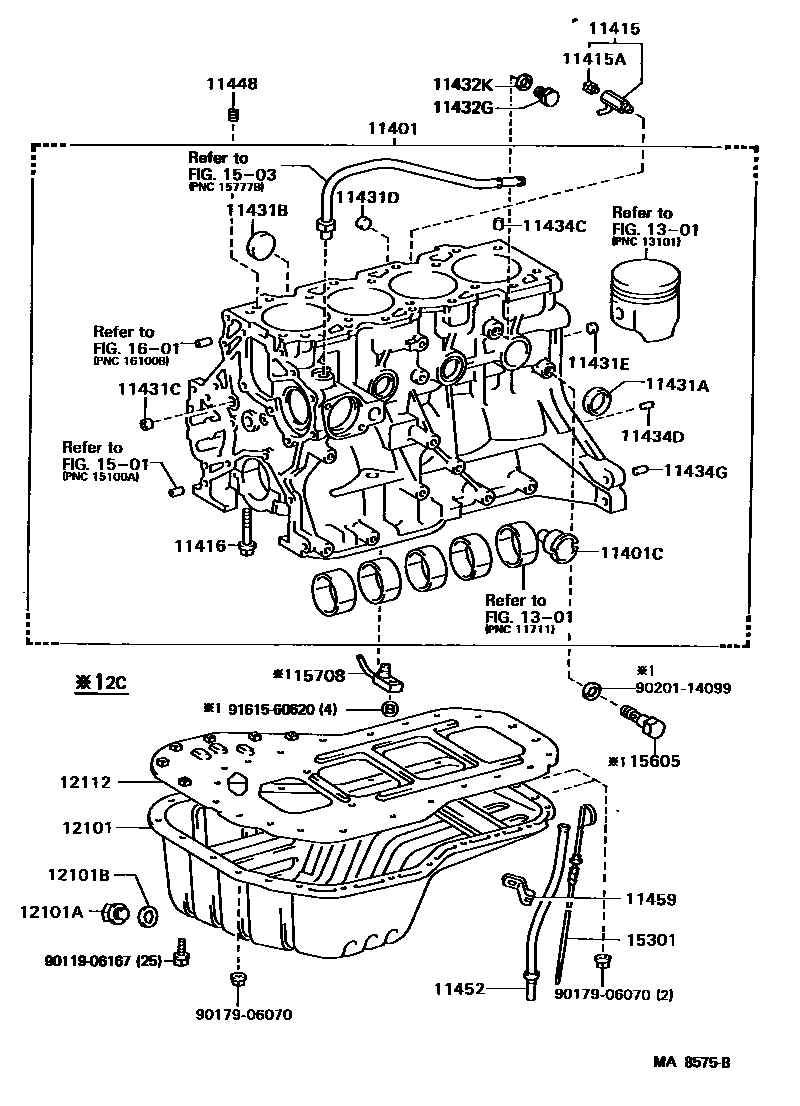

Parts diagram
11401BLOCK SUB-ASSY, CYLINDER
main11401-19335i198509-198808
SINGAPORE SPEC
sub11401-19336
sub11011-11010
sub90910-09091
main11401-19345i198509-198808
sub11401-19346
sub11011-11010
sub90910-09091
main11401-69205i198509-198608
main11401-69206i198608-198609
sub11401-69207
main11401-69207i198609-198808
main11401-69236i198709-198808
sub11401-69238
sub11115-64122
main11401-79066i198509-198808
main11401-79086i198601-198808
sub11401-79088
11401CFLANGE(FOR WATER BY-PASS)
main16353-64010i198509-198808
sub16353-64011
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
main90910-09088i198509-198808
sub90345-52003
main96431-53828i198509-198808
main96431-53850i198509-198605
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
main90910-09087i198509-198808
main96432-23814i198509-198808
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
main90910-02019i198509-198808
*10-1.25PX55-18
main90910-02032i198509-198808
main90910-02061i198509-198808
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
main90331-47025i198509-198808
OD=46.5
main96411-01800i198509-198808
main96411-43500i198509-198808
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
main96411-43000i198509-198808
main96411-43500i198509-198808
OD=35
main96411-44500i198509-198808
OD=45
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
main96411-11800i198509-198612
sub96411-41800
main96411-41800i198612-198808
main96411-43500i198509-198808
OD=35
main96411-45000i198509-198808
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
main96411-11800i198509-198612
sub96411-41800
main96411-41800i198612-198808
main96411-45000i198509-198808
OD=50
11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
main96411-11800i198509-198612
sub96411-41800
main96411-41800i198612-198808
main96412-01800i198509-198808
OD=18
11432GPLUG, W/HEAD STRAIGHT SCREW, NO.5
main90341-12006i198612-198808
11432KGASKET, W/HEAD STRAIGHT SCREW PLUG
main90430-12221i198612-198808
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
main90250-08120i198509-198808
L=18,OD=8,L=18,OD=8
main90253-14001i198509-198808
L=9,OD=14
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
main90250-06068i198509-198808
L=11,OD=6
main90250-08120i198509-198808
L=18,OD=8,L=18,OD=8
11434GPIN, STRAIGHT(FOR END PLATE)
main90250-10113i198509-198808
11448ORIFICE, CYLINDER BLOCK OIL
main11448-54010i198509-198808
sub11448-54020
11452GUIDE, OIL LEVEL GAGE
main11452-13030i198509-198808
main11452-64020i198509-198808
main11452-71020i198509-198808
11459SUPPORT, OIL LEVEL GAGE GUIDE
main11459-71011i198509-198808
main90929-01026i198509-198808
12101PAN SUB-ASSY, OIL
main12101-13030i198509-198808
main12101-13040i198509-198808
sub12101-13070
main12101-64050i198509-198808
main12101-64060i198509-198808
main12101-71011i198509-198808
sub12101-72010
main12101-71031i198509-198808
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012i198509-198808
main90341-18089i198509-198808
sub90033-41020
12101BGASKET(FOR OIL PAN DRAIN PLUG)
main90430-12011i198509-198803
sub90430-12019
main90430-12019i198803-198808
sub90430-12028
main90430-18013i198608-198808
sub90430-18023
main90430-18244i198509-198608
sub90430-18023
12112PAN, OIL NO.2
main12112-64030i198509-198808
1301
1501
1503
15301GAGE SUB-ASSY, OIL LEVEL
main15301-13040i198509-198808
main15301-64020i198509-198808
sub15301-64050
main15301-71020i198509-198808
15605VALVE SUB-ASSY, OIL CHECK
main15605-64011i198709-198808
15708NOZZLE SUB-ASSY, OIL, NO.1
main15790-64011i198709-198808
1601
9011906167
main90119-06167
9017906070
main90179-06070
9020114099
main90201-14099
9161560620
main91615-60620
