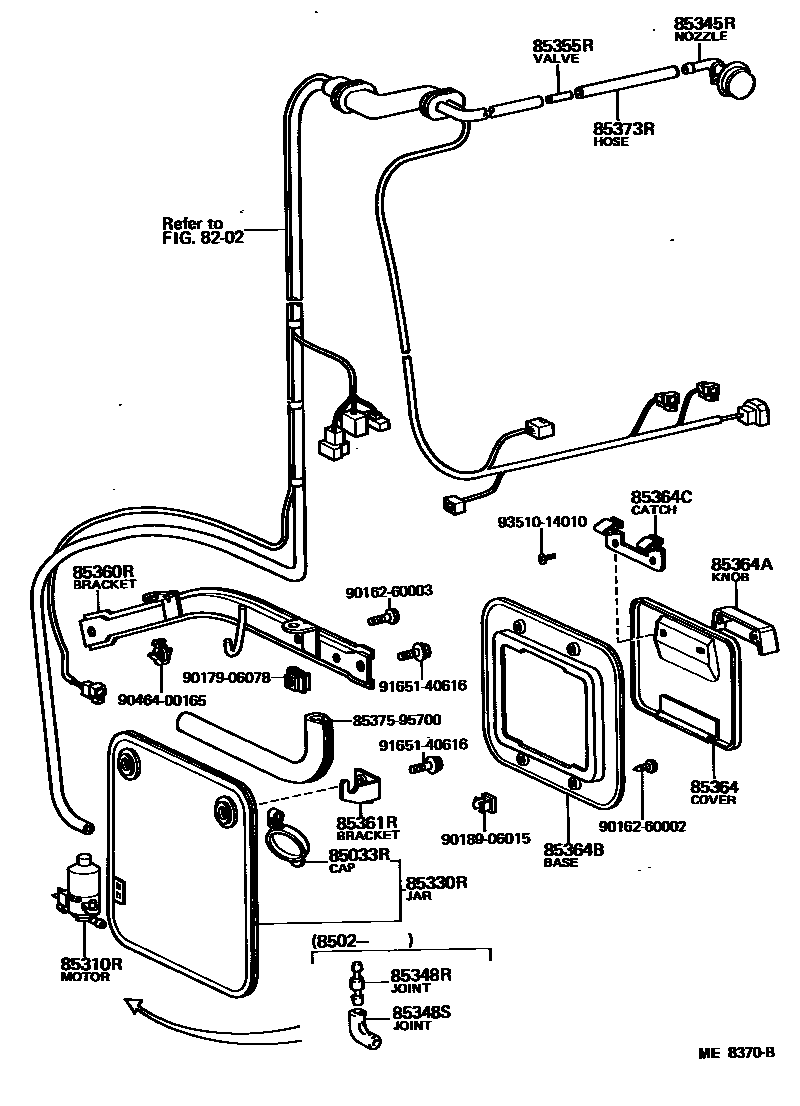

REAR WASHER

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85332-10080iKM20..05S..ARL198204-198304

main85332-20050iCM20,KM20,YM21..ARL; CM20..EUR;KM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..EUR; KM20..LHD..09S; KM20..LHD..V4D..GEN; YM20198502-198508

PHILIPPINE SPEC; PORTUGAL SPEC

85310RMOTOR ASSY, REAR WASHER

main85310-10070iKM20..05S..ARL198204-198304

main85310-22080iCM20,KM20,YM21..ARL; CM20..EUR;KM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..EUR; KM20..LHD..09S; KM20..LHD..V4D..GEN; YM20198502-198508

PHILIPPINE SPEC; PORTUGAL SPEC

85330RJAR ASSY, REAR WASHER

main85330-95701iKM20..05S..ARL198204-198304

main85331-95702iCM20,KM20,YM21..ARL; CM20..EUR;KM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..EUR; KM20..LHD..09S; KM20..LHD..V4D..GEN; YM20198502-198508

PHILIPPINE SPEC; PORTUGAL SPEC

85345RNOZZLE, REAR WASHER

main85035-95700iKM20..05S..ARL198204-198304

main85035-95710iCM20,KM20,YM21..ARL; CM20..EUR;KM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..EUR; KM20..LHD..09S; KM20..LHD..V4D..GEN198312-198508

PHILIPPINE SPEC; PORTUGAL SPEC

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-87201iCM20,KM20,YM21..ARL; CM20..EUR;KM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..EUR; KM20..LHD..09S; KM20..LHD..V4D..GEN; YM20198502-198508

PHILIPPINE SPEC; PORTUGAL SPEC

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20070iCM20,KM20,YM21..ARL; CM20..EUR;KM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..EUR; KM20..LHD..09S; KM20..LHD..V4D..GEN; YM20198502-198508

PHILIPPINE SPEC; PORTUGAL SPEC

85355RVALVE, REAR WASHER HOSE

main85031-30010iKM20..05S..ARL198204-198304

85360RBRACKET ASSY, REAR WASHER

main85307-95700iKM20..05S..ARL198204-198304

85361RHOLDER, REAR WASHER

main85373-95700iKM20..05S..ARL198204-198304

85364COVER, REAR WASHER JAR

main85306-95700-06iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

BROWN,BROWN

main85306-95700-15iKM20..05S..ARL198210-198304

BEIGE,BEIGE

85364AKNOB, REAR WASHER JAR COVER

main55521-95260iKM20..05S..ARL198204-198304

85364BBASE, REAR WASHER JAR COVER

main85366-95700-06iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

BROWN,BROWN

main85366-95700-15iKM20..05S..ARL198210-198304

BEIGE,BEIGE

85364CCATCH, REAR WASHER JAR COVER

main85374-95700iKM20..05S..ARL198204-198304

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33319iKM20..05S..ARL198204-198304

8537595700HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-95700

9016260002

main90162-60002

9016260003

main90162-60003

9017906078

main90179-06078

9018906015

main90189-06015

9046400165

main90464-00165

9165140616

main91651-40616

9351014010

main93510-14010

23 parts on this diagram · 1 diagram in section
