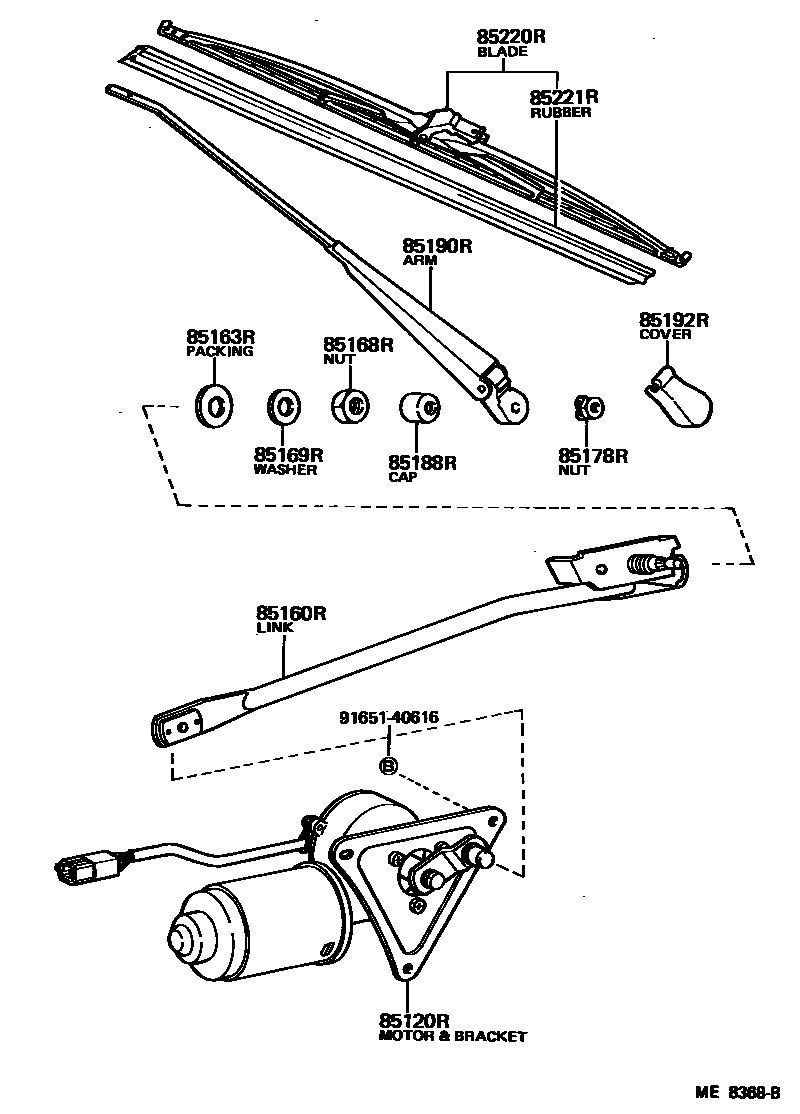

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85120-95703iKM20..05S..ARL198204-198304

85160RLINK ASSY, REAR WIPER

main85160-95703iKM20..05S..ARL198204-198304

85163RPACKING, REAR WIPER PIVOT, NO.1

main85185-25040iKM20..05S..ARL198204-198304

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main85168-55010iKM20..05S..ARL198204-198304

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90209-12002iKM20..05S..ARL198204-198304

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iKM20..05S..ARL198204-198304

85188RCAP, REAR WIPER PIVOT, NO.1

main85247-87501iKM20..05S..ARL198204-198304

85190RARM ASSY, REAR WIPER

main85190-95705iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main85190-95712iKM20..05S..ARL198210-198304

85192RCOVER, REAR WIPER ARM

main85195-95700iKM20..05S..ARL198204-198304

85220RBLADE ASSY, REAR WIPER

main85220-95701iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main85220-95711iKM20..LHD..V4D..GEN198311-198508

PORTUGAL SPEC

main85220-95A07iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198103-198210

*FRG

85221RBLADE, REAR WIPER

main85221-95A02iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198103-198210

*FRG

9165140616

main91651-40616

12 parts on this diagram · 1 diagram in section
