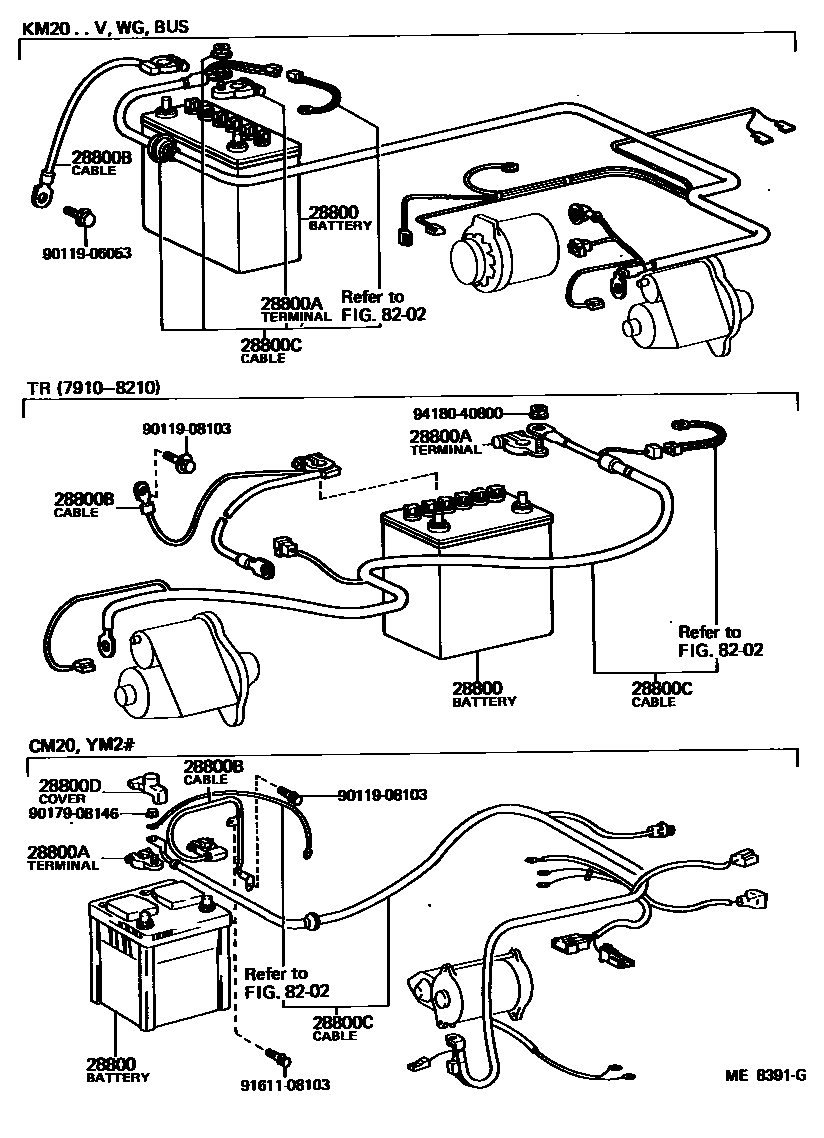

BATTERY & BATTERY CABLE

28800BATTERY

main28800-13010i4K..KM20..TR..GEN197910-198210

NS40SL(12V 30AH-20HR)

main28800-13060i4K..KM20..(HRF,SRF)..GEN197910-198210

28B19R,NS40S(12V 30AH-20HR)

main28800-13110i4K..KM20..GEN198210-198508

28B19R(S),NS40S(S)(12V 30AH-20HR)

main28800-13140i4K..KM20..LHD198210-198508

46B24R(S),NS60(S)(12V 45AH-20HR)

main28800-13160i4K,2YC..KM20,YM21..ARL198210-198508

34B19R,NS40ZA(12V 33AH-20HR)

main28800-14030i1C..CM20..RHD198210-198305

50D20R,55D20R-MF(12V 50AH-20HR)

main28800-24030i4K..KM20..V4D..ARL197910-198210

34B19R,NS40ZA(12V 33AH-20HR)

main28800-26040i4K..KM20..03S..ARL197910-198210

34B19L,NS40ZAL(12V 33AH-20HR)

main28800-33050i4K..KM20..LHD..09S198012-198104

46B24R,NS60(12V 45AH-20HR)

main28800-33071i4K..KM20..EUR197910-198508

32C24R,NS40(12V 40AH-20HR)

main28800-43090i1C..CM20..LHD198210-198305

50D20L-MF(12V 50AH-20HR)

main28800-54100i1C..CM20..RHD198305-198502

NX110-5MF(12V 65AH-20HR)

main28800-54110i1C..CM20..05S;1C..CM20..HRF..5F..02S;1C..CM20..LHD..SRF..02S198305-198502

NX110-5LMF(12V 65AH-20HR)

main28800-54220i1C..CM20..RHD198502-198508

80D26R,NX110-5MF(12V 65AH-20HR)

main28800-64070i1C..CM20..LHD198210-198508

95D31L,NX120-7L-MF(12V 65AH-20HR)

28800ATERMINAL, BATTERY POSITIVE

main90982-05004i4K..KM20..ARL,GEN197910-198210

main90982-05005i4K..KM20..4F;4K..KM20..SRF..4H..EUR;4K..KM20..HRF..VSP..4H..EUR;4K..KM20..HRF..4H..(05S,07S)..EUR197910-198210

28800BCABLE, BATTERY TO GROUND

main82046-95703i2YC..YM21198311-198508

main82046-95705i1Y..YM20198402-198508

main90982-02185i4K..KM20..EUR197910-198508

main90982-02187i4K..KM20..(HRF,SRF)..(ARL,GEN)197910-198508

main90982-02192i4K..KM20..TR197910-198210

main90982-02253i1C..CM20..RHD198210-198508

main90982-02254i1C..CM20..LHD198210-198508

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-95703i4K..KM20..RHD..(ARL,GEN)198210-198508

main82021-95704i4K..KM20..LHD..GEN198210-198508

main82021-95705i4K..KM20..V4D..4F198210-198508

EEC SPEC

main82021-95706i2YC..YM21198311-198508

main82021-95708i1C..CM20..RHD..EUR198210-198508

main82021-95709i1C..CM20..RHD..(ARL,GEN)198210-198508

main82021-95710i1C..CM20..LHD..EUR198210-198508

main82021-95711i1C..CM20..LHD..GEN198210-198508

main82021-95718i4K..KM20..VSP..4H..EUR198210-198508

main82021-95719i4K..KM20..LHD..EUR198210-198508

main82021-95724i1Y..YM20198402-198508

main90982-01320i4K..KM20..RHD..(HRF,SRF)..(ARL,GEN)197910-198210

main90982-01321i4K..KM20..RHD..EUR197910-198210

main90982-01322i4K..KM20..LHD..GEN197910-198210

main90982-01323i4K..KM20..4F;4K..KM20..LHD..SRF..4H..EUR;4K..KM20..HRF..VSP..4H..EUR;4K..KM20..HRF..4H..(05S,07S)..EUR197910-198210

main90982-01331i4K..KM20..TR197910-198210

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-95700i1C,2YC..CM20,YM21198210-198508

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906053

main90119-06053

9011908103

main90119-08103

9017908146

main90179-08146

9161108103

main91611-08103

9418040800

main94180-40800

11 parts on this diagram · 1 diagram in section
