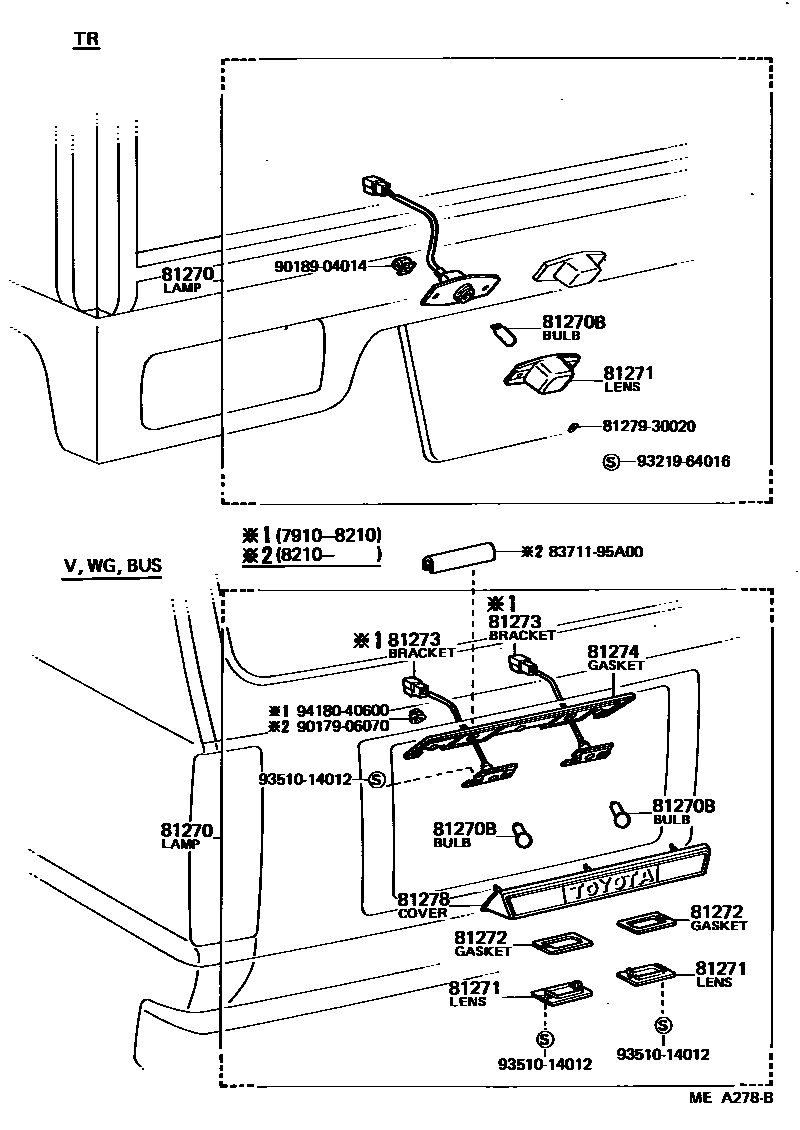

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-29425iKM20..(HRF,SRF)..(ARL,GEN)197910-198210

main81270-29435iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main81270-29455×2iKM20..TR197910-198210

main81270-29875iCM20,KM20,YM2#..ARL,GEN198210-198508

main81270-29885iCM20,KM20..EUR198210-198508

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11050×2iCM20,KM20..EUR197910-198508

12V 5W,12V 5W

main99132-11075×2iCM20,KM20,YM2#..(HRF,SRF)..(ARL,GEN)197910-198508

12V 7.5W,12V 7.5W

main99132-12050×2iKM20..TR197910-198210

12V 5W,12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-89110×2iKM20..TR197910-198210

main81271-95700×2iCM20,KM20,YM2#..HRF,SRF197910-198508

81272GASKET, LICENSE PLATE LAMP LENS

main81272-95700×2iCM20,KM20,YM2#..HRF,SRF197910-198508

81273BRACKET, LICENSE PLATE LAMP

main81273-95700×2iKM20..(HRF,SRF)..(ARL,GEN)197910-198210

main81273-95701×2iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

81274GASKET, LICENSE PLATE LAMP BODY

main81274-95700iCM20,KM20,YM2#..HRF,SRF197910-198508

81278COVER, LICENSE PLATE LAMP

main81276-95700iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

main81276-95706iCM20,KM20,YM2#198210-198508

8127930020WASHER, SIDE TURN SIGNAL LAMP

main81279-30020

8371195A00

main83711-95A00

9017906070

main90179-06070

9018904014

main90189-04014

9321964016

main93219-64016

9351014012

main93510-14012

9418040600

main94180-40600

14 parts on this diagram · 1 diagram in section
