SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0007 1 0009 1 0011 1 0012 1 0014 1 0015 1 0016 1 0017 1 0018 1 0020 1 0021 1 0022 1 0023 1 0024 1 0025 1 0026 1 0027 1 0028 1

70011CUSHION ASSY, NO.1 SEAT

main71110-87401iKM20..TR..GEN197910-198210

RH,VL,T=0.6

main71110-87403iKM20..TR197910-198210

RH,VL,T=1.5

main71110-95701iKM20..RHD..V..GEN198101-198210

RH,VL,T=0.6

main71110-95707iKM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S)197910-198101

RH,VL,T=1.5

main71110-95708iKM20..07S197910-198101

RH,VL

main71110-95709iKM20..07S;KM20..02S..ARL197910-198101

RH,FB

main71110-95720iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S)..(EUR,GEN)198101-198210

RH,VL,T=1.5

main71110-95721iKM20..05S..ARL198204-198210

RH,FB

main71110-95722iKM20..LHD..V..GEN198101-198210

RH,VL,T=0.6

main71110-95723iKM20..WG..STD198101-198210

RH,VL

main71110-95724iKM20..WG198101-198210

RH,FB

main71110-95736iCM20,KM20..V..GEN198210-198508

RH,VL,T=0.6

main71110-95737iCM20..RHD..EUR198409-198508

RH,VL,T=1.5

main71110-95739iKM20,YM21..(05S,08S)..ARL198210-198508

RH,FB

main71110-95747iCM20,KM20..HRF..4H..EUR198409-198508

RH,VL,T=1.5

main71210-87401iKM20..TR..GEN197910-198210

LH,VL,T=0.6

main71210-87403iKM20..03S..ARL197910-198210

LH,VL,T=1.5

main71210-87404iKM20..TR..GEN197910-198210

LH,VL,T=1.5

main71210-95700iKM20..LHD..V..GEN197910-198101

LH,VL,T=0.6

main71210-95702iKM20..RHD..V..GEN197910-198210

LH,VL,T=0.6

main71210-95708iKM20..RHD..V4D..(ARL,EUR)197910-198101

LH,VL,T=1.5

main71210-95709iKM20..RHD..(HRF,SRF)..GEN197910-198210

LH,VL,T=1.5

main71210-95710iKM20..07S197910-198101

LH,VL

main71210-95711iKM20..07S;KM20..02S..ARL197910-198101

LH,FB

main71210-95721iKM20..RHD..EUR;KM20..02S..ARL198101-198210

LH,VL,T=1.5

main71210-95722iKM20..05S..ARL198204-198210

LH,FB

main71210-95723iKM20..LHD..V..GEN198101-198210

LH,VL,T=0.6

main71210-95724iKM20..WG..STD198101-198210

LH,VL

main71210-95725iKM20..WG198101-198210

LH,FB

main71210-95735iKM20..RHD..V..GEN198210-198508

LH,VL,T=0.6

main71210-95743iKM20..RHD..GEN198210-198508

LH,VL,T=1.5

main71210-95747iKM20..VSP..4H..EUR198210-198508

LH,VL

main71210-95749iCM20,KM20..LHD..V..GEN198210-198508

LH,VL,T=0.6

main71210-95750iKM20..05S..ARL198210-198508

LH,FB

main71210-95751iCM20..RHD198210-198508

LH,VL,T=1.5

main71210-95764iCM20..RHD..GEN198210-198508

LH,VL,T=0.6

main71210-95765iCM20..HRF..02S..EUR;KM20..HRF..05S..EUR198211-198409

FINLAND SPEC,LH

main71210-95766iCM20..SRF..06S198311-198411

HONG KONG SPEC,LH,VL,T=0.6

main71210-95769iYM21..08S198311-198508

LH,FB

main71210-95770iYM2#..V4D198311-198508

LH,VL

main71210-95773iCM20..SRF..06S198410-198508

HONG KONG SPEC,LH,VL,T=1.5

main71210-95774iCM20..SRF..06S198411-198508

HONG KONG SPEC,LH,VL,T=0.6

main71310-95700iKM20..09S198012-198101

CTR,VL,T=1.5

main71310-95701iKM20..LHD..V..GEN198101-198210

CTR,VL,T=0.6

main71310-95702iKM20..LHD..V..GEN198210-198508

CTR,VL

main71310-95703iKM20..LHD..09S198210-198508

CTR,VL

70012BACK ASSY, NO.1 SEAT

main71150-87401iKM20..TR..GEN197910-198210

RH,VL,T=0.6

main71150-87403iKM20..TR197910-198210

RH,VL,T=1.5

main71150-95701iKM20..RHD..V..GEN197910-198210

RH,VL,T=0.6

main71150-95707iKM20..02S..ARL;KM20..RHD..(HRF,SRF)..(EUR,GEN)197910-198210

RH,VL,T=1.5

main71150-95708iKM20..07S197910-198101

RH,VL

main71150-95709iKM20..LHD..GEN198101-198210

RH,VL,T=1.5

main71150-95710iKM20..LHD..V..GEN197910-198210

RH,VL,T=0.6

main71150-95711iKM20..07S;KM20..02S..ARL197910-198101

RH,FB

main71150-95721iKM20..V..4F;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..05S..EUR;KM20..LHD..V..SRF..4H..EUR198101-198210

RH,VL,T=1.5

main71150-95722iKM20..WG..STD198101-198210

RH,VL

main71150-95723iKM20..WG198101-198210

RH,FB,W/HEADREST

main71150-95724iKM20..05S..ARL198204-198210

RH,FB

main71150-95739iCM20,KM20..RHD..V..GEN198210-198508

RH,VL,T=0.45

main71150-95740iCM20,KM20,YM21..02S..ARL198210-198508

RH,VL

main71150-95741iKM20..05S..ARL198210-198508

RH,FB

main71150-95742iCM20,KM20..LHD..V..GEN198210-198508

RH,VL,T=0.45

main71150-95743iCM20,KM20..LHD..GEN198210-198508

RH,VL,T=1.5

main71150-95744iCM20,KM20..LHD..V..(4F,5F)198210-198508

RH,VL,T=1.5

main71150-95745iKM20..08S198210-198508

RH,FB

main71150-95755iCM20,KM20..HRF..4H..EUR198409-198508

RH,VL,T=1.5

main71150-95758iYM21..08S198311-198508

RH,FB

main71250-87401iKM20..TR..GEN197910-198210

LH,VL,T=0.6

main71250-87403iKM20..03S..ARL197910-198210

LH,VL,T=1.5

main71250-87404iKM20..TR..GEN197910-198210

LH,VL,T=1.5

main71250-95704iKM20..LHD..V..GEN197910-198101

LH,VL,T=0.6

main71250-95706iKM20..RHD..V..GEN197910-198210

LH,VL,T=0.6

main71250-95712iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S)197910-198101

LH,VL,T=1.5

main71250-95713iKM20..RHD..(HRF,SRF)..GEN197910-198210

LH,VL,T=1.5

main71250-95714iKM20..07S197910-198101

LH,VL

main71250-95715iKM20..07S;KM20..02S..ARL197910-198101

LH,FB

main71250-95724iKM20..05S..ARL198204-198210

LH,FB

main71250-95725iKM20..WG..STD198101-198210

LH,VL

main71250-95726iKM20..WG198101-198210

LH,FB,W/HEADREST

main71250-95727iKM20..RHD..EUR;KM20..02S..ARL198101-198210

LH,VL,T=1.5

main71250-95728iKM20..LHD..V..GEN198101-198210

LH,VL,T=0.6

main71250-95741iKM20..RHD..V..GEN198210-198508

LH,VL

main71250-95747iKM20..RHD..09S198210-198508

LH,VL

main71250-95748iCM20..GEN198210-198508

LH,VL

main71250-95749iKM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F)198409-198508

LH,VL,T=1.5

main71250-95752iKM20..08S198210-198508

LH,FB

main71250-95758iKM20..05S..ARL198210-198508

LH,FB

main71250-95760iCM20,KM20..HRF..4H..EUR198409-198508

LH,VL,T=1.5

main71250-95762iYM21..08S198311-198508

LH,FB

main71350-95702iKM20..09S198012-198101

CTR,VL,T=1.5

main71350-95703iKM20..LHD..V..GEN198101-198210

CTR,VL,T=0.6

main71350-95709iKM20..LHD..V..GEN198210-198508

CTR,VL

main71350-95710iKM20..LHD..09S198210-198508

CTR,VL

main71350-95715iCM20..SRF..06S198311-198508

HONG KONG SPEC,CTR,VL,T=0.6

main71350-95718iCM20..SRF..06S198410-198508

HONG KONG SPEC,CTR,VL,T=1.5

70012ACUSHION(FOR NO.1 SEATBACK)

main71268-95702×2iKM20..RHD..GEN197910-198508

70012BBAND, ENGINE SERVICE HOLE COVER SUPPORT

main58936-95703-05iCM20,KM20,YM21..RHD..(ARL,EUR)198210-198508

BEIGE,BEIGE

sub58936-95J00

main58936-95703-06iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210

BROWN,BROWN

sub58936-95J00

main71240-95700iKM20..RHD..GEN197910-198210

main71240-95700-05iKM20..RHD..GEN198210-198508

BEIGE,BEIGE

70013COVER ASSY, NO.1 SEAT CUSHION

main71108-87403iKM20..TR..GEN197910-198210

RH,VL,T=0.6

main71108-87405iKM20..TR197910-198210

RH,VL,T=1.5

main71108-95702iKM20..V..GEN197910-198101

RH,VL,T=0.6

main71108-95708iKM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S)197910-198101

RH,VL,T=1.5

main71108-95709iKM20..07S197910-198101

RH,VL

main71108-95710iKM20..07S;KM20..02S..ARL197910-198101

RH,FB

main71108-95721iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S)..(EUR,GEN)198101-198210

RH,VL,T=1.5

main71108-95722iKM20..02S..ARL198101-198204

RH,FB

main71108-95723iKM20..LHD..V..GEN198101-198210

RH,VL,T=0.6

main71108-95724iKM20..WG..STD198101-198210

RH,VL

main71108-95725iKM20..WG198101-198210

RH,FB

main71108-95737iCM20,KM20..V..GEN198210-198508

RH,VL,T=0.6

main71108-95738iKM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F)198409-198508

RH,VL,T=1.5

main71108-95740iKM20,YM21..(05S,08S)..ARL198210-198508

RH,FB

main71108-95748iCM20..HRF..02S..EUR;KM20..HRF..05S..EUR198211-198409

FINLAND SPEC,RH

main71208-87401iKM20..TR..GEN197910-198210

LH,VL,T=0.6

main71208-87403iKM20..03S..ARL197910-198210

LH,VL,T=1.5

main71208-87404iKM20..TR..GEN197910-198210

LH,VL,T=1.5

main71208-95703iKM20..LHD..V..GEN197910-198101

LH,VL,T=0.6

main71208-95705iKM20..RHD..V..GEN197910-198210

LH,VL,T=0.6

main71208-95711iKM20..RHD..V4D..(ARL,EUR)197910-198101

LH,VL,T=1.5

main71208-95712iKM20..RHD..(HRF,SRF)..GEN197910-198210

LH,VL,T=1.5

main71208-95713iKM20..07S197910-198101

LH,VL

main71208-95714iKM20..07S;KM20..02S..ARL197910-198101

LH,FB

main71208-95724iKM20..RHD..EUR;KM20..02S..ARL198101-198210

LH,VL,T=1.5

main71208-95725iKM20..05S..ARL198204-198210

LH,FB

main71208-95726iKM20..LHD..V..GEN198101-198210

LH,VL,T=0.6

main71208-95727iKM20..WG..STD198101-198210

LH,VL

main71208-95728iKM20..WG198101-198210

LH,FB

main71208-95738iKM20..RHD..V..GEN198210-198508

LH,VL,T=0.6

main71208-95746iKM20..RHD..GEN198210-198508

LH,VL,T=1.5

main71208-95750iKM20..VSP..4H..EUR198210-198508

LH,VL

main71208-95752iCM20,KM20..LHD..V..GEN198210-198508

LH,VL,T=0.6

main71208-95753iKM20..05S..ARL198210-198508

LH,FB

main71208-95754iCM20..RHD198210-198508

LH,VL,T=1.5

main71208-95766iCM20..RHD..GEN198210-198508

LH,VL,T=0.6

main71208-95767iCM20,KM20..HRF..4H..EUR198409-198508

LH,VL,T=1.5

main71208-95768iCM20..SRF..06S198311-198411

HONG KONG SPEC,LH,VL,T=0.6

main71208-95771iYM21..08S198311-198508

LH,FB

main71208-95772iYM2#..V4D198311-198508

LH,VL

main71208-95775iCM20..SRF..06S198410-198508

HONG KONG SPEC,LH,VL,T=1.5

main71208-95776iCM20..SRF..06S198411-198508

HONG KONG SPEC,LH,VL,T=0.6

main71340-95701iKM20..09S198012-198101

CTR,VL,T=1.5

main71340-95702iKM20..LHD..V..GEN198101-198210

CTR,VL,T=0.6

main71340-95703iKM20..LHD..V..GEN198210-198508

CTR,VL

main71340-95704iKM20..LHD..09S198210-198508

CTR,VL

70014COVER ASSY, NO.1 SEATBACK

main71109-87403iKM20..TR..GEN197910-198210

RH,VL,T=0.6

main71109-87405iKM20..TR197910-198210

RH,VL,T=1.5

main71109-95701iKM20..V..GEN197910-198210

RH,VL,T=0.6

main71109-95707iKM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S)197910-198101

RH,VL,T=1.5

main71109-95709iKM20..07S197910-198101

RH,VL

main71109-95710iKM20..07S;KM20..02S..ARL197910-198101

RH,FB

main71109-95720iKM20..V..4F;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..05S..EUR;KM20..LHD..V..SRF..4H..EUR198101-198210

RH,VL,T=1.5

main71109-95721iKM20..WG..STD198101-198210

RH,VL

main71109-95722iKM20..WG198101-198210

RH,FB

main71109-95723iKM20..02S..ARL198101-198204

RH,FB

main71109-95733iCM20,KM20..LHD..V..GEN198210-198508

RH,VL,T=0.45

main71109-95738iCM20,KM20..RHD..V..GEN198210-198508

RH,VL,T=0.45

main71109-95739iKM20..VSP..4H..EUR;CM20,KM20..V..(4F,5F)198210-198508

RH,VL

main71109-95741iCM20,KM20..LHD..GEN198210-198508

RH,VL,T=1.5

main71109-95748iKM20,YM21..(05S,08S)..ARL198210-198508

RH,FB

main71109-95750iCM20..HRF..02S..EUR;KM20..HRF..05S..EUR198211-198409

FINLAND SPEC,RH

main71209-87401iKM20..TR..GEN197910-198210

LH,VL,T=0.6

main71209-87403iKM20..03S..ARL197910-198210

LH,VL,T=1.5

main71209-87404iKM20..TR..GEN197910-198210

LH,VL,T=1.5

main71209-95700iKM20..LHD..V..GEN197910-198210

LH,VL,T=0.6

main71209-95702iKM20..RHD..V..GEN197910-198210

LH,VL,T=0.6

main71209-95708iKM20..V..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,09S)197910-198210

LH,VL,T=1.5

main71209-95709iKM20..RHD..(HRF,SRF)..GEN197910-198210

LH,VL,T=1.5

main71209-95710iKM20..07S197910-198101

LH,VL

main71209-95711iKM20..07S;KM20..02S..ARL197910-198101

LH,FB

main71209-95720iKM20..02S..ARL198101-198204

LH,FB

main71209-95721iKM20..WG..STD198101-198210

LH,VL

main71209-95722iKM20..WG198101-198210

LH,FB

main71209-95734iKM20..RHD..V..GEN198210-198508

LH,VL

main71209-95740iKM20..RHD..09S198210-198508

LH,VL

main71209-95741iCM20..GEN198210-198508

LH,VL

main71209-95742iKM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F)198409-198508

LH,VL,T=1.5

main71209-95751iKM20,YM21..(05S,08S)..ARL198210-198508

LH,FB

main71209-95752iCM20,KM20..HRF..4H..EUR198409-198508

LH,VL,T=1.5

main71390-95700iKM20..LHD..GEN198101-198210

CTR,VL,T=1.5

main71390-95701iKM20..LHD..V..GEN198101-198210

CTR,VL,T=0.6

main71390-95707iKM20..LHD..V..GEN198210-198508

CTR,VL

main71390-95708iKM20..LHD..09S198210-198508

CTR,VL

main71390-95713iCM20..SRF..06S198311-198508

HONG KONG SPEC,CTR,VL,T=0.6

main71390-95716iCM20..SRF..06S198410-198508

HONG HONG SPEC,CTR,VL,T=1.5

71108HINGE SUB-ASSY, FRONT SEATBACK, UPPER RH

main71025-87401iKM20..TR..GEN197910-198210

main71261-95702iKM20..RHD..(HRF,SRF)..GEN197910-198508

71109HINGE SUB-ASSY, FRONT SEATBACK, UPPER LH

main71026-87401iKM20..TR..GEN197910-198210

main71262-95700iKM20..RHD..(HRF,SRF)..GEN197910-198508

71165COVER, FRONT RH SEAT HINGE

main71165-95700-05iCM20,KM20,YM2#198210-198508

BEIGE,BEIGE

main71165-95700-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

BROWN,BROWN

71263SPACER, FRONT SEATBACK HINGE

main71263-95700×2iKM20..RHD..GEN197910-198508

sub71263-95701

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main71812-87401iKM20..TR197910-198210

main90468-18056iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

main90468-18071iCM20,KM20,YM2#198210-198508

sub90468-18008

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72710-87401iKM20..TR197910-198210

main72710-95700iKM20..RHD..(HRF,SRF)197910-198210

main72710-95705iCM20,KM20,YM2#..RHD198210-198508

9011908079

main90119-08079

9011908250

main90119-08250

9017908039

main90179-08039

9038612067

main90386-12067

9054005005

main90540-05005

9056008019

main90560-08019

9095001126

main90950-01126

9161160825

main91611-60825

9165140616

main91651-40616

9321915012

main93219-15012

9351015020

main93510-15020

9356015016

main93560-15016

9417110800

main94171-10800

9451100800

main94511-00800

9616000900

main96160-00900

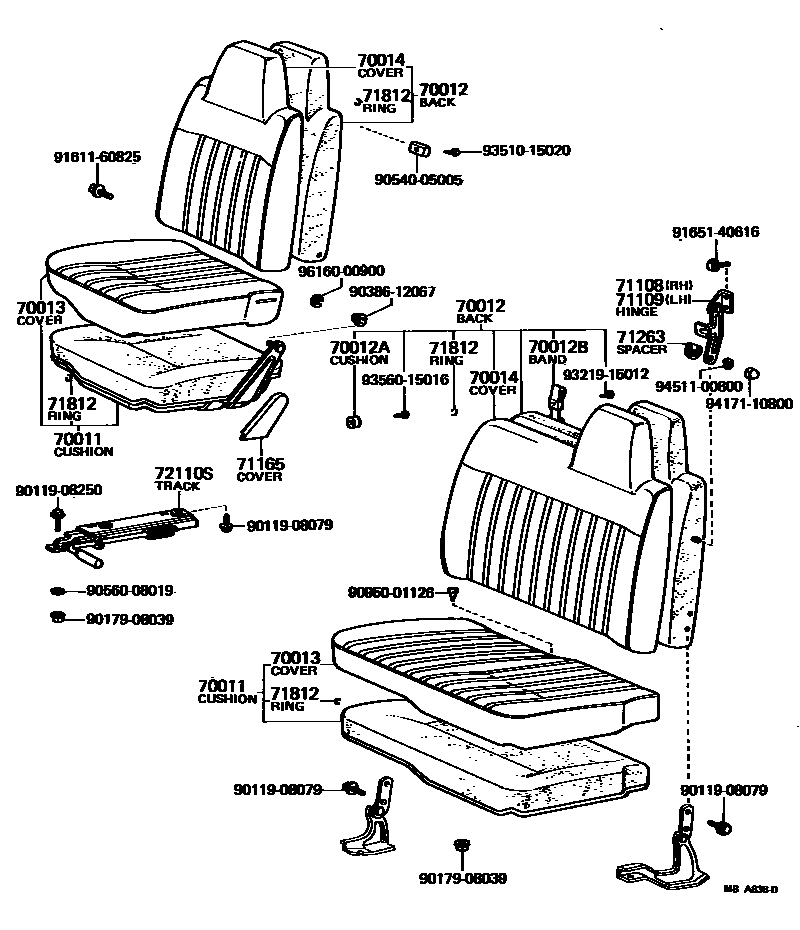

27 parts on this diagram · 22 diagrams in section
