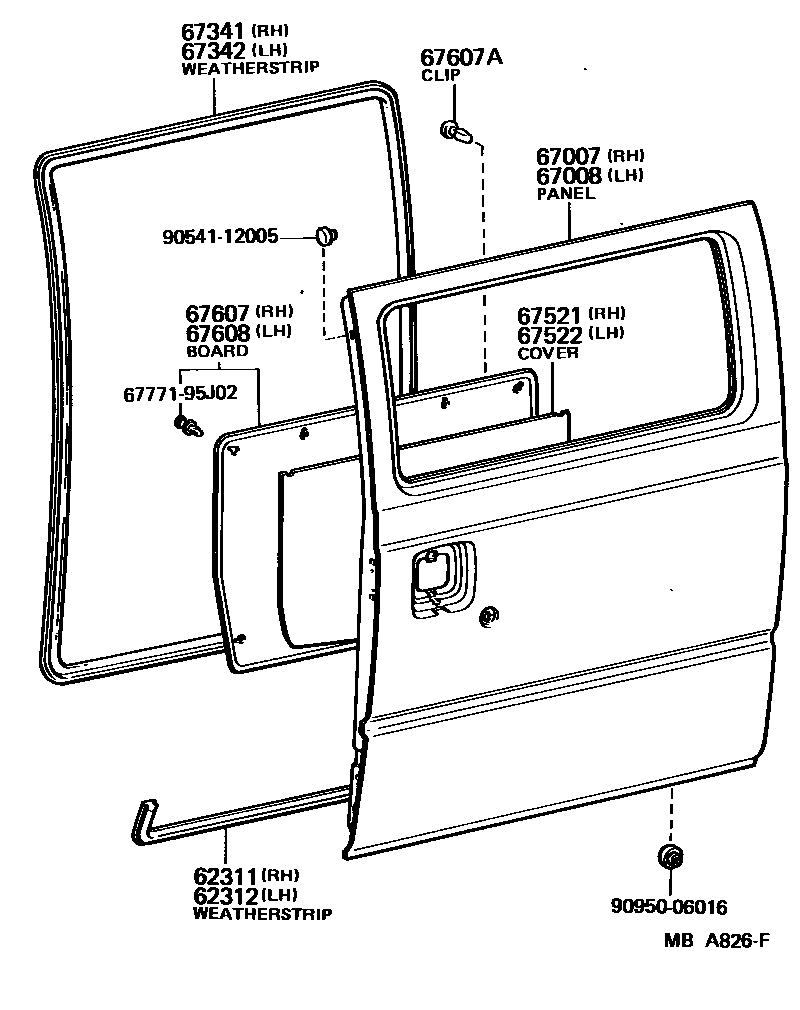

REAR DOOR PANEL & GLASS

62311WEATHERSTRIP, DOOR OPENING TRIM, LOWER RH

main62303-95700iCM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG); KM20..V5D197910-198508

62312WEATHERSTRIP, DOOR OPENING TRIM, LOWER LH

main62304-95700iCM20,YM2#..RHD;KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S); KM20..V5D198005-198508

main62344-95703iKM20..RHD..V4D; KM20..V5D197910-198005

67007PANEL SUB-ASSY, SLIDE DOOR, RH

main67003-95702iCM20,KM20..LHD..V4D..VSG; KM20..LHD..(BUS,WG); KM20..V5D..VSG197910-198508

main67003-95704iCM20,KM20..LHD..V4D..VSP; KM20..V5D..VSP197910-198508

67008PANEL SUB-ASSY, SLIDE DOOR, LH

main67004-95703iKM20..RHD..V4D..VSG..(EUR,GEN); KM20..V5D..VSG197910-198210

main67004-95705iKM20..RHD..V4D..VSP; KM20..V5D..VSP197910-198210

main67004-95710iCM20,KM20,YM21..RHD..V4D..VSP; KM20..V5D..VSP198210-198508

main67004-95712iCM20,KM20,YM20..RHD..VSG..GEN; KM20..RHD..09S; KM20..V5D..06S198210-198508

main67004-95713iKM20..05S..ARL198204-198210

main67004-95714iKM20,YM21..(05S,08S)..ARL198210-198508

67341WEATHERSTRIP, SLIDE DOOR, RH

main62341-95703iCM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG); KM20..V5D197910-198508

67342WEATHERSTRIP, SLIDE DOOR, LH

main62342-95701iCM20,YM2#..RHD;KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S); KM20..V5D197910-198508

67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH

main67833-95700iCM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG); KM20..V5D197910-198508

67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH

main67833-95700iCM20,YM2#..RHD;KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S); KM20..V5D197910-198508

67607BOARD SUB-ASSY, SLIDE DOOR TRIM, RH

main67630-95703iKM20..V4D..4F;KM20..LHD..(BUS,WG)..STD;KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S); KM20..V5D197910-198210

main67630-95703-05iKM20..VSG..02S;CM20,KM20..LHD..(05S,06S,08S,09S)198210-198508

BEIGE,BEIGE

main67630-95704iKM20..DLX198108-198210

main67631-95704iCM20,KM20..LHD..V4D; CM20,KM20..LHD..VSG..GEN; KM20..V5D..VSP198210-198508

W/FOLDING SEAT; W/O RR SEAT

67607ACLIP(FOR SLIDE DOOR TRIM BOARD)

main90467-08040×12iCM20,KM20..LHD..V4D..VSP; CM20,KM20..LHD..VSG; CM20,KM20..RHD..06S; KM20..V5D..03S198305-198508

W/O RR SEAT

main90467-09017×12iCM20,KM20..LHD..(05S,06S); CM20,KM20..LHD..V4D..VSP; CM20,KM20..RHD..06S; KM20..V5D..VSP198210-198305

W/O RR SEAT

67608BOARD SUB-ASSY, SLIDE DOOR TRIM, LH

main67632-95703iCM20,KM20,YM21..02S..ARL; CM20,KM20..RHD..V4D..(EUR,GEN); KM20..V5D..06S; KM20..V5D..VSP198210-198508

W/FOLDING SEAT; W/O RR SEAT

main67640-95705iKM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S); KM20..V5D197910-198210

main67640-95705-05iCM20,KM20,YM2#..RHD..(05S,06S,08S,09S); KM20..V5D..06S198210-198508

BEIGE,BEIGE

6777195J02WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-95J02

9054112005

main90541-12005

9095006016

main90950-06016

14 parts on this diagram · 1 diagram in section
