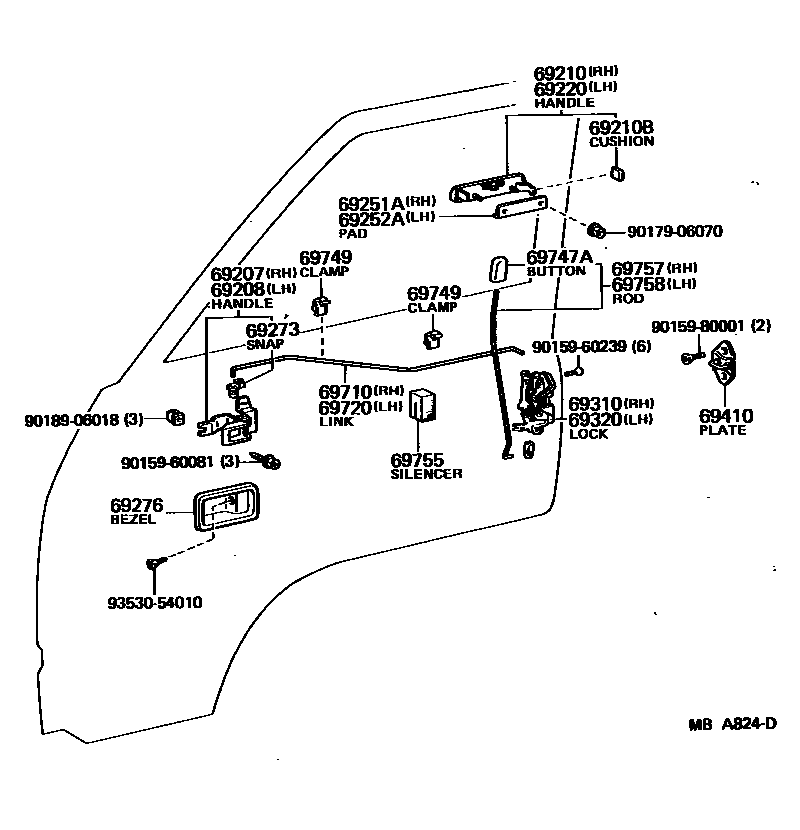

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-95701-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

BROWN,BROWN

sub69205-95701

main69205-95702-05iCM20,KM20,YM2#198210-198508

BEIGE,BEIGE

sub69205-95702

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-95701-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

BROWN,BROWN

sub69206-95701

main69206-95702-05iCM20,KM20,YM2#198210-198508

BEIGE,BEIGE

sub69206-95702

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95011iCM20,KM20,YM2#197910-198508

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main69239-95700iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95011iCM20,KM20,YM2#197910-198508

69251APAD, FRONT DOOR OUTSIDE HANDLE, NO.1 RH

main69241-95010iCM20,KM20,YM2#197910-198508

69252APAD, FRONT DOOR OUTSIDE HANDLE, NO.1 LH

main69241-95010iCM20,KM20,YM2#197910-198508

69273SNAP, DOOR INSIDE HANDLE ROD

main69279-12010iCM20,KM20,YM2#197910-198508

RH

main69279-16010iCM20,KM20,YM2#197910-198508

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-95701-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

BROWN,BROWN

sub69277-95701

sub69277-16040

main69277-95702-05iCM20,KM20,YM2#198210-198508

BEIGE,BEIGE

sub69277-95702

69310LOCK ASSY, FRONT DOOR, RH

main69310-95013iCM20,KM20,YM2#197910-198508

69320LOCK ASSY, FRONT DOOR, LH

main69320-95015iCM20,KM20,YM2#197910-198508

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-22020iCM20,KM20,YM2#197910-198508

sub69410-89103

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69715-95701iCM20,KM20,YM2#197910-198508

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69716-95701iCM20,KM20,YM2#197910-198508

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-20020-01iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

BLACK,BLACK

sub69741-20020

sub69741-32010

main69741-20020-15iCM20,KM20,YM2#198210-198508

BEIGE,BEIGE

sub69741-20020

sub69741-32010

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198209

main69749-30020iCM20,KM20,YM2#198209-198508

69755SILENCER, FRONT DOOR LOCK LINK

main69759-95500iKM20..TR197910-198210

69757ROD, FRONT DOOR LOCKING CONTROL, NO.2 RH

main69705-95700iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main69705-95700-05iCM20,KM20,YM2#198210-198508

BEIGE,BEIGE

sub69705-95700

69758ROD, FRONT DOOR LOCKING CONTROL, NO.2 LH

main69706-95700iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main69706-95700-05iCM20,KM20,YM2#198210-198508

BEIGE,BEIGE

sub69706-95700

9015960081

main90159-60081

9015960239

main90159-60239

9015980001

main90159-80001

9017906070

main90179-06070

9018906018

main90189-06018

9353054010

main93530-54010

25 parts on this diagram · 1 diagram in section
