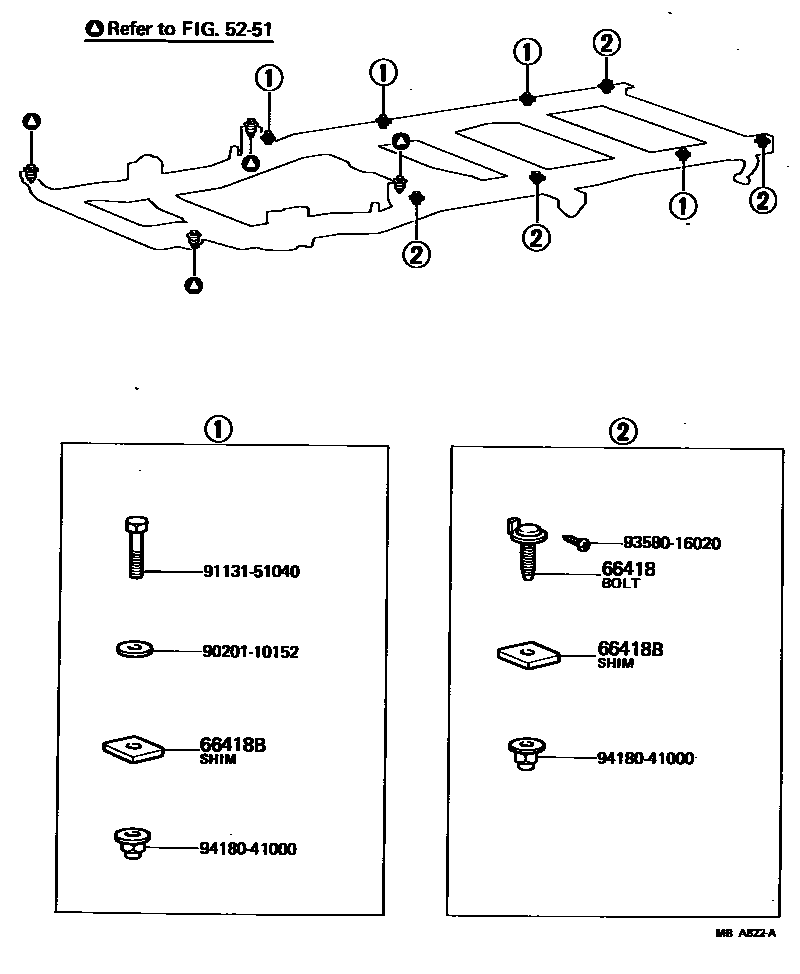

REAR BODY MOUNTING

5251CAB MOUNTING & BODY MOUNTING

→ Go to FIG 52-51

66418BOLT, MOUNTING

main66103-87401×4iKM20..TR197910-198210

66418BSHIM, MOUNTING

main66442-87401×8iKM20..TR197910-198210

9020110152

main90201-10152

9113151040

main91131-51040

9358016020

main93580-16020

9418041000

main94180-41000

7 parts on this diagram · 1 diagram in section
