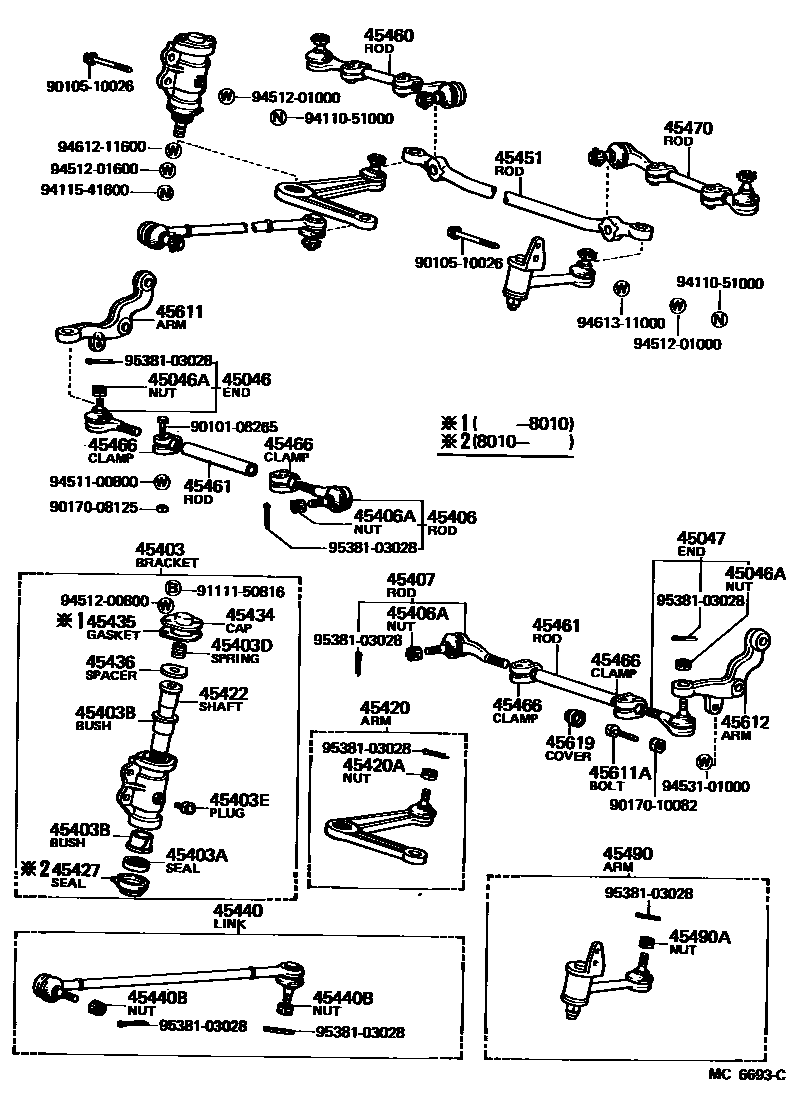

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-19135iCM20,KM20,YM2#198210-198409

main45046-29095iKM20197910-198210

main45046-29155iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198409-198508

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iCM20,KM20,YM2#197910-198508

45047END SUB-ASSY, TIE ROD, LH

main45046-19135iCM20,KM20,YM2#198210-198409

main45046-29095iKM20197910-198210

main45046-29155iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198409-198508

45403BRACKET SUB-ASSY, CENTER ARM

main45403-26020iKM20..RHD197910-198010

main45403-26021iKM20..RHD198010-198210

main45403-26030iKM20..LHD197910-198010

main45403-26031iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)198010-198210

main45403-28020iCM20,KM20,YM2#..RHD198210-198508

main45403-28030iCM20,KM20..LHD198210-198508

45403ASEAL, OIL(FOR CENTER ARM BRACKET)

main90311-25004iCM20,KM20,YM2#197910-198508

45403BBUSH(FOR CENTER ARM BRACKET)

main90386-25075×2iKM20197910-198210

45403DSPRING, COMPRESSION(FOR CENTER ARM SHAFT SET)

main90501-30369iCM20,KM20,YM2#197910-198508

45403EPLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT)

main90345-06014iCM20,KM20,YM2#197910-198508

45406ROD SUB-ASSY, TIE, RH

main45406-19016iKM20197910-198110

main45406-29125iKM20..VSP..02S;KM20..03S,05S,06S,08S,09S198110-198210

main45406-29126iCM20,KM20,YM2#198210-198409

main45406-29127iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198409-198508

45406ANUT, CASTLE(FOR TIE ROD)

main90171-12028×2iCM20,KM20,YM2#197910-198508

45407ROD SUB-ASSY, TIE, LH

main45406-19016iKM20197910-198110

main45406-29125iKM20..VSP..02S;KM20..03S,05S,06S,08S,09S198110-198210

main45406-29126iCM20,KM20,YM2#198210-198409

main45406-29127iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198409-198508

45420ARM ASSY, STEERING CENTER

main45402-29015iKM20..RHD197910-198210

main45402-29016iCM20,KM20,YM2#..RHD198210-198409

main45402-29017iCM20,KM20,YM2#..RHD198409-198508

main45402-29025iKM20..LHD197910-198210

main45402-29026iCM20,KM20..LHD198210-198409

main45402-29027iCM20..LHD;KM20..LHD..HRF;KM20..V4D..SRF..4F..02S;KM20..LHD..SRF..(03S,05S,06S,08S,09S)198409-198508

45420ANUT, CASTLE(FOR STEERING CENTER ARM)

main90171-12028iCM20,KM20,YM2#197910-198508

45422SHAFT, CENTER ARM

main45422-26010iCM20,KM20,YM2#197910-198508

45427SEAL, CENTER ARM DUST, LOWER

main45427-28010iCM20,KM20,YM2#198010-198508

45434CAP, CENTER ARM BRACKET

main45434-26010iKM20197910-198010

main45434-26011iCM20,KM20,YM2#198010-198508

45435GASKET, CENTER ARM BRACKET CAP

main45435-26010iKM20197910-198010

45436SEAT, CENTER ARM SHAFT

main45436-26010iCM20,KM20,YM2#198210-198508

UPR

main45436-28010iCM20,KM20,YM2#198210-198508

LWR

45440LINK ASSY, STEERING DRAG

main45440-29095iKM20..RHD197910-198210

main45440-29096iCM20,KM20,YM2#..RHD198210-198409

main45440-29097iCM20,KM20,YM2#..RHD198409-198508

main45440-29105iKM20..LHD197910-198210

main45440-29106iCM20,KM20..LHD198210-198409

main45440-29107iCM20..LHD;KM20..LHD..HRF;KM20..V4D..SRF..4F..02S;KM20..LHD..SRF..(03S,05S,06S,08S,09S)198409-198508

45440BNUT, CASTLE(FOR STEERING DRAG LINK)

main90171-12028×2iCM20,KM20,YM2#197910-198508

45451ROD, STEERING RELAY

main45451-27040iKM20..RHD197910-198210

main45451-27041iYM21;CM20,KM20,YM20..BUS,V198210-198508

main45451-27050iKM20..LHD197910-198210

main45451-27061iKM20..08S198210-198508

45460ROD ASSY, TIE, RH

main45460-29175iKM20197910-198110

main45460-29176iKM20..VSP..02S;KM20..03S,05S,06S,08S,09S198110-198210

main45460-29177iCM20,KM20,YM2#198210-198409

main45460-29178iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198409-198508

45461ROD, STEERING TIE

main45465-12020×2iKM20197910-198110

main45465-27030×2iKM20..VSP..02S;KM20..03S,05S,06S,08S,09S198110-198210

main45465-27031×2iCM20,KM20,YM2#198210-198508

45466CLAMP, TIE ROD END

main45466-22010×4iKM20197910-198210

main45466-28010×4iCM20,KM20,YM2#198210-198508

45470ROD ASSY, TIE, LH

main45460-29175iKM20197910-198110

main45460-29176iKM20..VSP..02S;KM20..03S,05S,06S,08S,09S198110-198210

main45470-29055iCM20,KM20,YM2#198210-198409

main45470-29056iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198409-198508

45490ARM ASSY, STEERING IDLER

main45490-29315iKM20..RHD197910-198101

main45490-29325iKM20..LHD197910-198101

main45490-29326iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)198101-198210

main45490-29327iCM20,KM20..LHD198210-198508

main45490-29375iKM20..RHD198101-198210

main45490-29376iCM20,KM20,YM2#..RHD198210-198508

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iCM20,KM20,YM2#197910-198508

45611ARM, STEERING KNUCKLE, RH

main45611-27030iKM20197910-198210

main45611-28020iCM20,KM20,YM2#198210-198508

45611ABOLT, KNUCKLE STOPPER

main90106-10032×2iCM20,KM20,YM2#197910-198508

45612ARM, STEERING KNUCKLE, LH

main45612-27030iKM20197910-198210

main45612-28020iCM20,KM20,YM2#198210-198508

45619COVER, KNUCKLE STOPPER

main45619-14020×2iCM20,KM20,YM2#197910-198508

9010108265

main90101-08265

9010510026

main90105-10026

9017008125

main90170-08125

9017010082

main90170-10082

9111150816

main91111-50816

9411051000

main94110-51000

9411541600

main94115-41600

9451100800

main94511-00800

9451200800

main94512-00800

9451201000

main94512-01000

9451201600

main94512-01600

9453101000

main94531-01000

9461211600

main94612-11600

9461311000

main94613-11000

9538103028

main95381-03028

46 parts on this diagram · 2 diagrams in section
