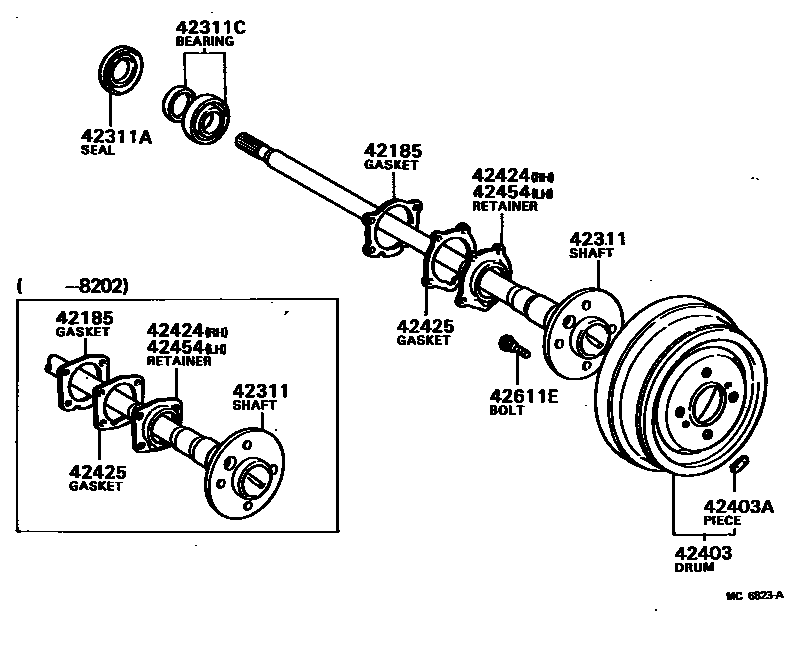

REAR AXLE SHAFT & HUB

42185GASKET, REAR AXLE HOUSING END

main42185-14020iCM20,KM20,YM2#198203-198508

main42185-22020iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198203

42311SHAFT, REAR AXLE

main42311-22100iCM20,KM20,YM2#197910-198508

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059iCM20,KM20,YM2#197910-198508

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-27010iCM20,YM2#..RHD..(02S,05S,08S)..(ARL,GEN)198311-198508

main04421-30011iCM20,KM20..4F,4H197910-198501

42403DRUM SUB-ASSY, REAR BRAKE

main42431-27020iCM20,KM20,YM2#197910-198508

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01020iCM20,KM20,YM2#197910-198508

20G,20G

main90937-01021iCM20,KM20,YM2#197910-198508

40G,40G

main90937-01023iCM20,KM20,YM2#197910-198508

10G,10G

main90937-01032iCM20,KM20,YM2#197910-198508

30G,30G

main90937-01033iCM20,KM20,YM2#197910-198508

50G,50G

main90937-01034iCM20,KM20,YM2#197910-198508

60G,60G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iCM20,KM20,YM2#198203-198508

main42424-21010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198203

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020iCM20,KM20,YM2#198203-198508

main42425-21010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198203

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iCM20,KM20,YM2#198203-198508

main42454-21010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198203

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035iCM20;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198307

main90942-02047iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198307-198508

10 parts on this diagram · 1 diagram in section
