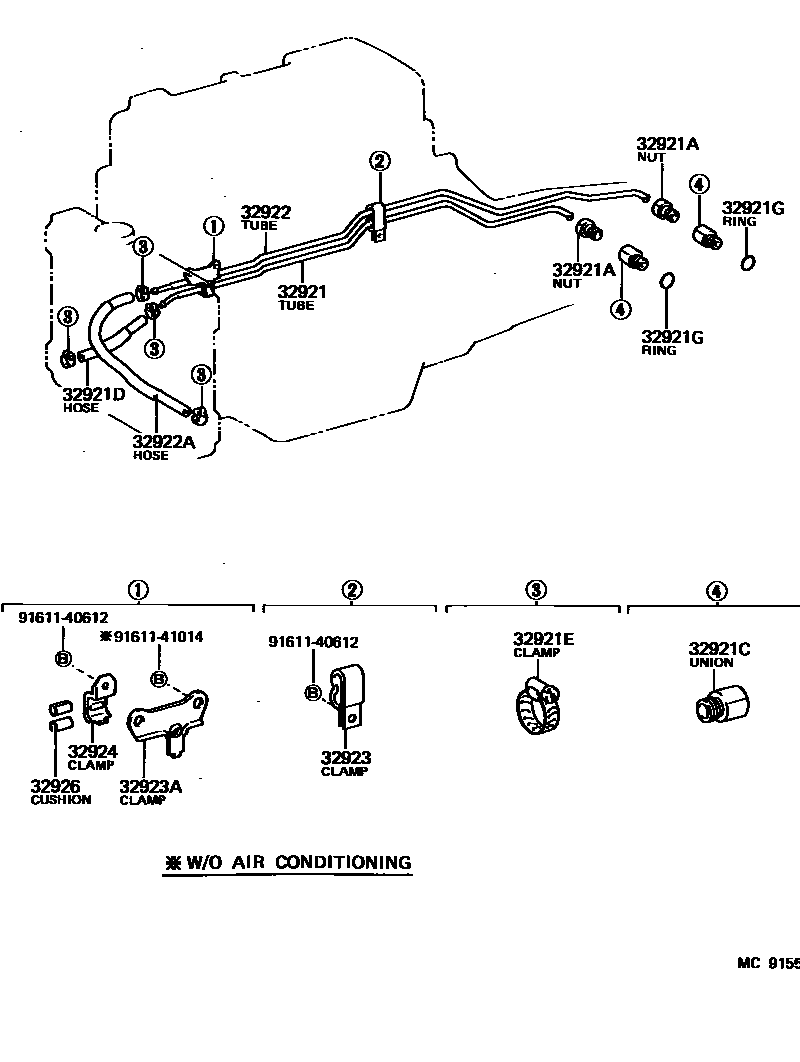

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-27010iYM21..3FC198311-198508

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-14004×2iYM21..3FC198311-198508

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007×2iYM21..3FC198311-198508

32921DHOSE(FOR OIL COOLER INLET)

main32941-27020iYM21..3FC198311-198508

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085×4iYM21..3FC198311-198508

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iYM21..3FC198311-198508

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-27010iYM21..3FC198311-198508

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-27020iYM21..3FC198311-198508

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90461-08070iYM21..3FC198311-198508

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-28020iYM21..3FC198311-198508

main32923-28030iYM21..3FC198311-198508

W/AIR CONDITIONING

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-28010iYM21..3FC198311-198508

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011×2iYM21..3FC198311-198508

L=25,ID=8

9161140612

main91611-40612

9161141014

main91611-41014

14 parts on this diagram · 1 diagram in section
