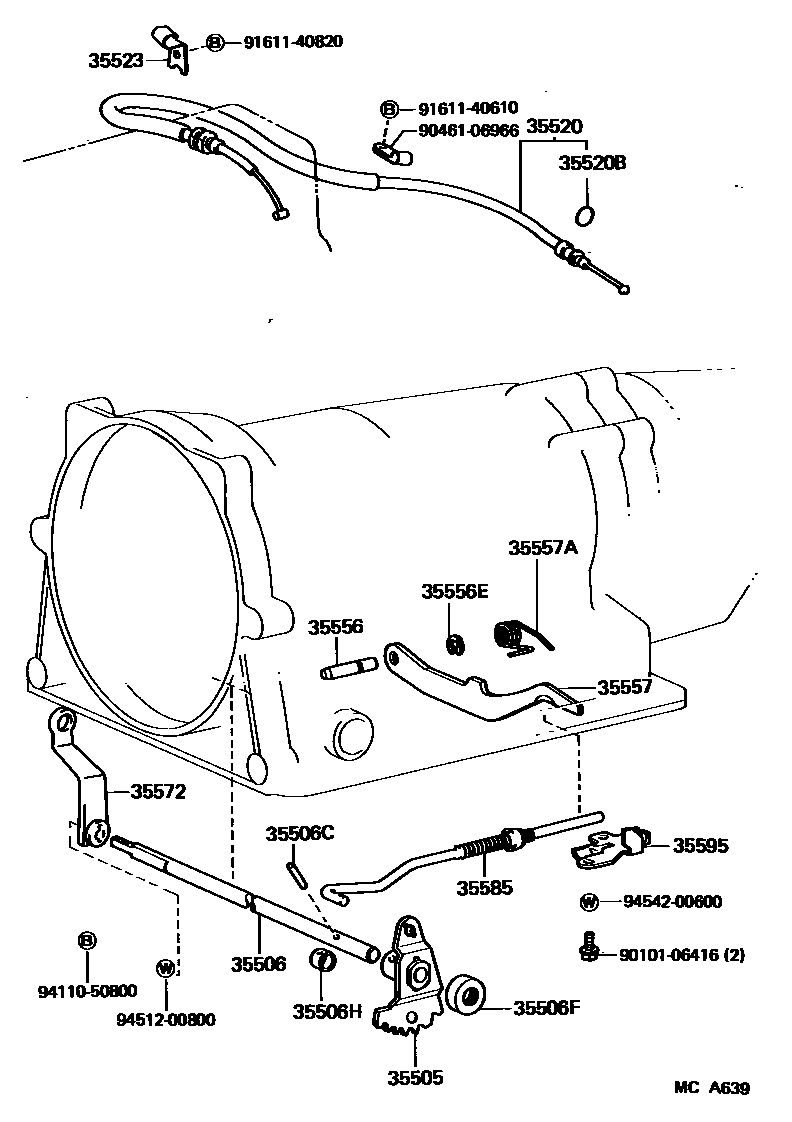

THROTTLE LINK & VALVE LEVER (ATM)

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22040iYM21..3FC198311-198508

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-40010iYM21..3FC198311-198508

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iYM21..3FC198311-198508

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11001×2iYM21..3FC198311-198508

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iYM21..3FC198311-198508

35520CABLE ASSY, THROTTLE

main35520-27010iYM21..3FC198311-198508

35520BRING, O(FOR THROTTLE CABLE)

main90301-09004iYM21..3FC198311-198508

35523CLAMP, THROTTLE CABLE

main35523-27010iYM21..3FC198311-198508

35556SHAFT, PARKING LOCK PAWL

main35556-22010iYM21..3FC198311-198508

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iYM21..3FC198311-198508

35557PAWL, PARKING LOCK

main35557-26010iYM21..3FC198311-198508

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-25001iYM21..3FC198311-198508

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-27010iYM21..3FC198311-198508

35585ROD, PARKING LOCK

main35501-22020iYM21..3FC198311-198508

35595BRACKET, PARKING LOCK PAWL

main35595-40010iYM21..3FC198311-198508

9010106416

main90101-06416

9046106966

main90461-06966

9161140610

main91611-40610

9161140820

main91611-40820

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

22 parts on this diagram · 1 diagram in section
