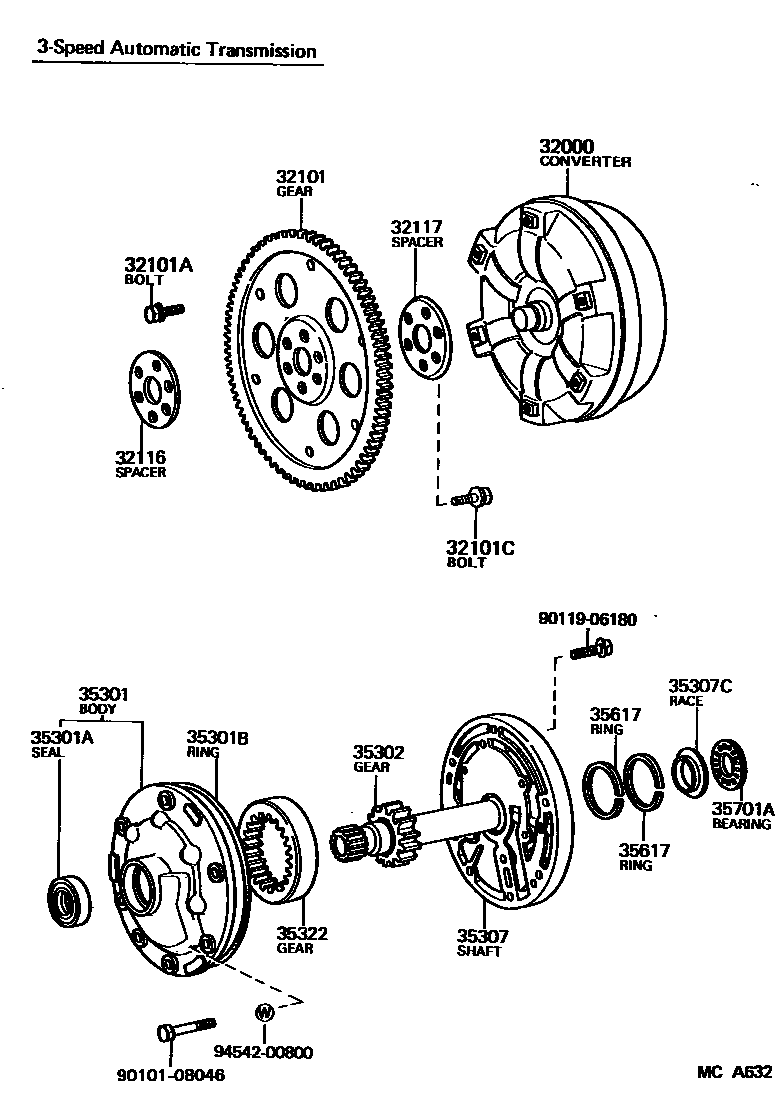

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-22020iYM21..3FC198311-198408

main32000-22021iYM21..3FC198408-198508

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-28010iYM21..3FC198311-198508

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iYM21..3FC198311-198508

*8-1.25PX12-8.4,L=12,OLIVE GREEN

main91611-60812×5iYM21..3FC198311-198508

*8-1.25PX12-7,L=12

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046×6iYM21..3FC198311-198508

*10-1.25PX23-15.5

32116SPACER, DRIVE PLATE, FRONT

main32116-28010iYM21..3FC198311-198508

32117SPACER, DRIVE PLATE, REAR

main32117-20030iYM21..3FC198311-198508

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-30030iYM21..3FC198311-198508

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iYM21..3FC198312-198508

main90311-38129iYM21..3FC198311-198312

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iYM21..3FC198311-198508

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-22010iYM21..3FC198311-198508

35307SHAFT SUB-ASSY, STATOR

main35370-22011iYM21..3FC198311-198412

main35370-22012iYM21..3FC198412-198508

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iYM21..3FC198311-198508

T=4.3

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iYM21..3FC198311-198508

T=15.286-15.235

35617RING, CLUTCH DRUM OIL SEAL

main35617-22011×2iYM21..3FC198311-198508

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iYM21..3FC198311-198508

9010108046

main90101-08046

9011906180

main90119-06180

9454200800

main94542-00800

18 parts on this diagram · 1 diagram in section
