TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

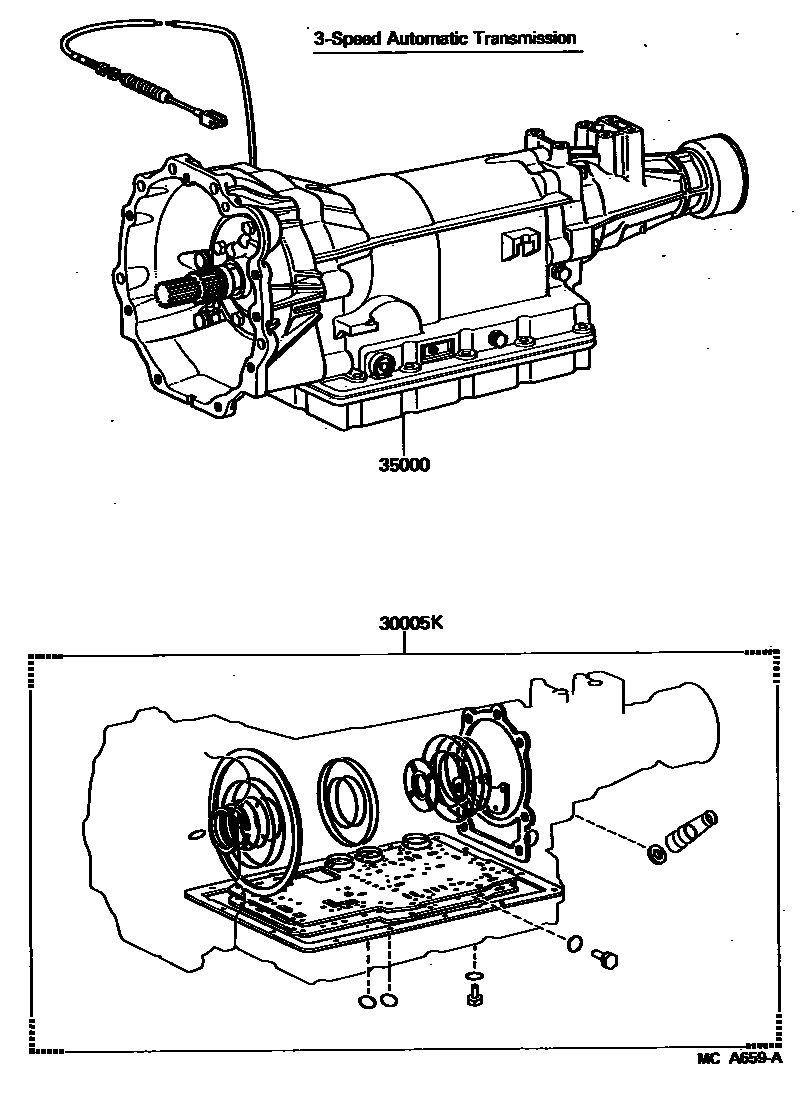

Parts diagram

30005KGASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-22023i198311-198502

main04351-22050i198502-198508

35000TRANSMISSION ASSY, AUTOMATIC

main35000-27040i198311-198508

2 parts on this diagram · 1 diagram in section
