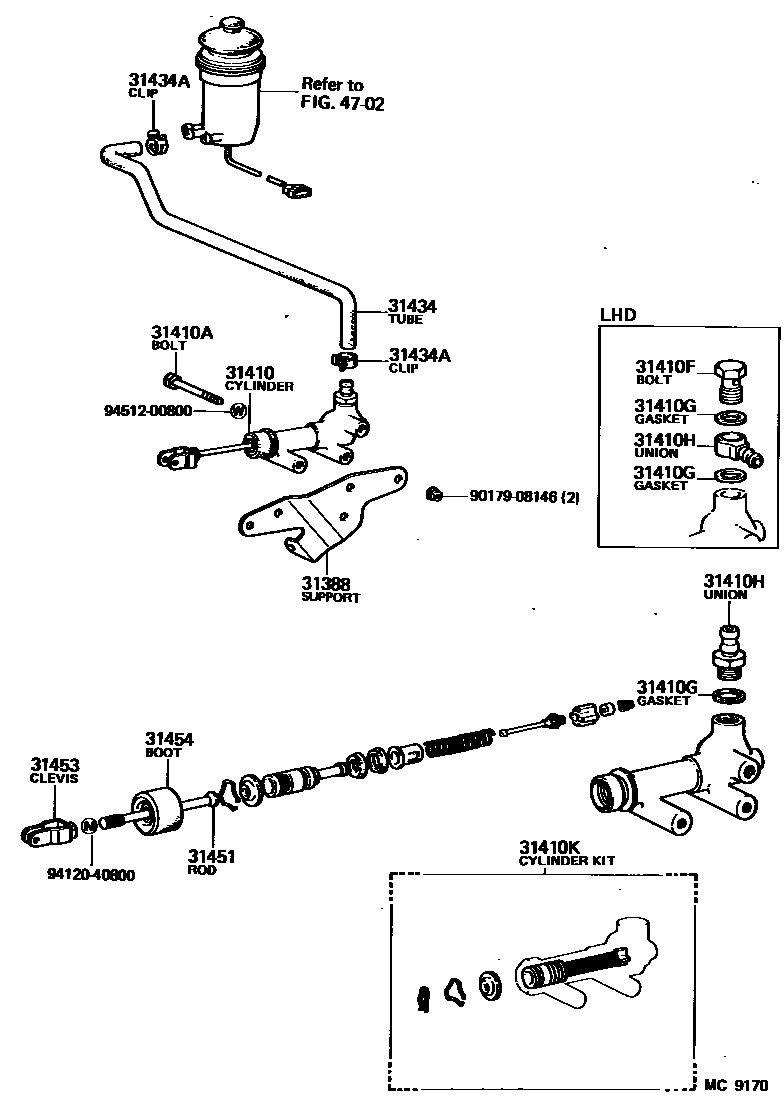

CLUTCH MASTER CYLINDER

31388SUPPORT, CLUTCH MASTER CYLINDER

main55105-95703iCM20..LHD198210-198508

main55105-95704iCM20,YM2#..RHD..MTM198210-198508

31410CYLINDER ASSY, CLUTCH MASTER

main31420-27020iYM2#..5F198311-198508

sub31420-27021

main31420-27031iCM20..RHD198210-198403

main31420-27032iCM20..RHD198403-198508

sub31420-27033

main31420-27041iCM20..LHD198210-198403

main31420-27042iCM20..LHD198403-198508

sub31420-27043

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91121-40865×2iCM20,YM2#..MTM198210-198508

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iCM20..LHD198210-198508

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242×2iCM20,YM2#..MTM198210-198508

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90404-16307iCM20,YM2#..RHD..MTM198210-198508

main90405-10125iCM20..LHD198210-198508

31410KCYLINDER KIT, CLUTCH MASTER

main04311-14010iYM2#..5F198311-198508

sub04311-14011

main04311-30080iCM20198210-198508

sub04311-14020

31434TUBE, CLUTCH RESERVOIR

main31434-27020iCM20,YM2#..RHD..MTM198210-198508

main31434-27030iCM20..LHD198210-198508

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800×2iCM20,YM2#..MTM198210-198508

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22050iYM2#..5F198311-198508

main31451-30060iCM20198210-198508

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28010iCM20198403-198412

main31404-28011iCM20198412-198508

sub31404-28012

main31404-30041iCM20198210-198403

main31453-22010iYM2#..5F198311-198508

sub31453-35010

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iCM20,YM2#..MTM198210-198508

4702

9017908146

main90179-08146

9412040800

main94120-40800

9451200800

main94512-00800

16 parts on this diagram · 1 diagram in section
