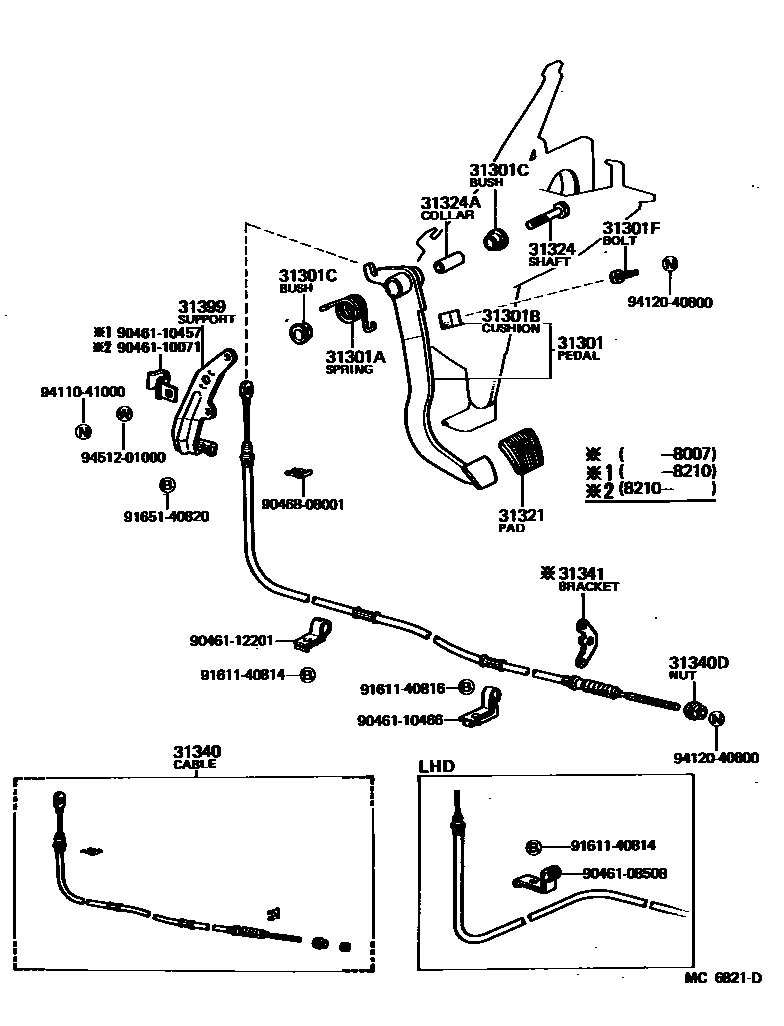

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-27050iKM20..RHD197910-198007

main31301-27051iKM20..RHD198007-198210

main31301-27052iKM20..RHD198210-198508

main31301-27060iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198108

main31301-27061iKM20..4F;KM20..LHD..GEN198108-198210

main31301-27062iKM20..LHD198210-198508

main31301-27072iCM20,YM2#..RHD..MTM198210-198508

main31301-27120iCM20..LHD198210-198508

31301ASPRING(FOR CLUTCH PEDAL)

main90508-32002iCM20,YM2#..MTM198210-198508

main90508-35386iKM20197910-198508

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main47131-10020iCM20,KM20,YM2#..MTM197910-198508

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iCM20,KM20,YM2#..MTM197910-198508

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iCM20,KM20,YM2#..MTM198208-198508

main90109-08001iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-197912

main90109-08052iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197912-198208

31321PAD, CLUTCH PEDAL

main31321-14010iCM20,KM20,YM2#..MTM197910-198508

31324SHAFT, CLUTCH PEDAL

main91111-51060iCM20,KM20,YM2#..MTM197910-198508

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iCM20,KM20,YM2#..MTM197910-198508

31340CABLE ASSY, CLUTCH RELEASE

main31340-29075iKM20..RHD197910-198508

main31340-29085iKM20..LHD197910-198508

31340DNUT, WIRE ADJUST(FOR CLUTCH RELEASE CABLE)

main31339-28010iKM20197910-198508

31341BRACKET, CLUTCH CABLE

main31341-28010iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198007

31399SUPPORT, PEDAL BRACKET CLUTCH WIRE

main55169-95702iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main55169-95703iKM20..RHD198210-198508

main55169-95704iKM20..LHD198210-198508

9046108508

main90461-08508

9046110071

main90461-10071

9046110457

main90461-10457

9046110466

main90461-10466

9046112201

main90461-12201

9046808001

main90468-08001

9161140814

main91611-40814

9161140816

main91611-40816

9165140820

main91651-40820

9411041000

main94110-41000

9412040800

main94120-40800

9451201000

main94512-01000

24 parts on this diagram · 4 diagrams in section
