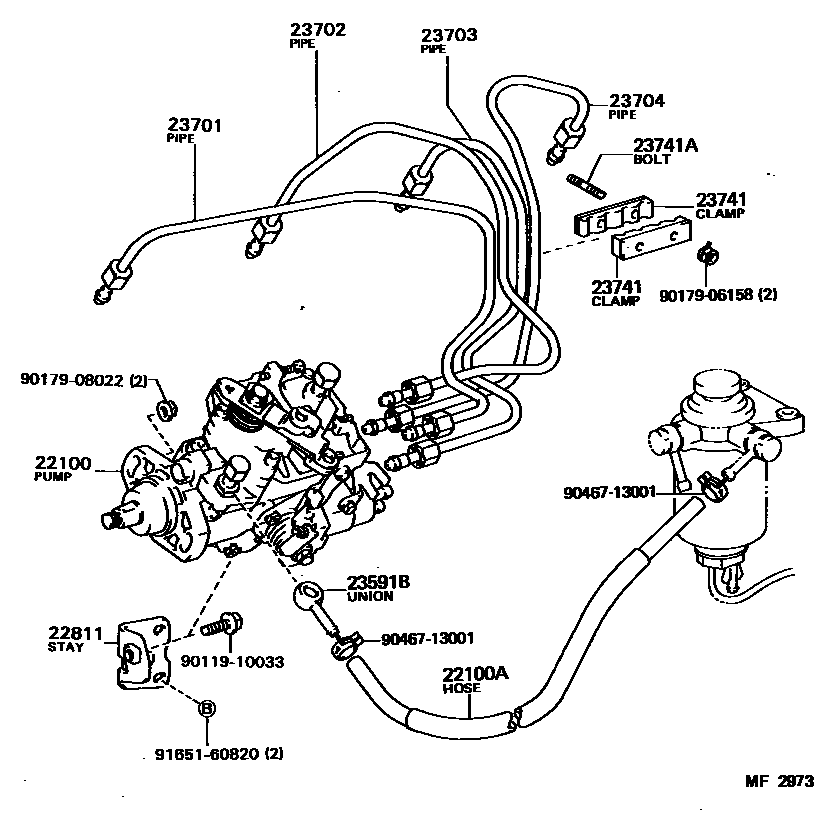

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-64130198210-198508

main22100-64340198210-198508

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-64020198210-198508

22811STAY, INJECTION PUMP, NO.1

main22811-64010198210-198508

23591BUNION(FOR INJECTION PUNP INLET)

main90405-08016198301-198508

main90405-08160198210-198301

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64030198210-198304

main23701-64031198304-198508

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64030198210-198304

main23702-64031198304-198508

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64030198210-198304

main23703-64031198304-198508

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64030198210-198304

main23704-64031198304-198508

23741CLAMP, INJECTION PIPE, NO.1

main23741-64020198210-198508

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main92122-60622198210-198508

9011910033

main90119-10033

9017906158

main90179-06158

9017908022

main90179-08022

9046713001

main90467-13001

9165160820

main91651-60820

15 parts on this diagram · 1 diagram in section
