ALTERNATOR

0001 1 0003 1 0004 1 0005 1 0006 1

27020ALTERNATOR ASSY

main27020-12030i4K..KM20..GEN198302-198508

12V 30A,12V 30A

main27020-13030i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198210

12V 30A

main27020-13050i4K..KM20..VSP..02S;4K..KM20..(03S,05S,08S)..(ARL,EUR)198204-198210

12V 40A

main27020-13060i4K..KM20..05S..ARL; 4K..KM20..4F;4K..KM20..VSP..4H..EUR198210-198302

12V 40A,12V 40A

main27020-64050i1C..CM20198210-198508

12V 40A

main27020-72030i1Y..YM20198402-198508

12V 40A,12V 40A

main27020-72060i2YC..YM21198311-198508

12V 50A,12V 50A

27039COVER, ALTERNATOR REAR END

main27039-11014i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198302

12V 30A

main27039-15030i4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S)197910-197912

12V 40A

main27039-18011i4K..KM20..05S..ARL; 4K..KM20..4F;4K..KM20..VSP..4H..EUR198210-198302

12V 40A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27113-10012i4K..KM20..GEN198302-198508

12V 30A

main27312-57060i1C..CM20198210-198508

12V 40A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S)198101-198108

12V 40A

main27333-57060i1C..CM20198210-198508

12V 40A

main27412-45070i2YC..YM21198311-198508

12V 50A

main90099-19068i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198302

12V 30A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13050i4K..KM20..05S..ARL; 4K..KM20..4F;4K..KM20..VSP..4H..EUR198210-198302

12V 40A

main27310-15060i4K..KM20..GEN198302-198508

12V 30A

main27310-64050i1C..CM20198210-198508

12V 40A

main27310-72030i1Y..YM20198402-198508

12V 40A

main27310-72040i2YC..YM21198311-198401

12V 50A

main27310-72041i2YC..YM21198401-198508

12V 50A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i2YC..YM21198401-198508

12V 50A

main27412-31040i4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S)198101-198108

12V 40A

main27412-56040i4K..KM20..GEN198302-198508

12V 30A

main27412-57060i1C..CM20198210-198508

12V 40A

main27412-63030i1Y..YM20198402-198508

12V 40A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10012i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198302

12V 30A

main90099-10125i2YC..YM21198311-198508

12V 50A

main90099-10126i4K..KM20..05S..ARL; 4K..KM20..4F;4K..KM20..VSP..4H..EUR198210-198302

12V 40A

main90099-10137i1C..CM20198210-198508

12V 40A

main90099-10142i1Y..YM20198402-198508

12V 40A

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02009i4K..KM20..GEN198302-198508

12V 30A

main90099-02209×2i1C..CM20198210-198508

12V 40A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27313-39010i4K..KM20..GEN198302-198508

12V 30A

main27315-57060i1C..CM20198210-198508

12V 40A

27330ROTOR ASSY, ALTERNATOR

main27330-22012i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198302

12V 30A

main27330-26050i4K..KM20..4F;4K..KM20..SRF..4H..EUR198108-198204

12V 40A

main27330-45070i2YC..YM21198311-198508

12V 50A

main27330-56140i1C..CM20198210-198508

12V 40A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S)198101-198108

12V 40A

main90099-10116i2YC..YM21198311-198508

12V 50A

main97110-06201i4K..KM20..GEN198302-198508

12V 30A

27350FRAME ASSY, RECTIFIER END

main27350-12012i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198210

12V 30A

main27350-12030i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S198210-198302

12V 30A

main27350-64050i1C..CM20198210-198508

12V 40A

27350BCONDENSER, ALTERNATOR

main90099-52065i4K..KM20..05S..ARL; 4K..KM20..4F;4K..KM20..VSP..4H..EUR198210-198302

12V 40A

main90099-52066i1C..CM20198210-198508

12V 40A

main90099-52074i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S198210-198302

12V 30A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-24020i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S198210-198302

12V 30A

main27351-38051i4K..KM20..05S..ARL; 4K..KM20..4F;4K..KM20..VSP..4H..EUR198210-198302

12V 40A

main27351-64010i1C..CM20198210-198508

12V 40A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11014i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198210

12V 30A

main27357-12030i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S198210-198302

12V 30A

main27357-15022i2YC..YM21198311-198508

12V 50A

main27357-54190i1C..CM20198309-198508

12V 40A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S)198101-198108

12V 40A

main27359-31090i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198302

12V 30A

main27359-72010i2YC..YM21198311-198508

12V 50A

main27359-72030i1Y..YM20198402-198508

12V 40A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31090i4K..KM20..GEN198302-198508

12V 30A

main27370-54010i1C..CM20198210-198508

12V 40A

27371BRUSH, ALTERNATOR

main27371-31011×2i4K,1Y,2YC..KM20,YM2#197910-198508

12V 30A,40A,50A

main27371-56070×2i1C..CM20198210-198508

12V 40A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i4K,1Y,2YC..KM20,YM2#197910-198508

12V 30A,40A,50A

main27372-56070i1C..CM20198210-198508

12V 40A

27410STATOR ASSY, ALTERNATOR

main27410-11014i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198302

12V 30A

main27410-15030i4K..KM20..VSP..02S;4K..KM20..(03S,05S,08S)..(ARL,EUR)198204-198210

12V 40A

main27410-41080i2YC..YM21198311-198508

12V 50A

main27410-54190i1C..CM20198309-198508

12V 40A

main27410-57060i1C..CM20198210-198309

12V 40A

27411PULLEY, ALTERNATOR

main27411-12030i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S198210-198302

12V 30A

main27411-13030i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198210

12V 30A

main27411-26111i4K..KM20..4F;4K..KM20..SRF..4H..EUR198108-198204

12V 40A

main27411-31042i4K..KM20..05S..ARL; 4K..KM20..4F;4K..KM20..VSP..4H..EUR198210-198302

12V 40A

main27411-64040i1C..CM20198210-198508

12V 40A

main27411-72040i1Y,2YC..YM2#198311-198508

12V 40A,50A

27441FAN, ALTERNATOR

main27441-31090i4K..KM20..GEN198302-198508

12V 30A

main27441-34030i1Y..YM20198402-198508

12V 40A

main27441-56090i1C..CM20198210-198508

12V 40A

main27441-63030i2YC..YM21198311-198508

12V 50A

2737831050INSULATOR, ALTERNATOR, NO.1

main27378-31050

2738712030INSULATOR, TERMINAL

main27387-12030

2738731011INSULATOR, TERMINAL

main27387-31011

2744724061CLIP, ALTERNATOR CORD

main27447-24061

9009900862

main90099-00862

9009901423

main90099-01423

9009904808

main90099-04808

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010108164

main90101-08164

9011908023

main90119-08023

9017906158

main90179-06158

9017908061

main90179-08061

9044014001

main90440-14001

9451101400

main94511-01400

9461210800

main94612-10800

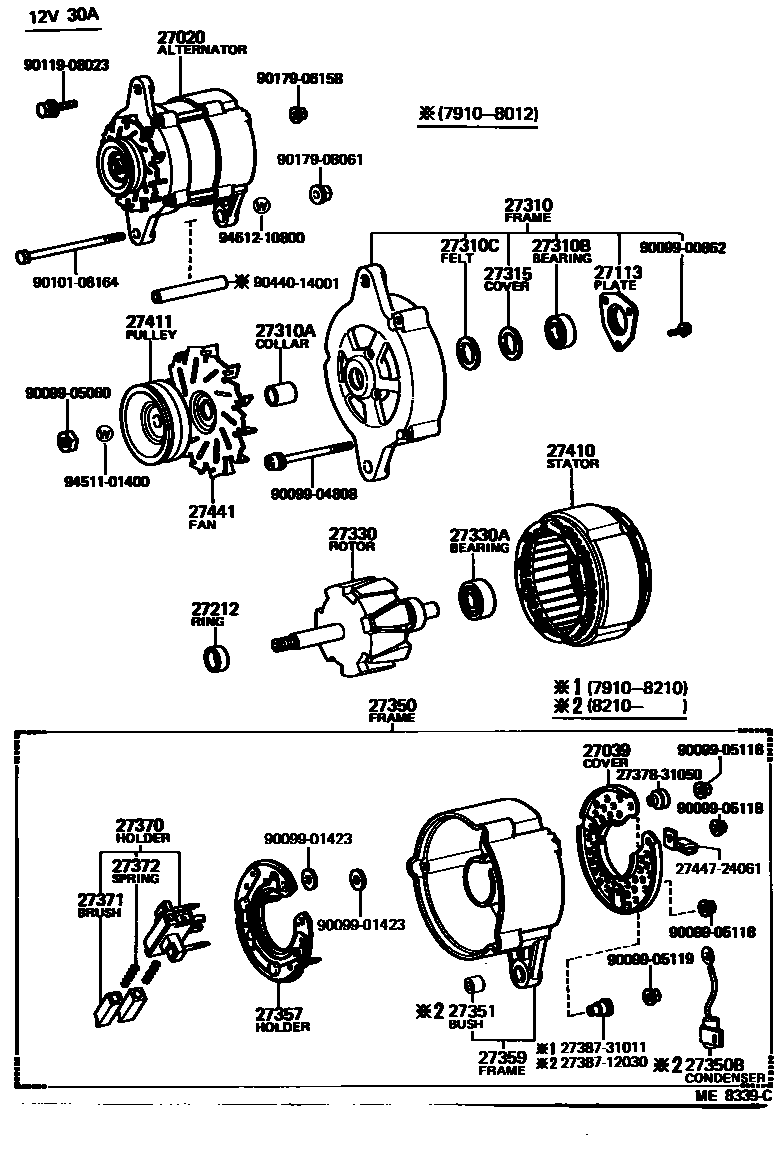

39 parts on this diagram · 5 diagrams in section
