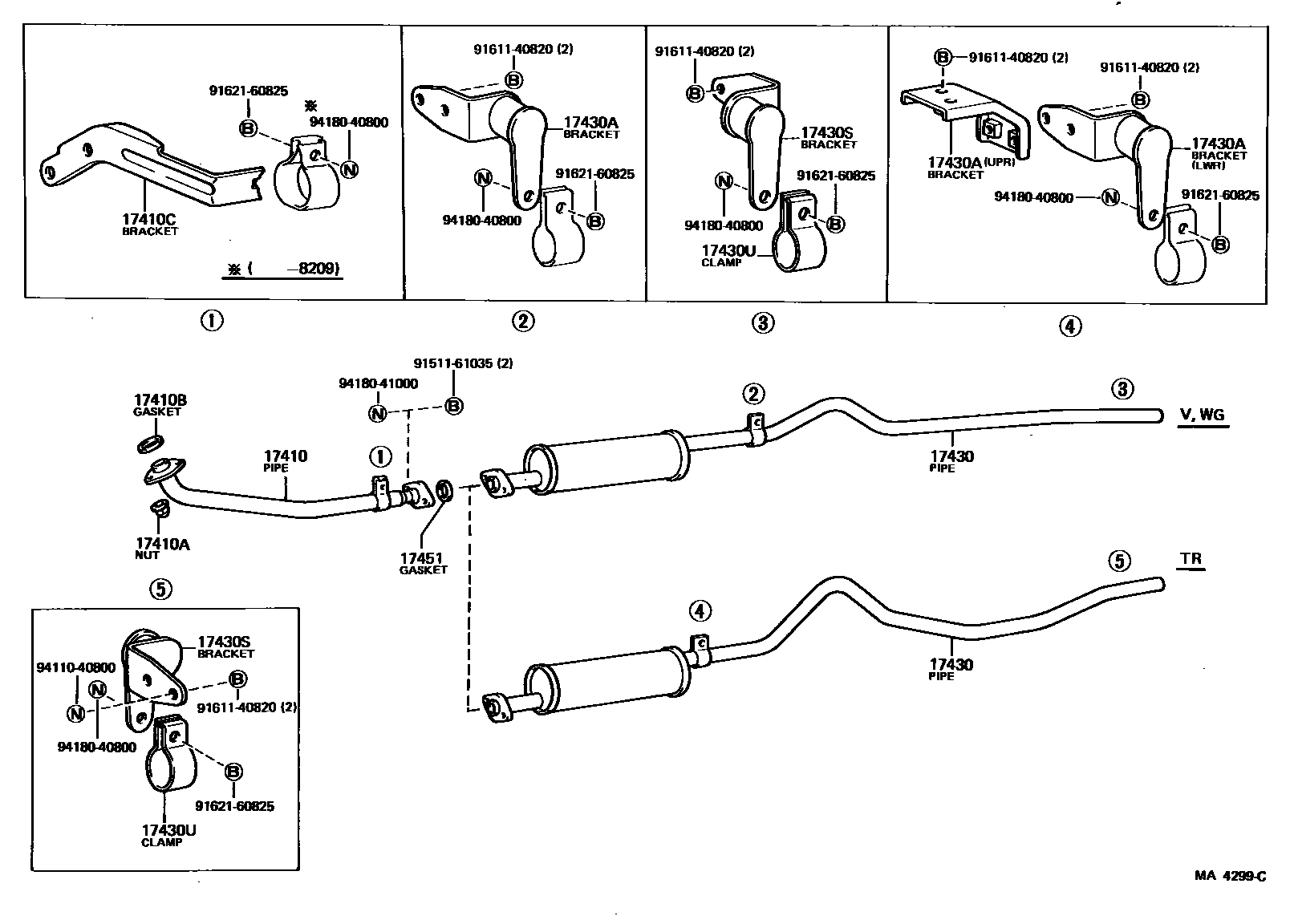

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-24070i4K..KM20197910-198508

main17401-64040i1C..CM20198210-198305

main17401-64041i1C..CM20198305-198508

main17401-71020i1Y..YM20198402-198508

main17401-72060i2YC..YM21198311-198508

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010×3i1C,4K,1Y,2YC..CM20,KM20,YM2#197910-198508

17410BGASKET, EXHAUST PIPE

main90917-06004i1C..CM20198210-198508

main90917-06012i4K..KM20197910-198508

main90917-06026×2i1Y,2YC..YM2#198311-198508

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17561-64030i1C..CM20198305-198508

main17571-24150i4K..KM20197910-198508

main17571-72010i1Y..YM20198402-198508

main17571-72030i2YC..YM21198311-198508

17430PIPE ASSY, EXHAUST, TAIL

main17405-13070i4K..KM20..ARL198401-198402

main17405-13071i4K..KM20..ARL198402-198508

main17405-24060i4K..KM20..TR197910-198210

main17405-24080i4K..KM20..RHD..(HRF,SRF)197910-198210

main17405-24081i4K..KM20..RHD198210-198401

main17405-24100i4K..KM20..V..4F;4K..KM20..LHD..GEN198108-198210

main17405-24120i4K..KM20..08S198108-198210

main17430-13240i4K..KM20..LHD..V4D..EUR198210-198508

SWITZERLAND SPEC

main17430-71020i1C..CM20198210-198508

main17430-71140i1Y..YM20198402-198508

main17430-72090i2YC..YM21198311-198508

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17562-24120i4K..KM20..TR; 4K..KM20..VSP..02S;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

LWR

main17562-24121i4K..KM20198210-198508

main17566-71010i1C,1Y,2YC..CM20,YM2#; 4K..KM20..V4D..4F198210-198508

LH,SWITZERLAND SPEC

main17572-13040i4K..KM20..V4D..4F198210-198508

RH,SWITZERLAND SPEC

main17572-24100i4K..KM20..TR197910-198210

UPR

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17563-24120i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198210

main17563-24121i1C,4K,1Y,2YC..CM20,KM20,YM2#198210-198508

17430UCLAMP NO.1, EXHAUST TAILPIPE (FOR REAR)

main90461-23026i1C,1Y,2YC..CM20,YM2#; 4K..KM20..V4D..4F198210-198508

SWITZERLAND SPEC

main90461-23072i4K..KM20197910-198508

17451GASKET, EXHAUST PIPE

main90917-06001i1C,4K,1Y..CM20,KM20,YM20197910-198508

main90917-06004i2YC..YM21198311-198508

9151161035

main91511-61035

9161140820

main91611-40820

9162160825

main91621-60825

9411040800

main94110-40800

9418040800

main94180-40800

9418041000

main94180-41000

15 parts on this diagram · 3 diagrams in section
