CAMSHAFT & VALVE
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5,L=15,OD=5
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-22010i4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)197910-198108
N=36
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523BWASHER, PLATE(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
13613PPULLEY, INJECTION PUMP DRIVE
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02023i4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)197910-198102
13711BSPRING, COMPRESSION(FOR INNER)
WD=4.2,CW=6.5
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
CHINA SPEC
CHINA SPEC
13741RETAINER, VALVE SPRING
EXHAUST
INTAKE
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
STD
STD
O/S 0.05
O/S 0.05
13753SHIM, VALVE ADJUSTING
T=2.20,T=2.200
T=2.25,T=2.250
T=2.30,T=2.300
T=2.35,T=2.350
T=2.40,T=2.400
T=2.45,T=2.450
T=2.50,T=2.500
T=2.55,T=2.550
T=2.60,T=2.600
T=2.65,T=2.650
T=2.70,T=2.700
T=2.75,T=2.750
T=2.80,T=2.800
T=2.85,T=2.850
T=2.90,T=2.900
T=2.95,T=2.950
T=3.00,T=3.000
T=3.05,T=3.050
T=3.10,T=3.100
T=3.15,T=3.150
T=3.20,T=3.200
T=3.25,T=3.250
T=3.30,T=3.300
T=3.35,T=3.350
T=3.40,T=3.400
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
*8-1.25PX53-15
9010512048
main90105-12048
9010512097
main90105-12097

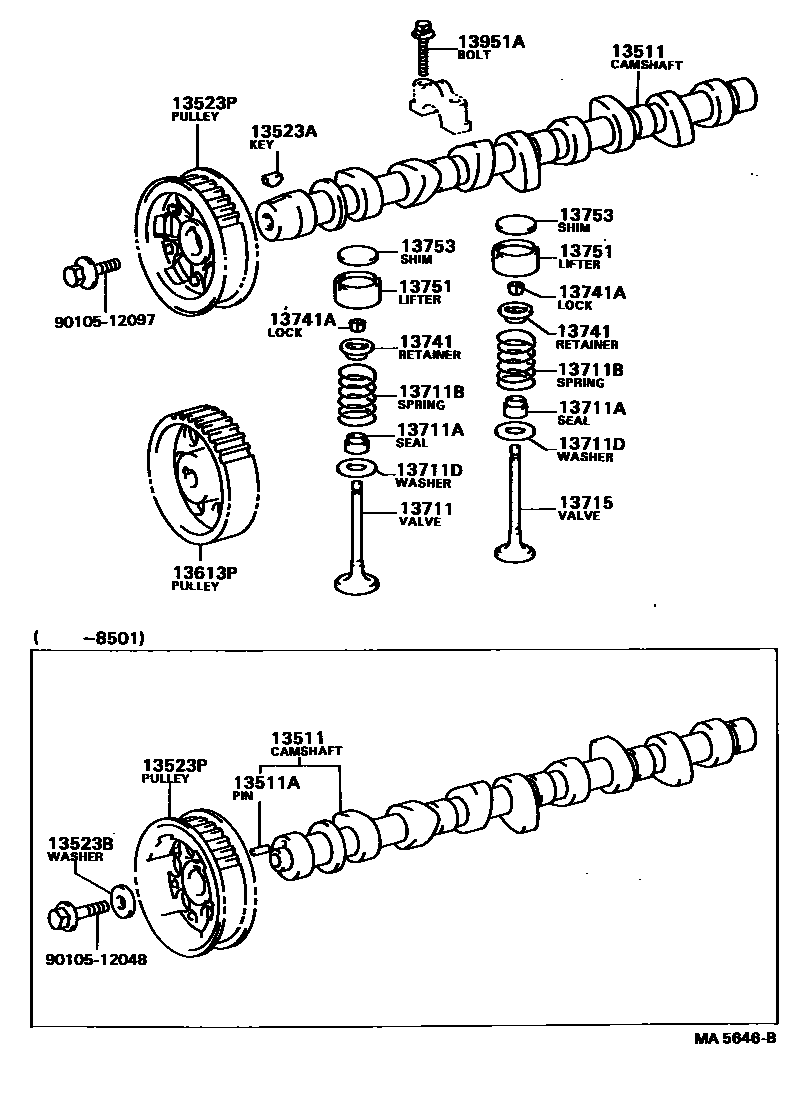

20 parts on this diagram · 3 diagrams in section
