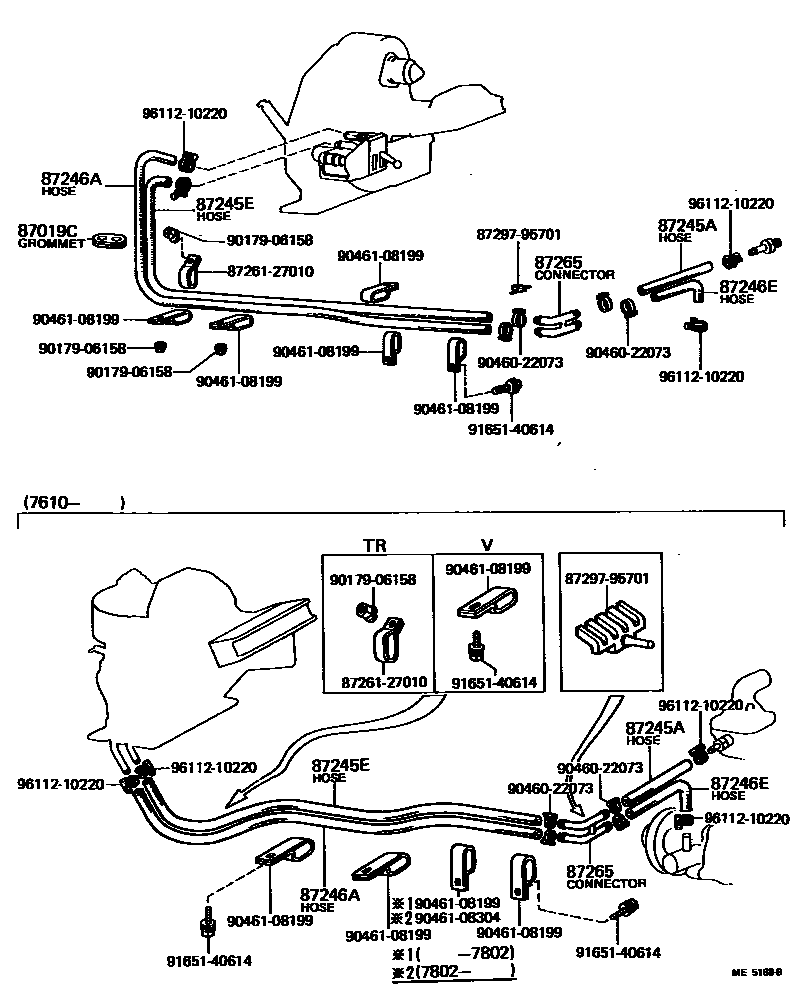

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-01243iKM10..SRF197105-197607

87245AHOSE, HEATER WATER, INLET A

main90445-21412iKM10..WG197105-197107

L=165

main99551-20150iKM10..WG197112-197303

L=150

main99551-20165iKM10..WG197107-197112

L=165

main99552-20150iKM10..SRF197303-197607

L=150

87245EHOSE, HEATER WATER, INLET E

main90445-21249iKM10..WG197105-197107

L=1400

main99551-21360iKM10..WG197112-197303

L=1360

main99551-21400iKM10..WG197107-197112

L=1400

main99552-21060iKM11..T3197802-197909

L=1060

main99552-21080iKM11..V197804-197909

L=1080

main99552-21100iKM11..V197802-197804

L=1100

main99552-21360iKM10197607-197610

L=1360

87246AHOSE, HEATER WATER, OUTLET A

main90445-21249iKM10..WG197105-197107

L=1400

main99551-21400iKM10..WG197107-197303

L=1400

main99552-21060iKM11..T3197802-197909

L=1060

main99552-21080iKM11..V197804-197909

L=1080

main99552-21100iKM11..V197802-197804

L=1100

main99552-21400iKM10197607-197610

L=1400

87246EHOSE, HEATER WATER, OUTLET E

main90445-21412iKM10..WG197105-197107

L=165

main99551-20165iKM10..WG197107-197303

L=165

main99552-20165iKM10..SRF197303-197607

*H,L=165

87265CONNECTOR, HEATER WATER HOSE

main87248-27010iKM10..SRF197105-197607

8726127010BRACKET, HEATER PUMP

main87261-27010

8729795701ROD, HEATER AIR DAMPER

main87297-95701

9017906158

main90179-06158

9046022073

main90460-22073

9046108199

main90461-08199

9046108304

main90461-08304

9165140614

main91651-40614

9611210220

main96112-10220

14 parts on this diagram · 1 diagram in section
