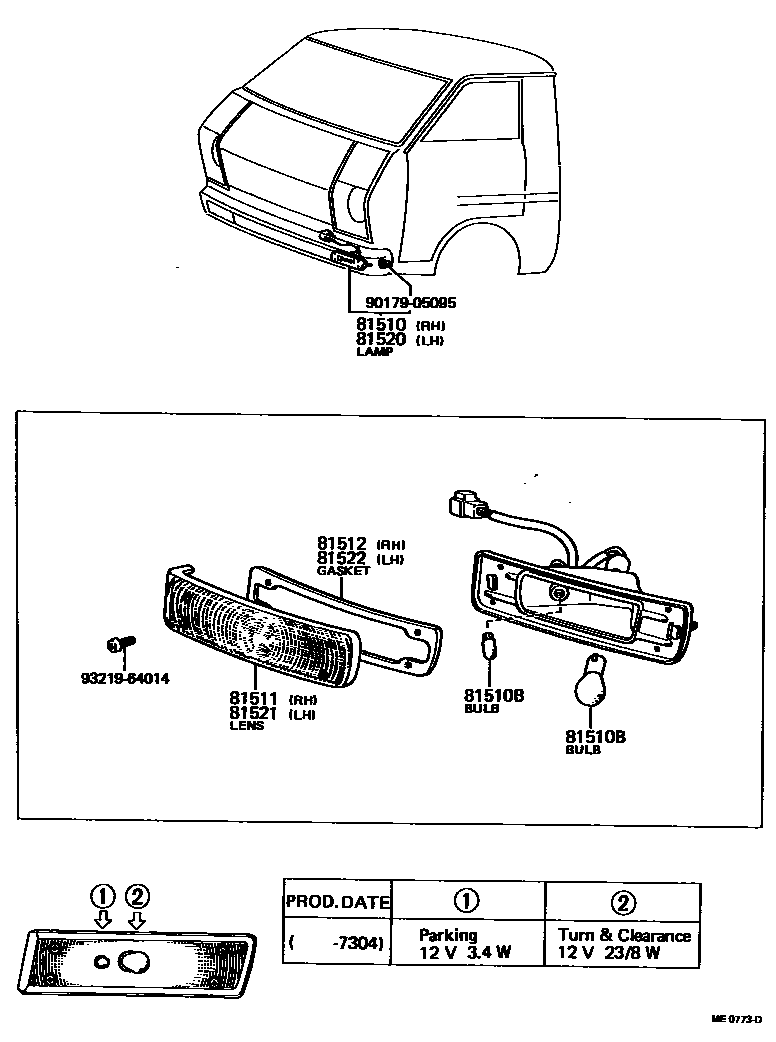

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-29165iKM10197105-197304

AMBER

main81510-29166iKM10197304-197511

AMBER

main81510-29167iKM1#197511-197909

AMBER

main81510-29185iKM10197105-197304

CLEAR

main81510-29186iKM10197304-197511

CLEAR

main81510-29187iKM1#197511-197909

CLEAR

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-12007×2iKM10197304-197511

12V 7/3.4W

main99132-11050×2iKM1#197511-197909

12V 5W,12V 5W

main99132-11230×2iKM1#197304-197909

12V 23W,12V 23W

main99132-12034×2iKM10197105-197304

12V 3.4W,12V 3.4W

main99132-21230×2iKM10197105-197304

12V 23/8W,12V 23/8W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-27010iKM10197105-197304

AMBER

main81511-27011iKM1#197304-197909

AMBER

main81511-27020iKM10197105-197304

CLEAR

main81511-27021iKM1#197304-197909

CLEAR

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-27010iKM10197105-197304

main81512-27011iKM1#197304-197909

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-29165iKM10197105-197304

AMBER

main81520-29166iKM10197304-197511

AMBER

main81520-29167iKM1#197511-197909

AMBER

main81520-29185iKM10197105-197304

CLEAR

main81520-29186iKM10197304-197511

CLEAR

main81520-29187iKM1#197511-197909

CLEAR

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-27010iKM10197105-197304

AMBER

main81521-27011iKM1#197304-197909

AMBER

main81521-27020iKM10197105-197304

CLEAR

main81521-27021iKM1#197304-197909

CLEAR

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81522-27010iKM10197105-197304

main81522-27011iKM1#197304-197909

9017905095

main90179-05095

9321964014

main93219-64014

9 parts on this diagram · 2 diagrams in section
