SEAT BELT

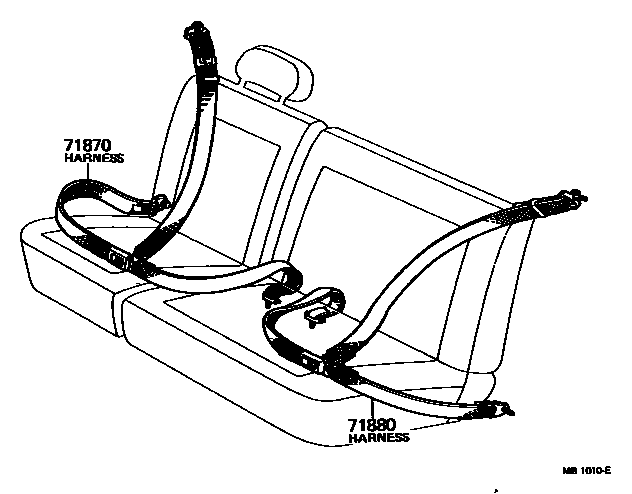

Parts diagram
71870HARNESS ASSY, FRONT SEAT 3 POINT TYPE, RH
main71870-95700-01i197105-197511
BLACK,BLACK
main71870-95702i197511-197610
main71870-95702-01i197610-197802
BLACK,BLACK
71880HARNESS ASSY, FRONT SEAT 3 POINT TYPE, LH
main71880-95700-01i197105-197511
BLACK,BLACK
main71880-95702i197511-197610
main71880-95702-01i197610-197802
BLACK,BLACK

2 parts on this diagram · 2 diagrams in section
