SEPARATION DOOR PANEL & GLASS

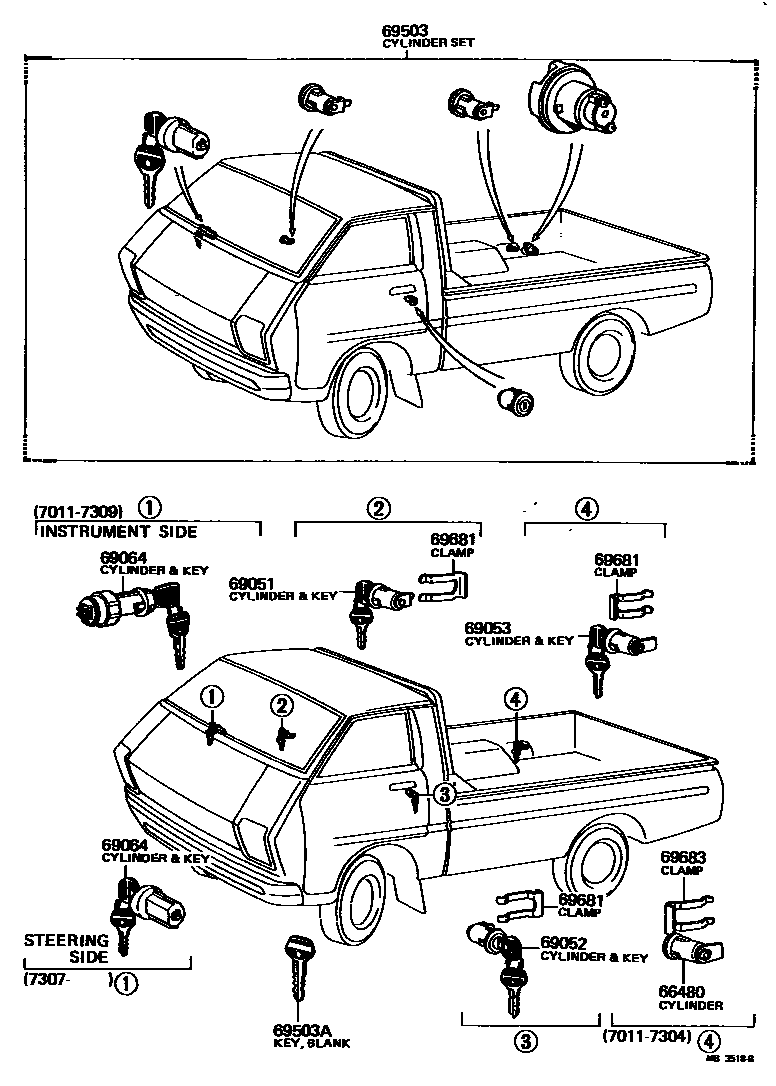

Parts diagram
66480CYLINDER ASSY, FUEL DOOR
main66480-87401i197105-197304
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-27010i197105-197309
sub69051-27020
main69051-27020i197309-197610
sub69051-95700
main69051-95700i197610-197909
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-27010i197105-197309
sub69052-27020
main69052-27020i197309-197610
sub69052-95700
main69052-95700i197610-197909
69053CYLINDER & KEY SET, FUEL INLET LOCK
main69053-27010i197304-197309
main69053-27020i197309-197408
sub69058-87401
69064CYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-20010i197610-197909
W/STEERING LOCK
sub69057-25010
main69057-26010i197312-197511
W/STEERING LOCK
main69057-27010i197312-197610
L/STEERING LOCK
sub69064-26020
main69057-95700i197610-197909
L/STEERING LOCK
main69064-26010i197309-197312
L/STEERING LOCK
sub69064-26020
main69064-60010i197309-197312
W/STEERING LOCK
sub69064-26030
main84045-27010i197105-197309
69503CYLINDER SET, LOCK
main69005-27010i197607-197610
main69005-87401i197610-197909
L/STEERING LOCK
main69005-87402i197610-197909
W/STEERING LOCK
main69503-27030i197105-197309
main69503-27040i197105-197304
sub69503-27020
main69503-27060i197304-197309
main69503-27080i197304-197309
main69503-27120i197309-197312
L/STEERING LOCK
sub69503-27121
main69503-27121i197312-197408
L/STEERING LOCK
main69503-27130i197309-197312
L/STEERING LOCK
sub69503-27131
main69503-27131i197312-197408
L/STEERING LOCK
main69503-27140i197309-197312
L/STEERING LOCK
sub69503-27141
main69503-27141i197312-197610
L/STEERING LOCK
main69503-27160i197309-197312
W/STEERING LOCK
sub69503-27161
main69503-27161i197312-197511
W/STEERING LOCK
sub69503-27151
main69503-27180i197309-197312
W/STEERING LOCK
sub69503-27181
main69503-27181i197312-197408
W/STEERING LOCK
main69503-27200i197309-197312
W/STEERING LOCK
sub69503-27201
main69503-27201i197312-197408
W/STEERING LOCK
main69503-95702i197610-197909
W/STEERING LOCK
main69503-95705i197610-197909
L/STEERING LOCK
69503AKEY, BLANK
main90999-00027i197105-197309
FOR FUEL CAP
main90999-00027i197105-197309
FOR DOOR & IGNITION
main90999-00054i197304-197305
FOR FUEL CAP
sub90999-00066
main90999-00054i197309-197610
sub90999-00066
main90999-00066i197610-197909
MASTER KEY
sub90999-00085
69681CLAMP, DOOR LOCK CYLINDER & SLEEVE
main69681-20010i197105-197511
sub69681-20040
main69681-20040i197511-197909
69683CLAMP, FUEL LOCK CYLINDER
main69681-20010i197105-197408
sub69681-20040

9 parts on this diagram · 2 diagrams in section
