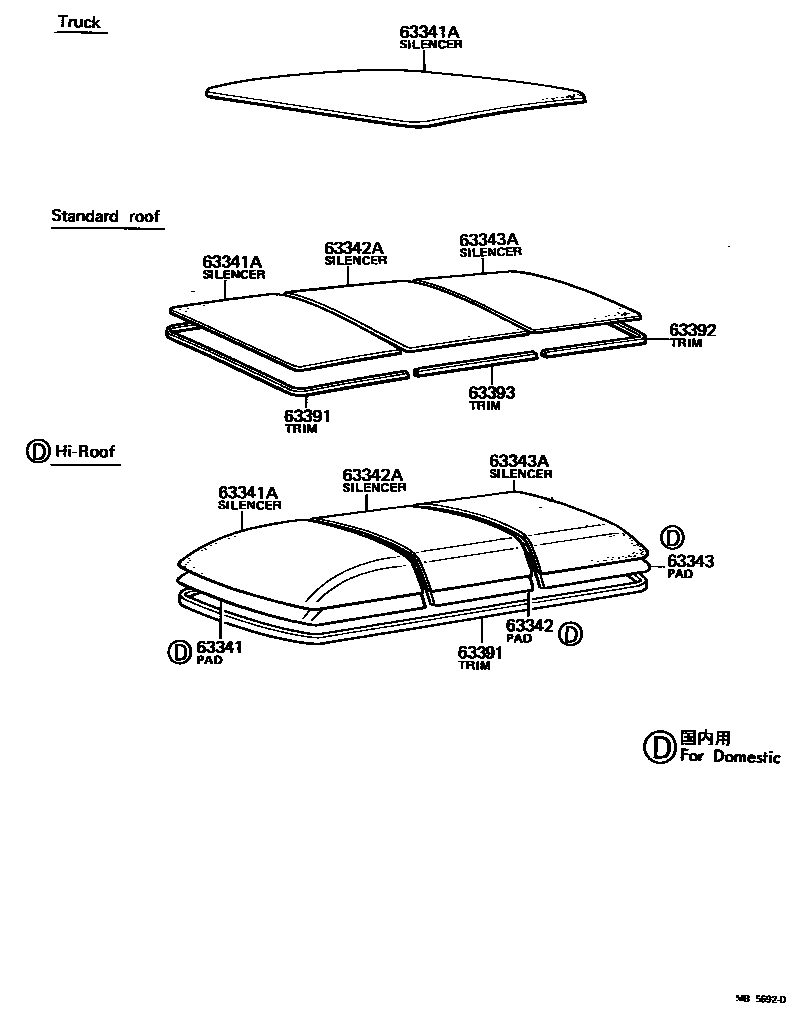

ROOF HEADLINING & SILENCER PAD

63341PAD, ROOF SILENCER, NO.1

main63341-87401

main63341-87402

main63341-95700

main63341-95703

main63341-95704

main63341-95706

63341ASILENCER, ROOF, NO.1

main63341-87401-03iKM10..TR197105-197307

LIGHT GRAY,GRAY

main63341-87402-13iKM1#..T3197607-197909

LIGHT GRAY,GRAY

main63341-95700-13iKM10..SRF197105-197601

LIGHT GRAY,GRAY

main63341-95703iKM1#..SRF197601-197909

main63341-95704iKM10..HRF197607-197711

main63341-95706iKM1#..HRF197711-197909

63342PAD, ROOF SILENCER, NO.2

main63342-95700

main63342-95701

main63342-95705

main63342-95706

63342ASILENCER, ROOF, NO.2

main63342-95700-03iKM1#..V..SRF197105-197909

LIGHT GRAY,GRAY

main63342-95701-13iKM10..WG197105-197408

LIGHT GRAY,GRAY

main63342-95705iKM10..HRF197607-197711

main63342-95706iKM1#..HRF197711-197909

63343PAD, ROOF SILENCER, NO.3

main63343-95700

main63343-95701

main63343-95705

main63343-95706

63343ASILENCER, ROOF, NO.3

main63343-95700-03iKM1#..V..SRF197105-197909

LIGHT GRAY,GRAY

main63343-95701-13iKM10..WG197105-197408

LIGHT GRAY,GRAY

main63343-95705iKM10..HRF197607-197711

main63343-95706iKM1#..HRF197711-197909

63391TRIM, ROOF HEADLINING, FRONT

main63391-95701iKM10..WG197105-197408

63392TRIM, ROOF HEADLINING, REAR

main63393-95700iKM10..WG197105-197408

63393TRIM, ROOF HEADLINING, CENTER

main63392-95700iKM10..WG197105-197408

LH.

main63394-95700iKM10..WG197105-197408

RH.

9 parts on this diagram · 1 diagram in section
